Create a PowerPoint presentation titled 'Understanding the Ammeter: Measuring Electric Current'. Slide 1: Title Slide - Title: 'Understanding the Ammeter' - Subtitle: Measuring Electric Current in Circuits - Include an image of an ammeter or electric circuit. Slide 2: Introduction - Define what an ammeter is. - Explain its purpose: measuring electric current in a circuit. - Mention that current is measured in amperes (A) or milliamperes (mA). Slide 3: Importance of an Ammeter - Used to monitor power usage. - Detects circuit faults (overload, insufficient current). - Helps understand voltage-current-resistance relationships. Slide 4: How an Ammeter Works - Principle: Electromagnetic deflection. - When current flows through a coil, it interacts with a magnetic field. - The coil moves the needle proportionally to the current. - Analogy: like a compass needle reacting to Earth’s magnetic field. Slide 5: Key Concept - Higher current → stronger magnetic field → greater needle deflection. - Lower current → weaker magnetic field → smaller needle deflection. Slide 6: Activity 1: Measuring Current in Series Circuit - Describe connecting ammeter in series. - Example: resistors 10kΩ, 5.1kΩ, 1kΩ in series. - Observation: Removing resistors decreases resistance, increases current. Slide 7: Activity 2: Function of Adjustable Resistor - Variable resistor adjusts current. - Ammeter shows current change as slider moves. Slide 8: Activity 3: Meter Deflect by Motor - Fan (motor) spins → acts as generator. - Faster spin → more current → higher needle deflection. Slide 9: Activity 4: Capacitor Charging and Discharging - Charging: ammeter shows rise then drop in current. - Discharging: ammeter shows brief opposite current. - Demonstrates dynamic current behavior. Slide 10: Activity 5: Music-Driven Ammeter - Circuit includes alarm IC, resistor, and ammeter. - Ammeter shows current flow as sound signals are generated. - Demonstrates current variations due to sound signal patterns. Slide 11: Summary - Ammeter is key to understanding electric circuits. - Demonstrates relationship between resistance, voltage, and current. - Essential for learning and troubleshooting circuits.
Explores ammeters for measuring electric current via electromagnetic deflection. Covers importance, key concepts, and activities: series circuits, adjustable resistors, motors, capacitors, and music-d
This title slide is headed "Understanding the Ammeter." Its subtitle describes it as "Measuring Electric Current in Circuits."
Measuring Electric Current in Circuits
Source: Understanding the Ammeter: Measuring Electric Current

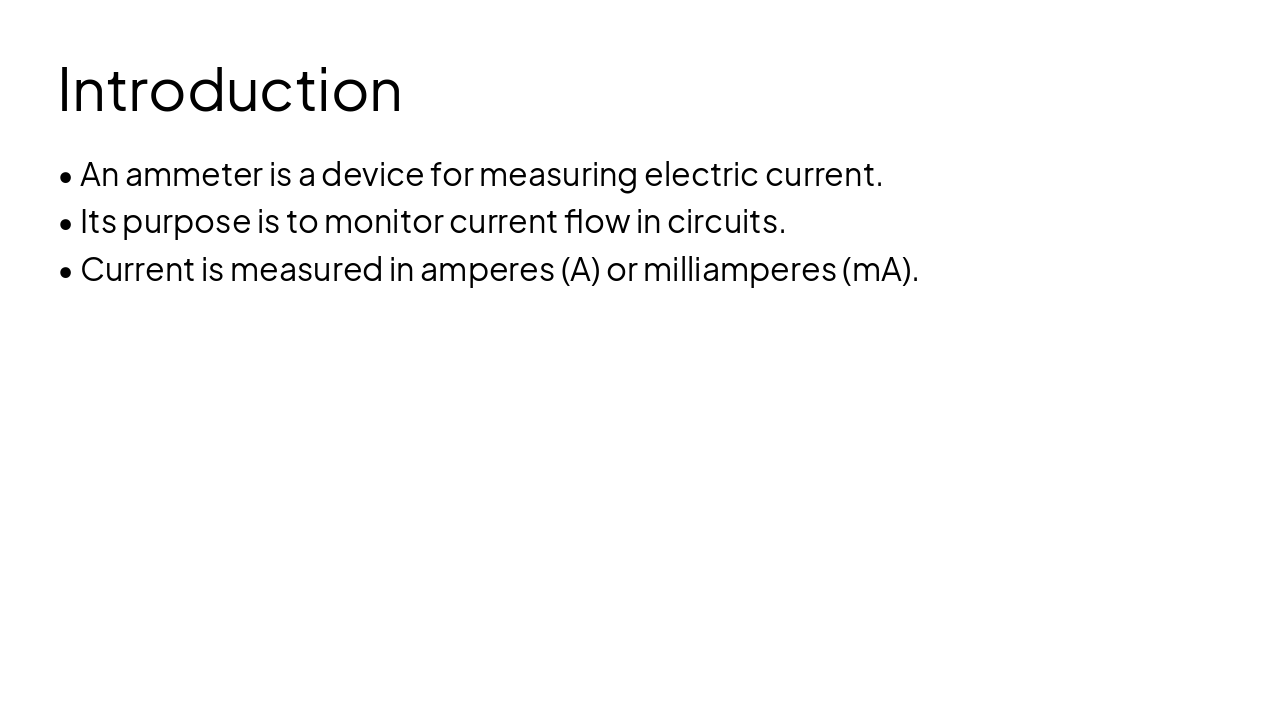

This introductory slide defines an ammeter as a device for measuring electric current in circuits. It specifies that current is measured in amperes (A) or milliamperes (mA).

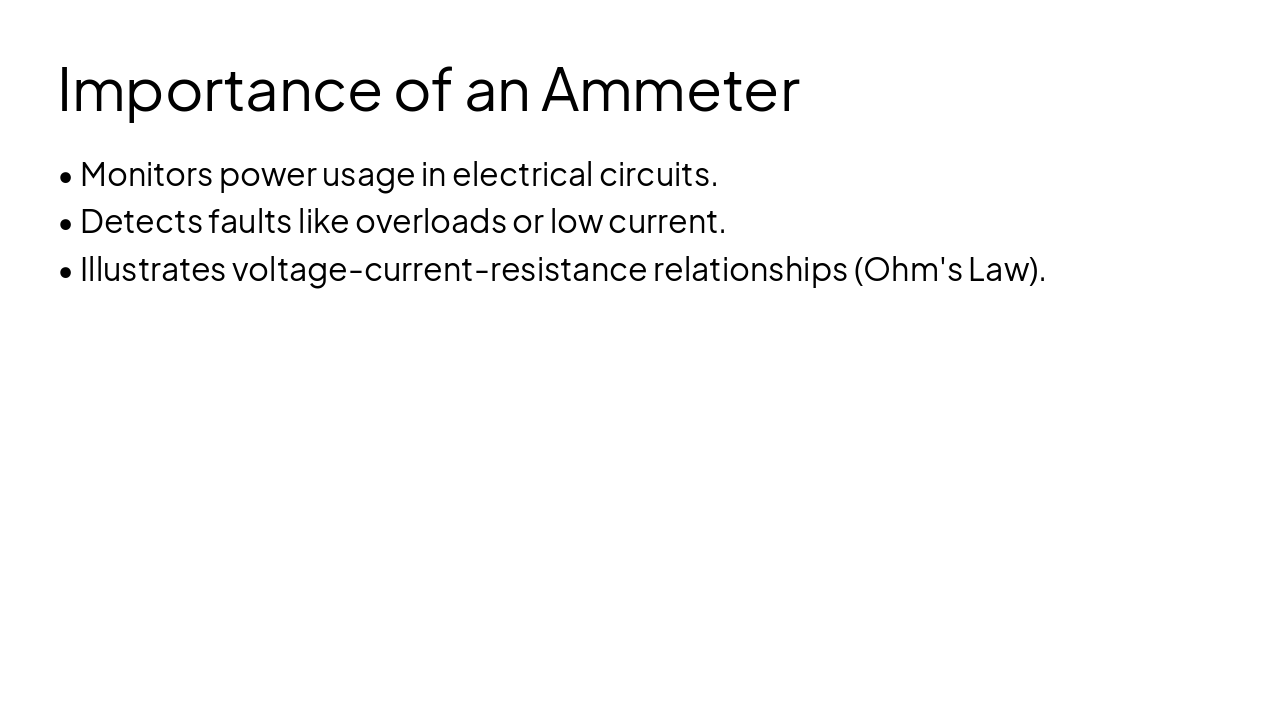

The "Importance of an Ammeter" slide outlines its key roles in electrical circuits. It monitors power usage, detects faults like overloads or low current, and illustrates Ohm's Law relationships.

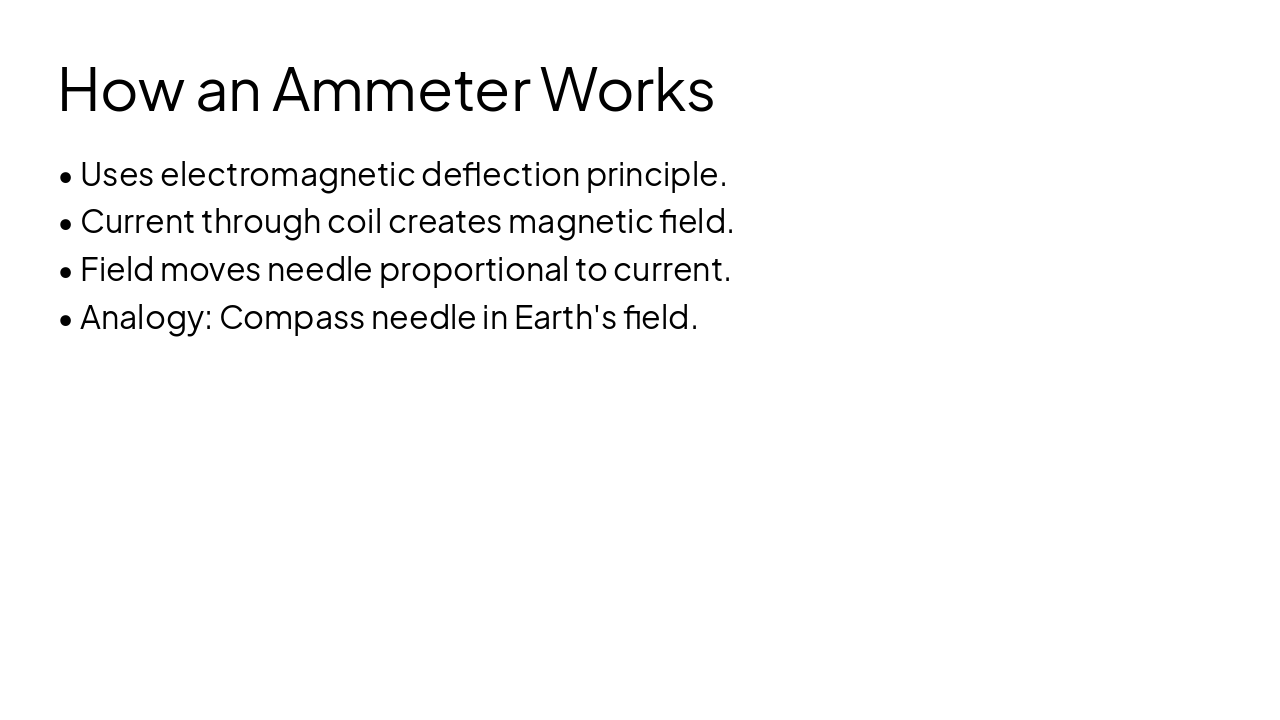

An ammeter operates on the electromagnetic deflection principle, where current flowing through a coil generates a magnetic field. This field deflects a needle proportionally to the current, akin to a compass needle in Earth's magnetic field.
Higher current generates a stronger magnetic field, resulting in greater deflection, while lower current produces a weaker field and smaller deflection. The slide highlights the direct proportional relationship between current and deflection.
This section header introduces "Activity 1: Series Circuit" on understanding the ammeter. It directs connecting the ammeter in series with 10kΩ, 5.1kΩ, and 1kΩ resistors, where removing resistors lowers total resistance and increases current.
01

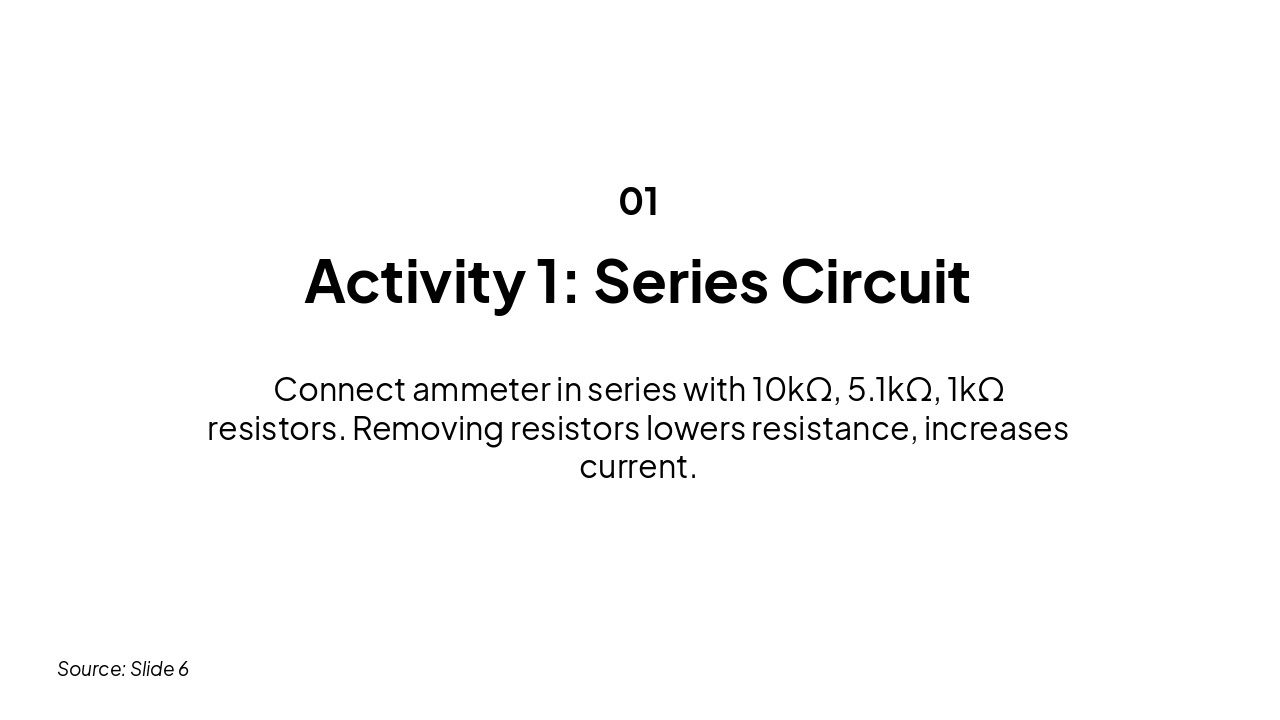

Connect ammeter in series with 10kΩ, 5.1kΩ, 1kΩ resistors. Removing resistors lowers resistance, increases current.
Source: Slide 6

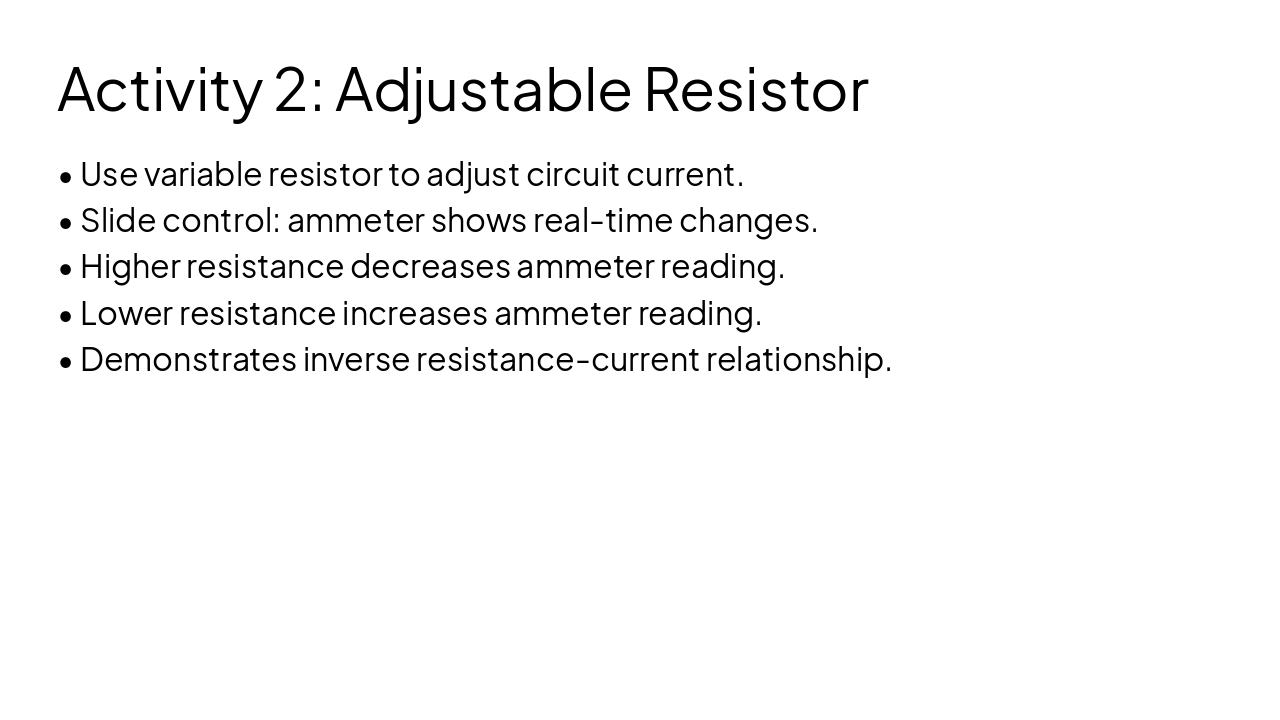

In Activity 2, use a variable resistor to adjust circuit current, with the ammeter showing real-time changes as you slide the control. Higher resistance decreases the ammeter reading, while lower resistance increases it, demonstrating the inverse resistance-current relationship.

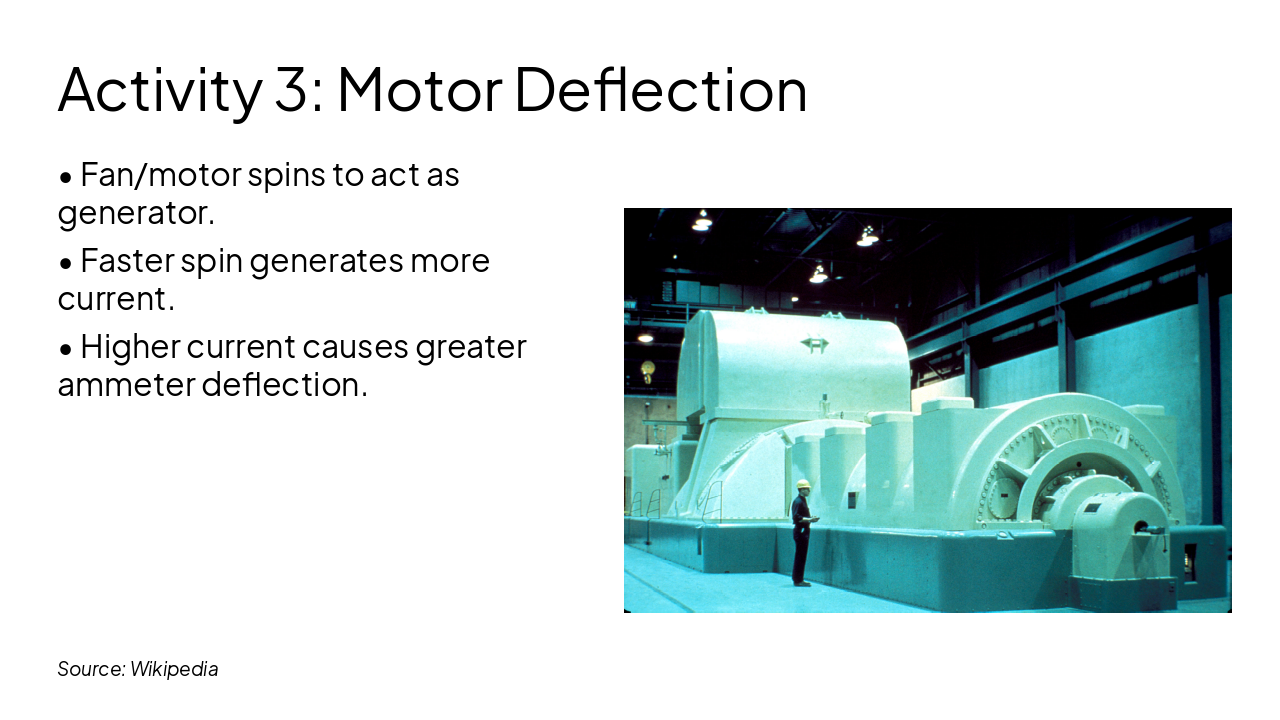

This slide for Activity 3: Motor Deflection depicts a fan or motor spinning to act as a generator. Faster spinning generates more current, causing greater deflection on the ammeter.
Source: Wikipedia
The timeline depicts capacitor charging starting at t=0s with the switch closed, where current rises rapidly, peaks and decays exponentially by t=0.5s, and reaches zero at t=2s when fully charged. Discharge initiates at t=2.1s as the switch flips, producing a brief reverse current spike on the ammeter.
t=0s: Charging Switch Closed Ammeter needle rises rapidly as capacitor begins charging from power source. t=0.5s: Current Peaks and Falls Current reaches maximum value then exponentially decays toward zero. t=2s: Capacitor Fully Charged Current drops completely to zero; capacitor holds steady charge. t=2.1s: Discharge Initiated Switch flipped; brief reverse current spike appears on ammeter.
Source: Understanding the Ammeter: Measuring Electric Current
Activity 5 demonstrates a circuit using an Alarm IC, resistor, and ammeter driven by music. Sound signals create varying current, making the ammeter needle dance to music patterns and illustrating audio-driven fluctuations.

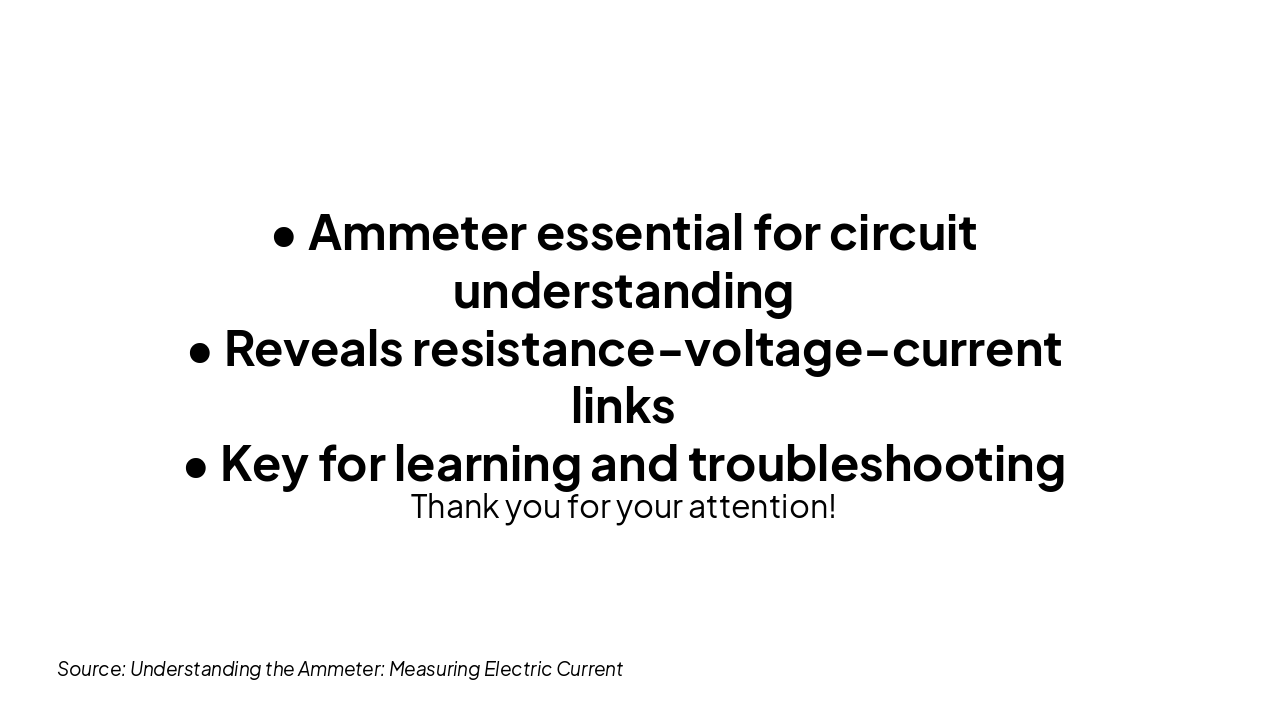

The conclusion slide emphasizes the ammeter's essential role in circuit understanding, revealing resistance-voltage-current relationships, and aiding learning and troubleshooting. It ends with "Thank you for your attention!"
• Ammeter essential for circuit understanding
Thank you for your attention!
Source: Understanding the Ammeter: Measuring Electric Current
