Slide 1 of 10

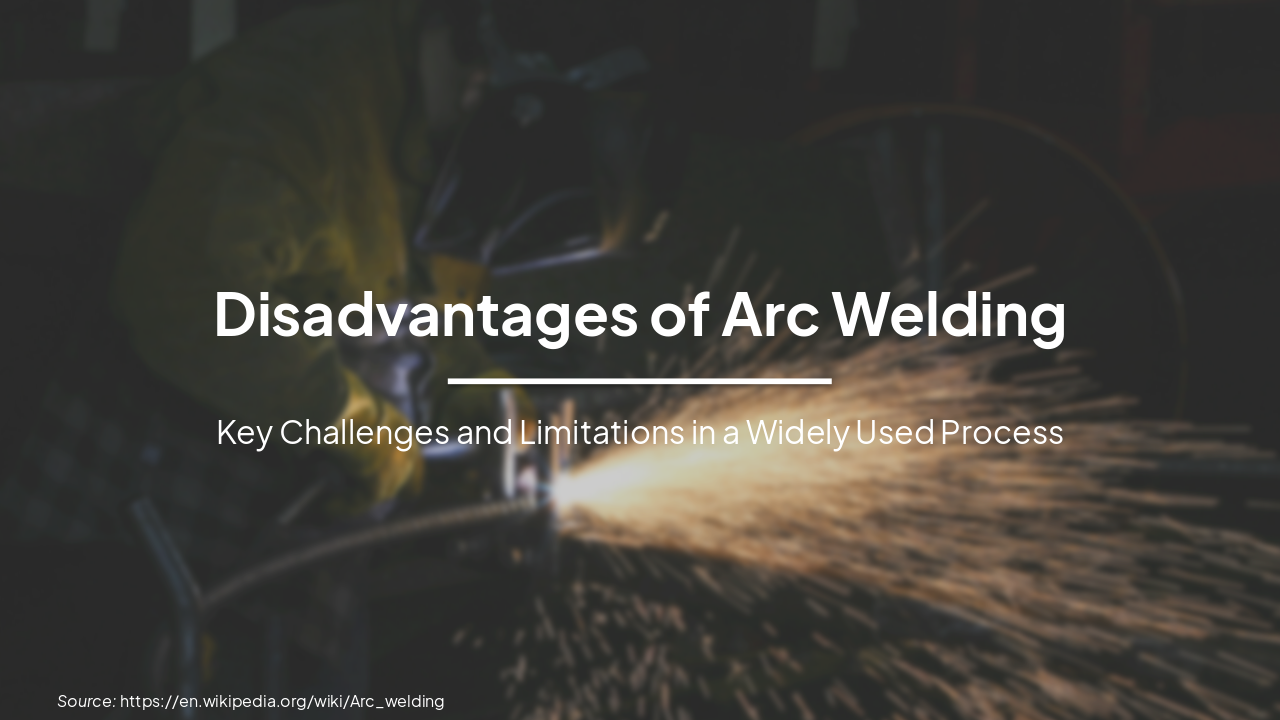

Slide 1 - Disadvantages of Arc Welding
Disadvantages of Arc Welding
Key Challenges and Limitations in a Widely Used Process
---
Photo by Glenn Hansen on Unsplash
Source: https://en.wikipedia.org/wiki/Arc_welding
Disadvantages of Arc Welding: Key Challenges
Generated from prompt:
make a presentation about the disadvantages of arc welding
This presentation outlines the core disadvantages of arc welding, including high skill complexity (e.g., TIG), slower speeds, specialized equipment needs, shielding requirements, and safety hazards like burns and shocks. Includes process overview and
March 3, 202610 slides
Slide 2 of 10

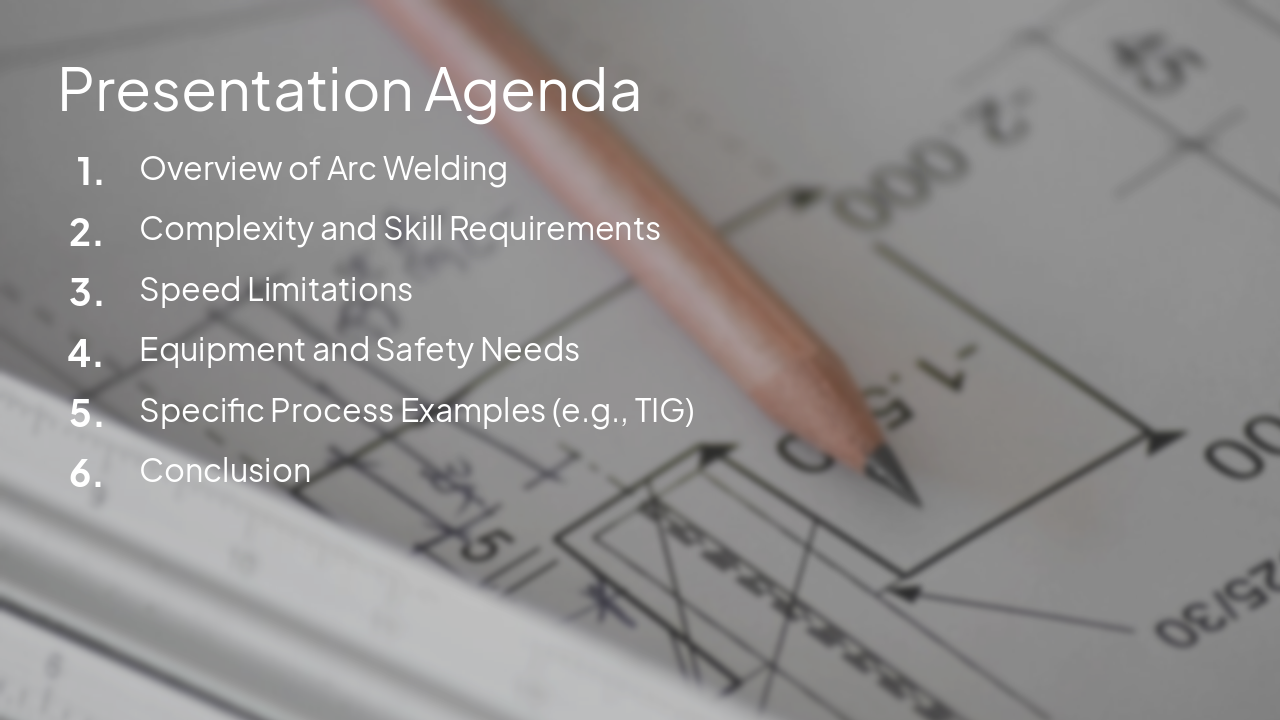

Slide 2 - Presentation Agenda
- Overview of Arc Welding
- Complexity and Skill Requirements
- Speed Limitations
- Equipment and Safety Needs
- Specific Process Examples (e.g., TIG)
- Conclusion
---
Photo by Sven Mieke on Unsplash
Slide 3 of 10

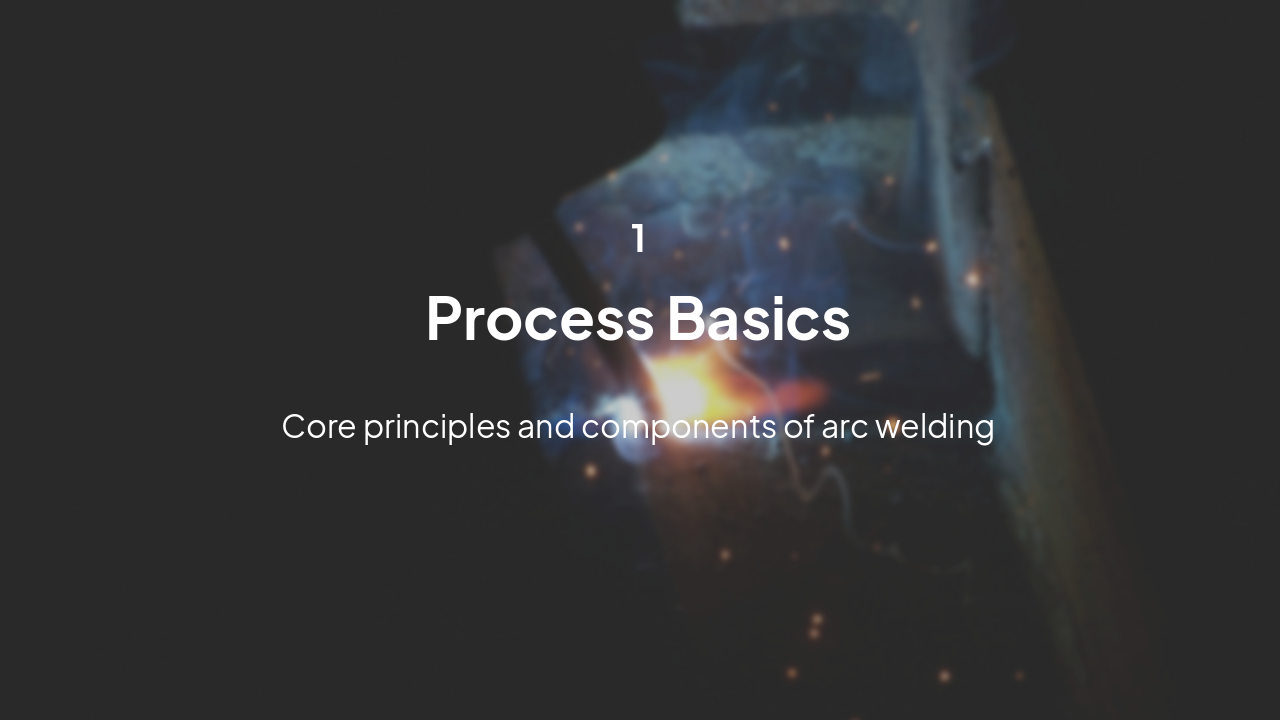

Slide 3 - Understanding Arc Welding
1
Process Basics
Core principles and components of arc welding
---
Photo by Daniel Vergeles on Unsplash
Slide 4 of 10

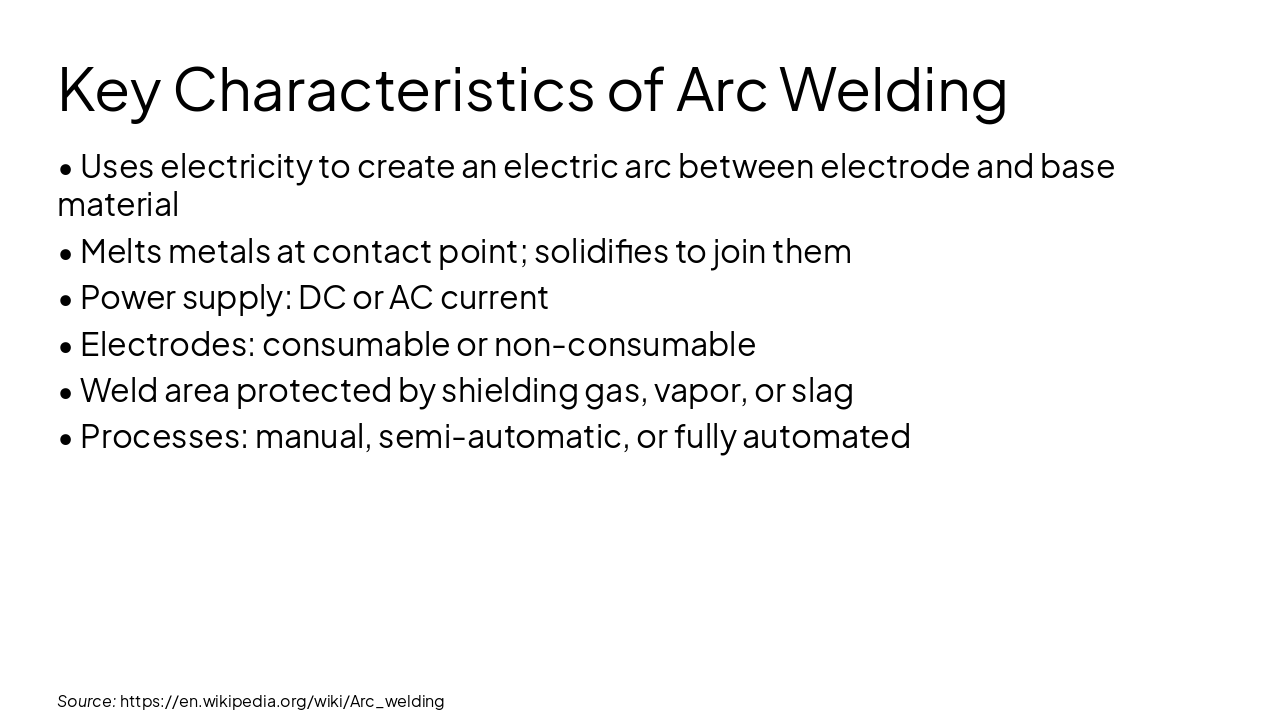

Slide 4 - Key Characteristics of Arc Welding
- Uses electricity to create an electric arc between electrode and base material
- Melts metals at contact point; solidifies to join them
- Power supply: DC or AC current
- Electrodes: consumable or non-consumable
- Weld area protected by shielding gas, vapor, or slag
- Processes: manual, semi-automatic, or fully automated
Source: https://en.wikipedia.org/wiki/Arc_welding
Slide 5 of 10

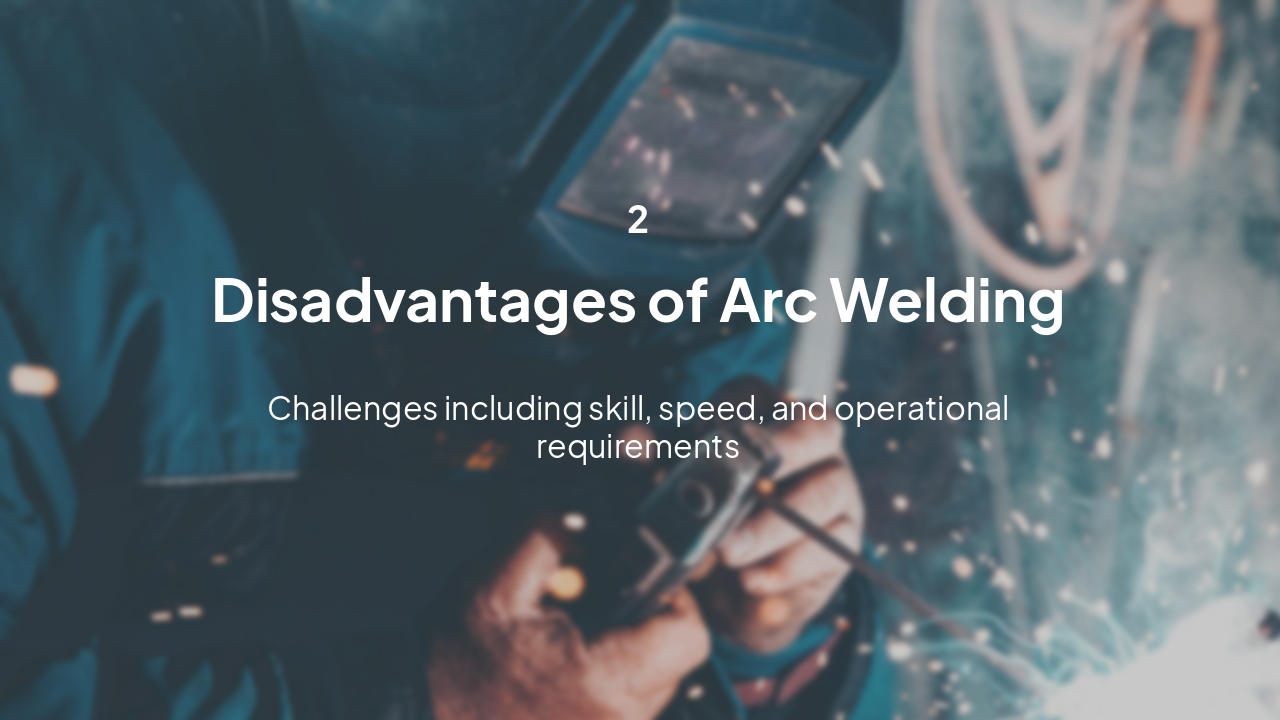

Slide 5 - Core Disadvantages
2
Disadvantages of Arc Welding
Challenges including skill, speed, and operational requirements
---
Photo by Christopher Burns on Unsplash
Slide 6 of 10

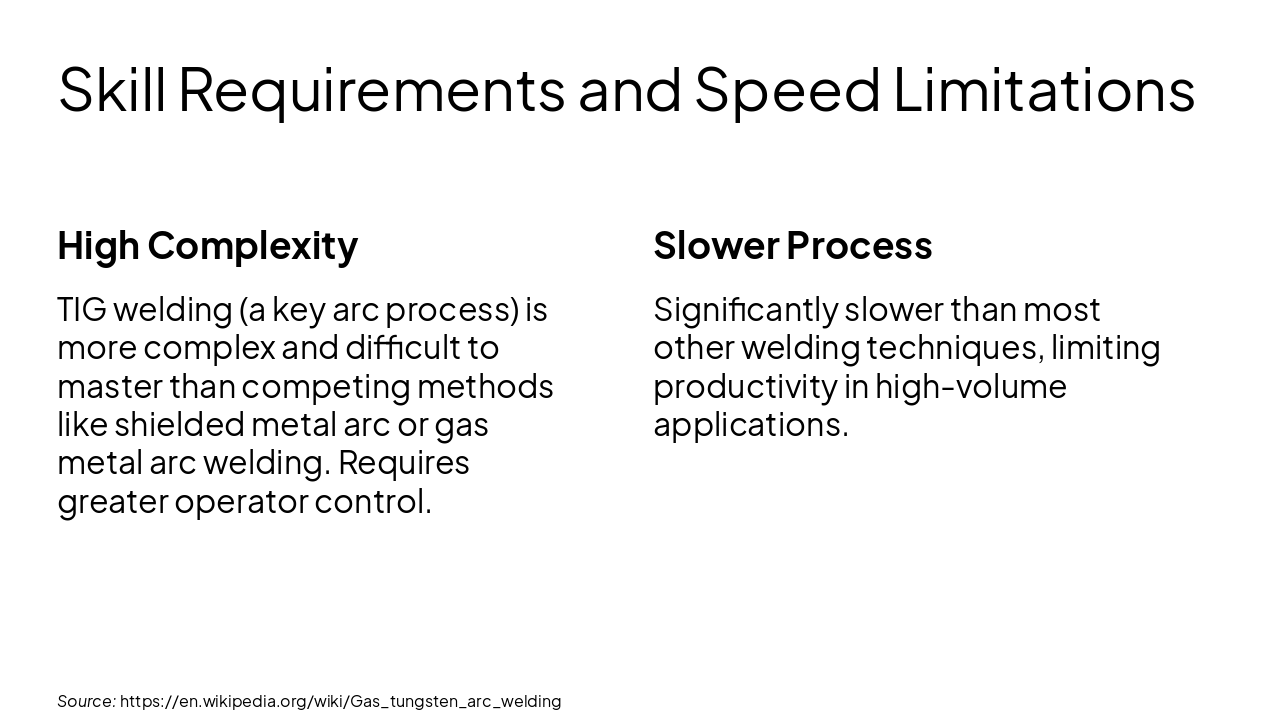

Slide 6 - Skill Requirements and Speed Limitations
High Complexity TIG welding (a key arc process) is more complex and difficult to master than competing methods like shielded metal arc or gas metal arc welding. Requires greater operator control.
Slower Process Significantly slower than most other welding techniques, limiting productivity in high-volume applications.
Source: https://en.wikipedia.org/wiki/Gas_tungsten_arc_welding
Slide 7 of 10

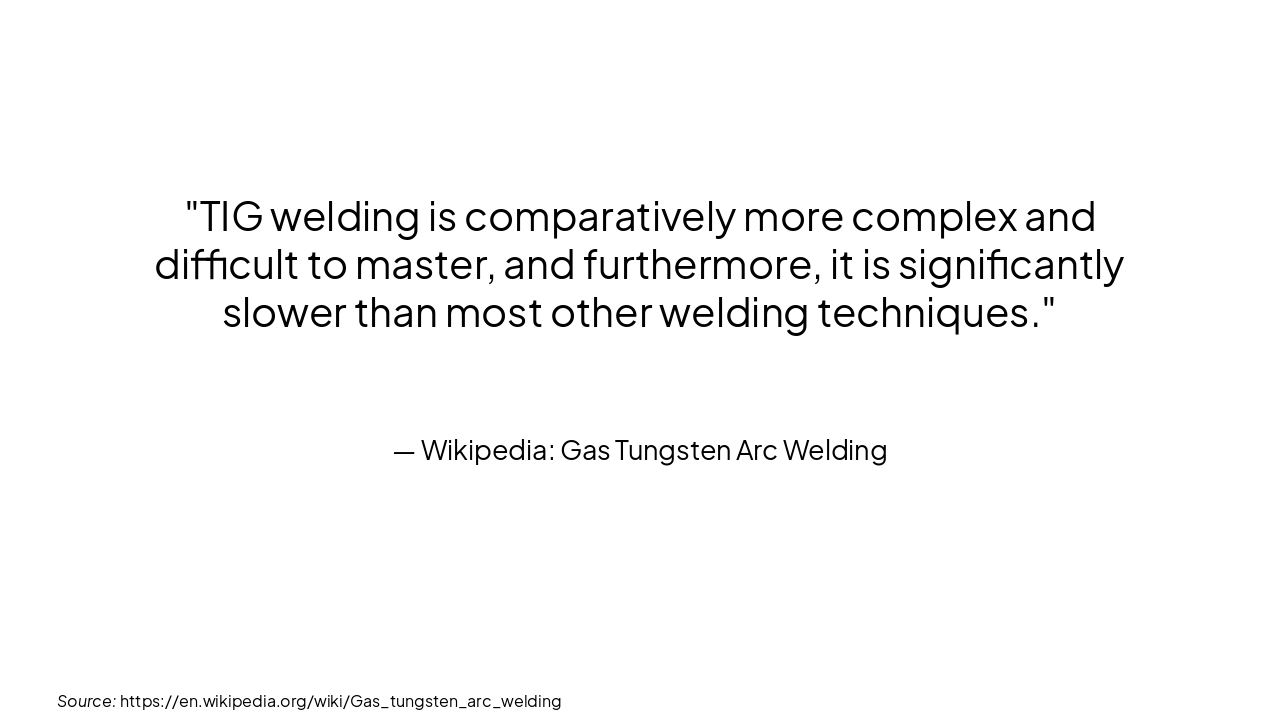

Slide 7 - Challenges in TIG Welding (Arc Variant)
> TIG welding is comparatively more complex and difficult to master, and furthermore, it is significantly slower than most other welding techniques.
— Wikipedia: Gas Tungsten Arc Welding
Source: https://en.wikipedia.org/wiki/Gas_tungsten_arc_welding
Slide 8 of 10

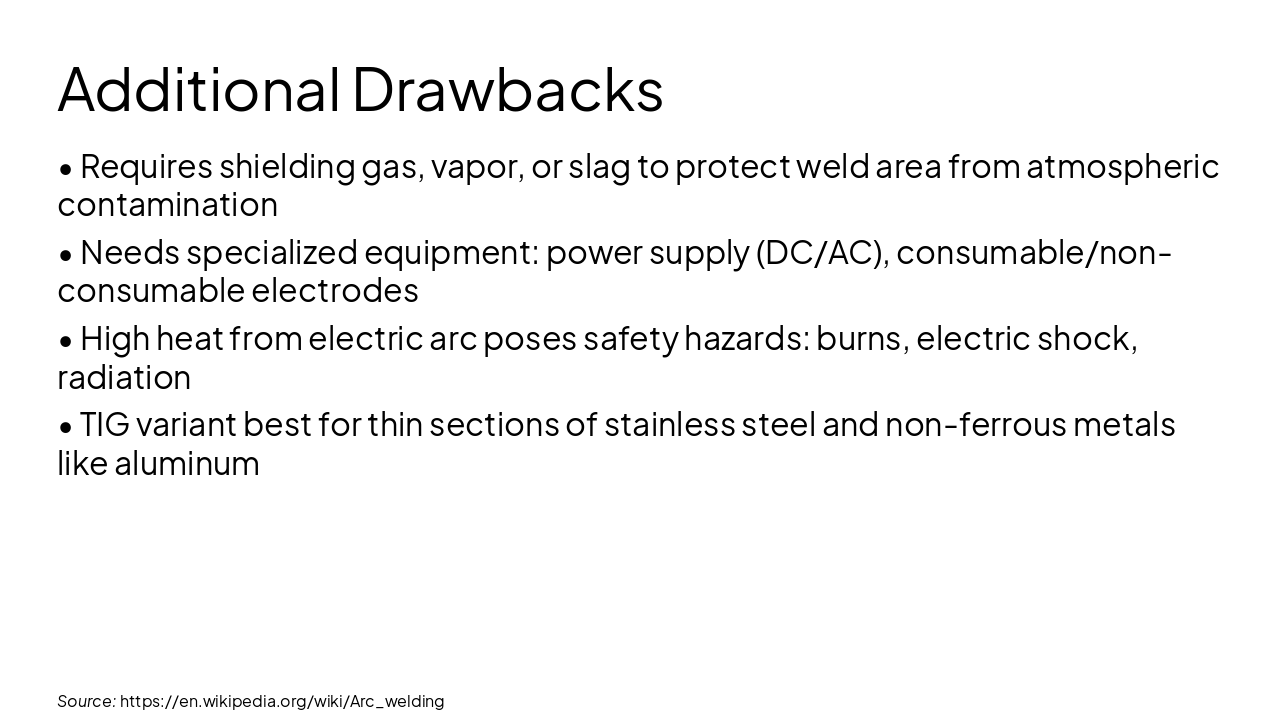

Slide 8 - Additional Drawbacks
- Requires shielding gas, vapor, or slag to protect weld area from atmospheric contamination
- Needs specialized equipment: power supply (DC/AC), consumable/non-consumable electrodes
- High heat from electric arc poses safety hazards: burns, electric shock, radiation
- TIG variant best for thin sections of stainless steel and non-ferrous metals like aluminum
Source: https://en.wikipedia.org/wiki/Arc_welding
Slide 9 of 10

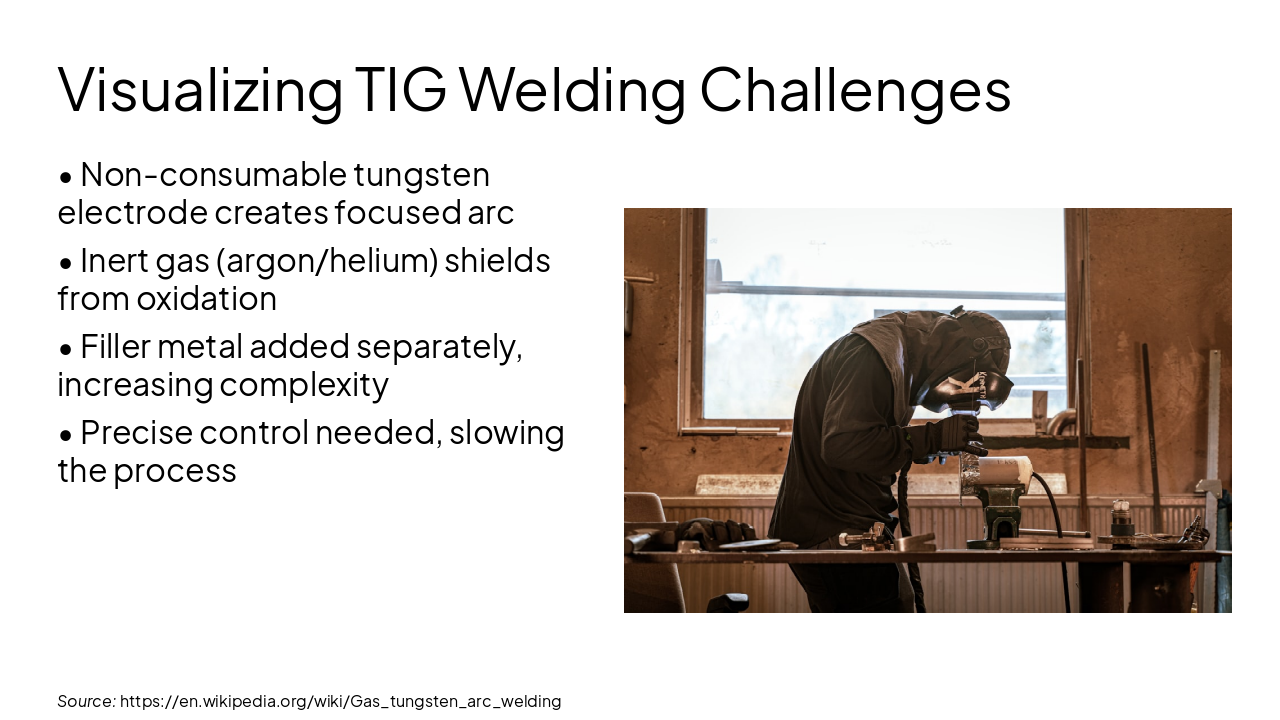

Slide 9 - Visualizing TIG Welding Challenges
- Non-consumable tungsten electrode creates focused arc
- Inert gas (argon/helium) shields from oxidation
- Filler metal added separately, increasing complexity
- Precise control needed, slowing the process
---
Photo by Jimmy Nilsson Masth on Unsplash
Source: https://en.wikipedia.org/wiki/Gas_tungsten_arc_welding
Slide 10 of 10

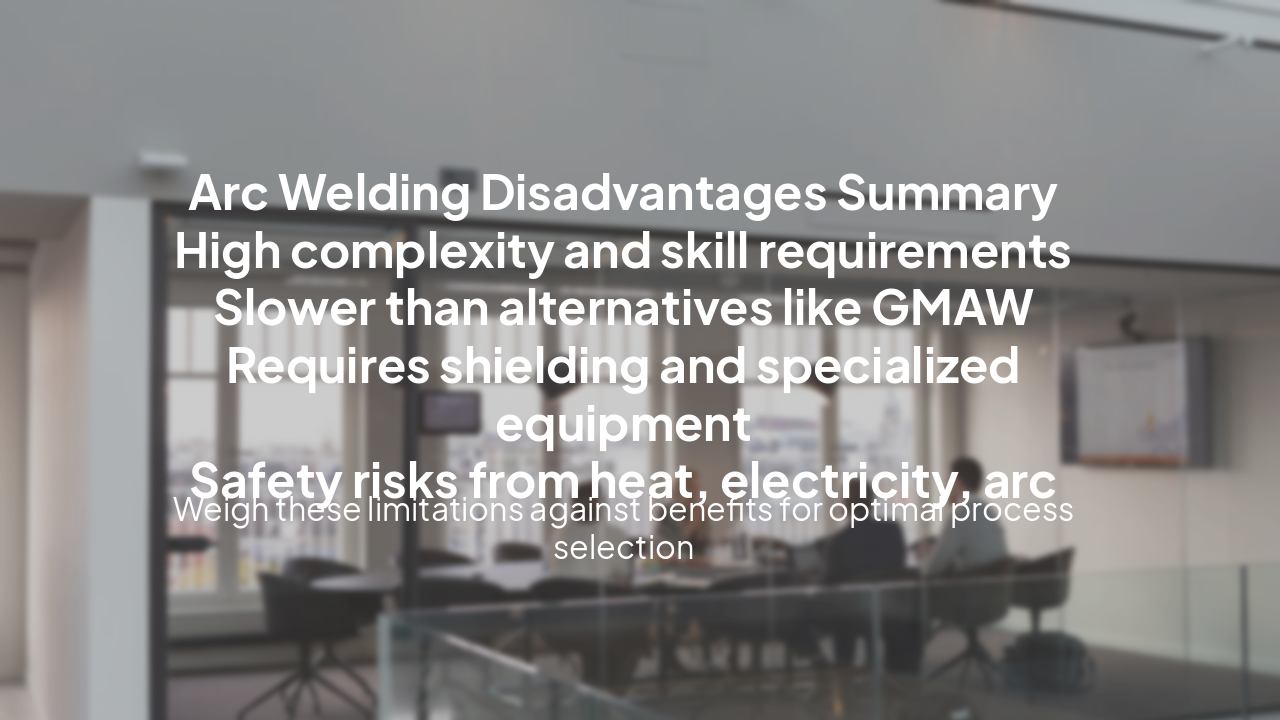

Slide 10 - Conclusion
Arc Welding Disadvantages Summary High complexity and skill requirements Slower than alternatives like GMAW Requires shielding and specialized equipment Safety risks from heat, electricity, arc
Weigh these limitations against benefits for optimal process selection
---
Photo by Rodeo Project Management Software on Unsplash
