This title slide features the topic "Refrigeration in Mechanical Engineering." It includes a subtitle crediting the presentation to Y. Dhedeepya.
Presented by Y. Dhedeepya
Source: Background image: cooling system diagram or refrigerator

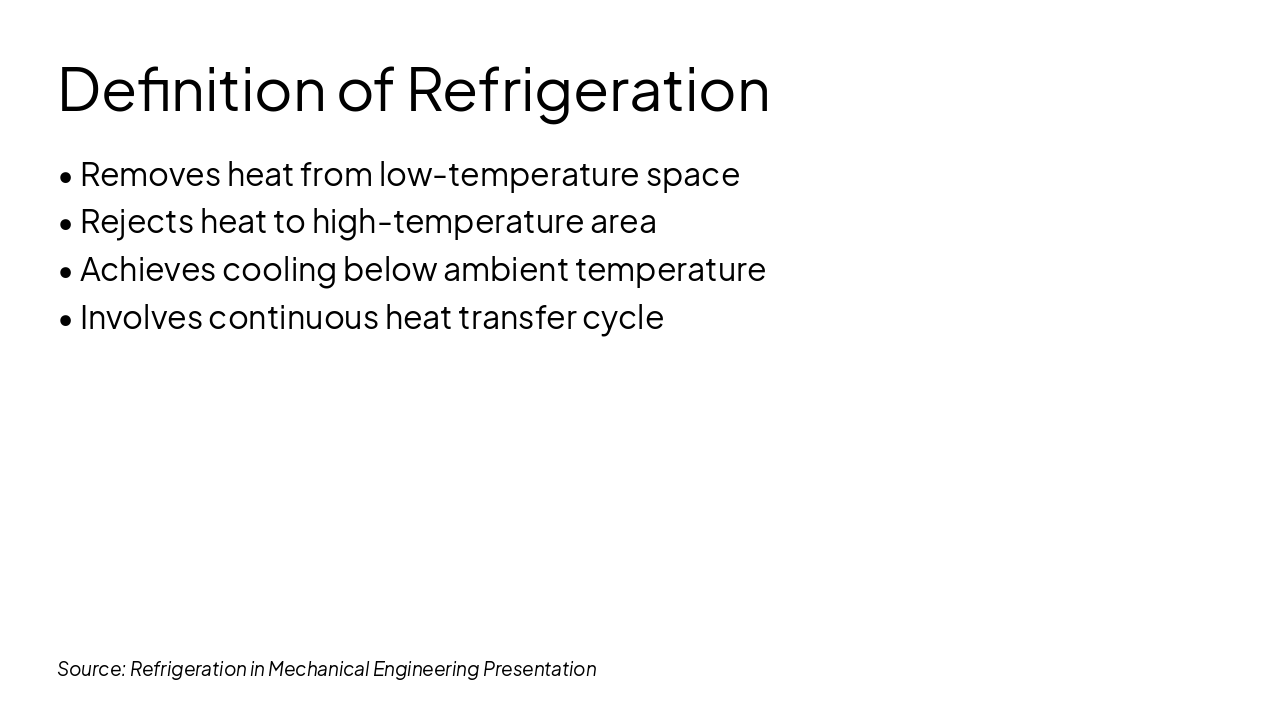

Refrigeration removes heat from a low-temperature space and rejects it to a high-temperature area. It achieves cooling below ambient temperature through a continuous heat transfer cycle.
Source: Refrigeration in Mechanical Engineering Presentation

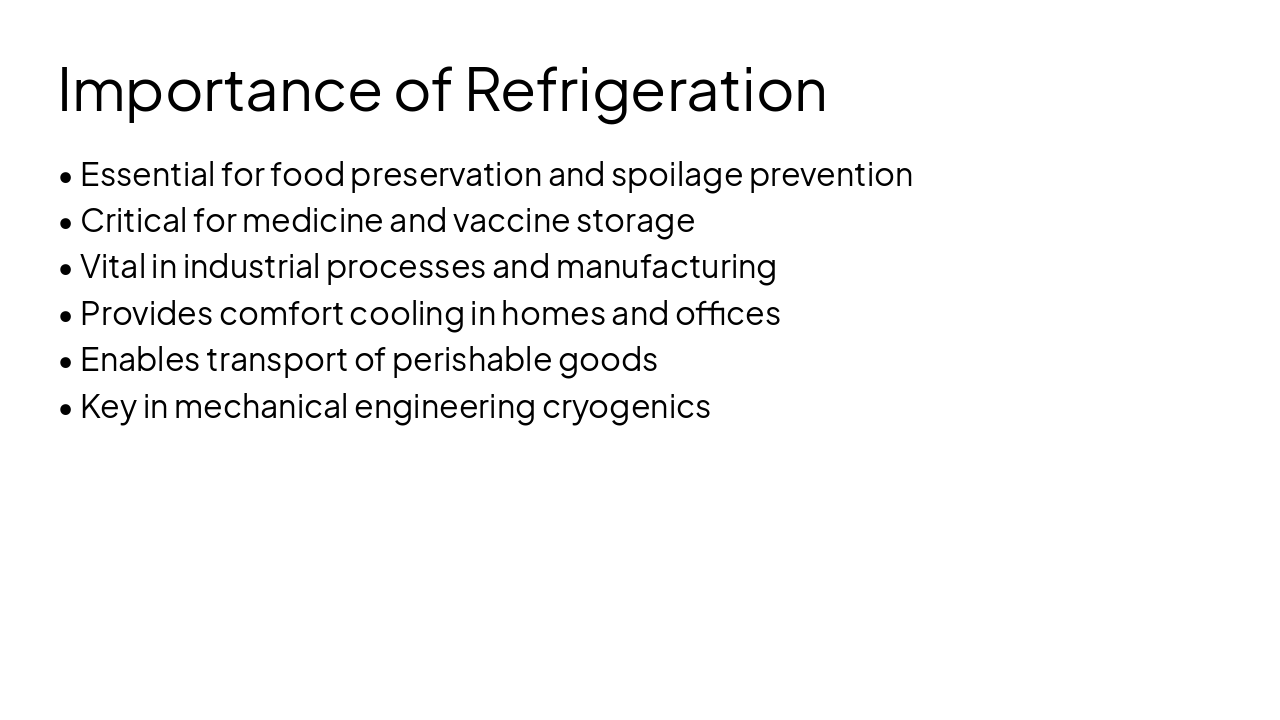

Refrigeration is essential for food preservation, preventing spoilage, storing medicines and vaccines, and enabling transport of perishable goods. It is also vital for industrial processes, manufacturing, comfort cooling in homes and offices, and cryogenics in mechanical engineering.

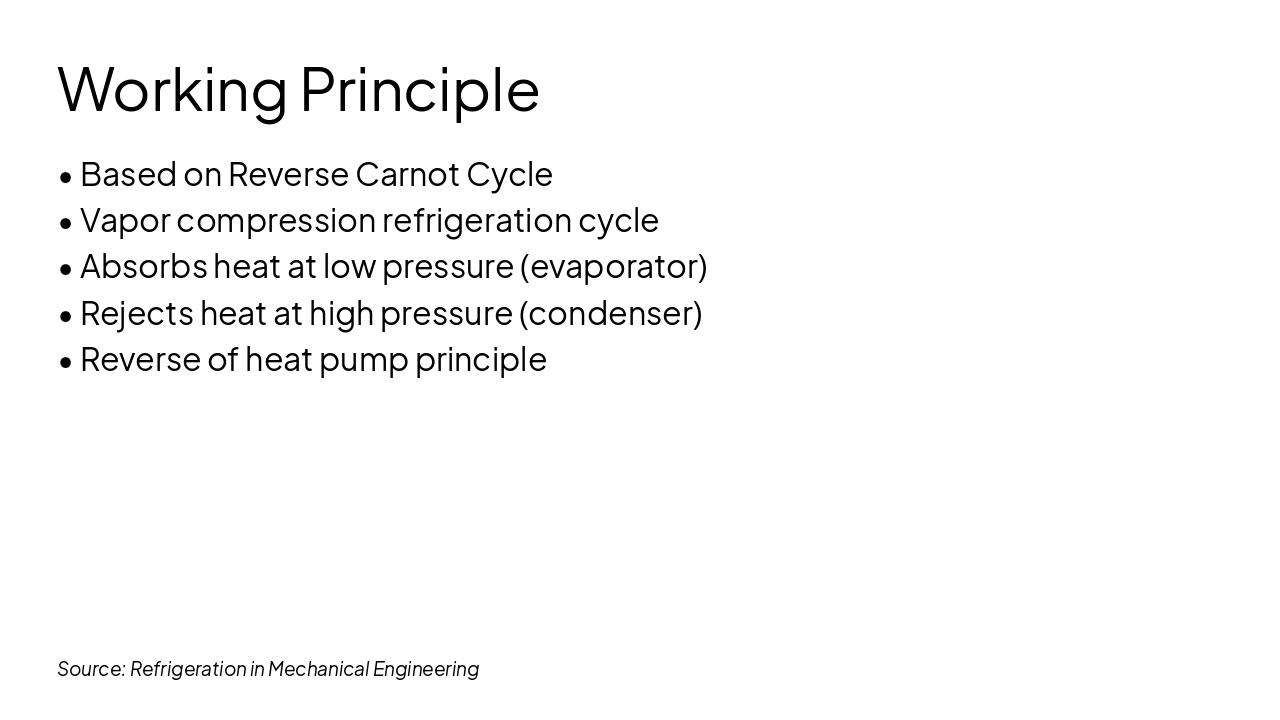

The slide describes the working principle based on the reverse Carnot cycle, specifically the vapor compression refrigeration cycle. It absorbs heat at low pressure in the evaporator and rejects heat at high pressure in the condenser, reversing the heat pump principle.
Source: Refrigeration in Mechanical Engineering

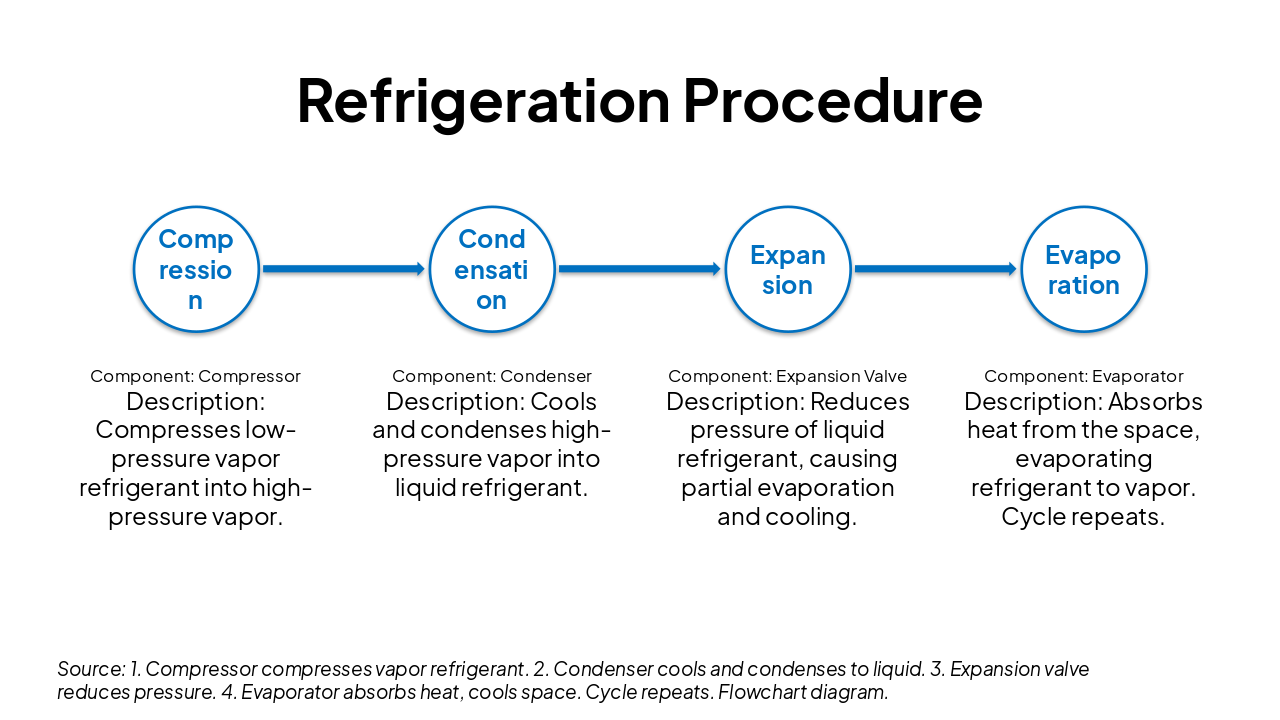

The slide outlines the refrigeration cycle workflow across four phases: compression (compressor), condensation (condenser), expansion (expansion valve), and evaporation (evaporator). It describes how refrigerant is compressed to high-pressure vapor, condensed to liquid, pressure-reduced for cooling, and evaporated to absorb heat before the cycle repeats.
{ "headers": [ "Phase", "Component", "Description" ], "rows": [ [ "Compression", "Compressor", "Compresses low-pressure vapor refrigerant into high-pressure vapor." ], [ "Condensation", "Condenser", "Cools and condenses high-pressure vapor into liquid refrigerant." ], [ "Expansion", "Expansion Valve", "Reduces pressure of liquid refrigerant, causing partial evaporation and cooling." ], [ "Evaporation", "Evaporator", "Absorbs heat from the space, evaporating refrigerant to vapor. Cycle repeats." ] ] }
Source: 1. Compressor compresses vapor refrigerant. 2. Condenser cools and condenses to liquid. 3. Expansion valve reduces pressure. 4. Evaporator absorbs heat, cools space. Cycle repeats. Flowchart diagram.

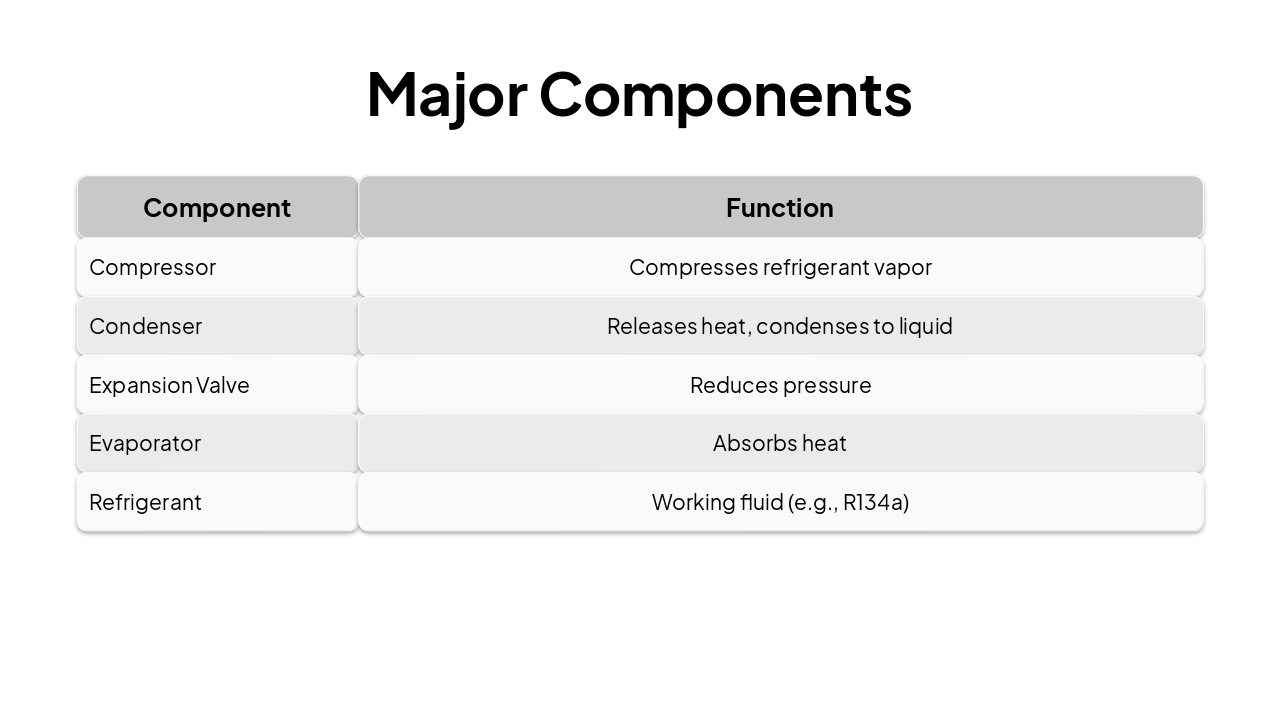

The slide "Major Components" features a table listing key parts of a refrigeration system and their functions. It covers the compressor (compresses refrigerant vapor), condenser (releases heat, condenses to liquid), expansion valve (reduces pressure), evaporator (absorbs heat), and refrigerant (working fluid like R134a).
{ "headers": [ "Component", "Function" ], "rows": [ [ "Compressor", "Compresses refrigerant vapor" ], [ "Condenser", "Releases heat, condenses to liquid" ], [ "Expansion Valve", "Reduces pressure" ], [ "Evaporator", "Absorbs heat" ], [ "Refrigerant", "Working fluid (e.g., R134a)" ] ] }

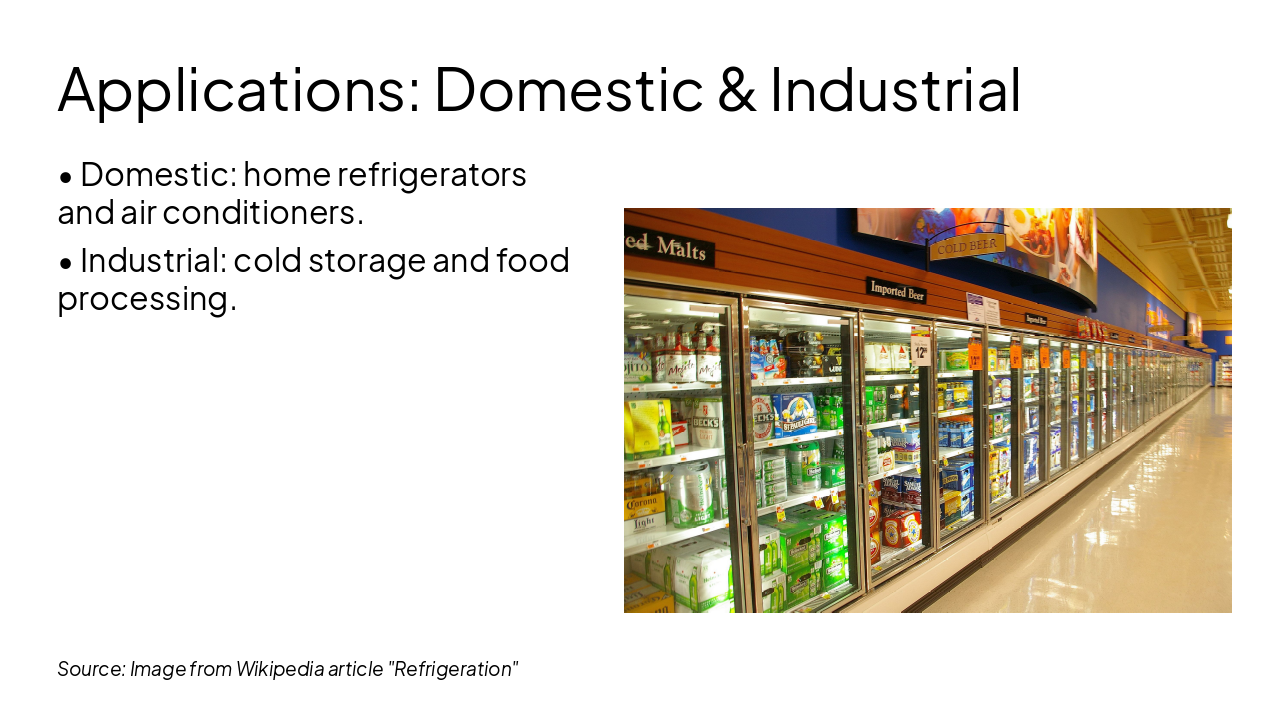

The slide, titled "Applications: Domestic & Industrial," lists domestic uses in home refrigerators and air conditioners. It also covers industrial applications like cold storage and food processing.
Source: Image from Wikipedia article "Refrigeration"

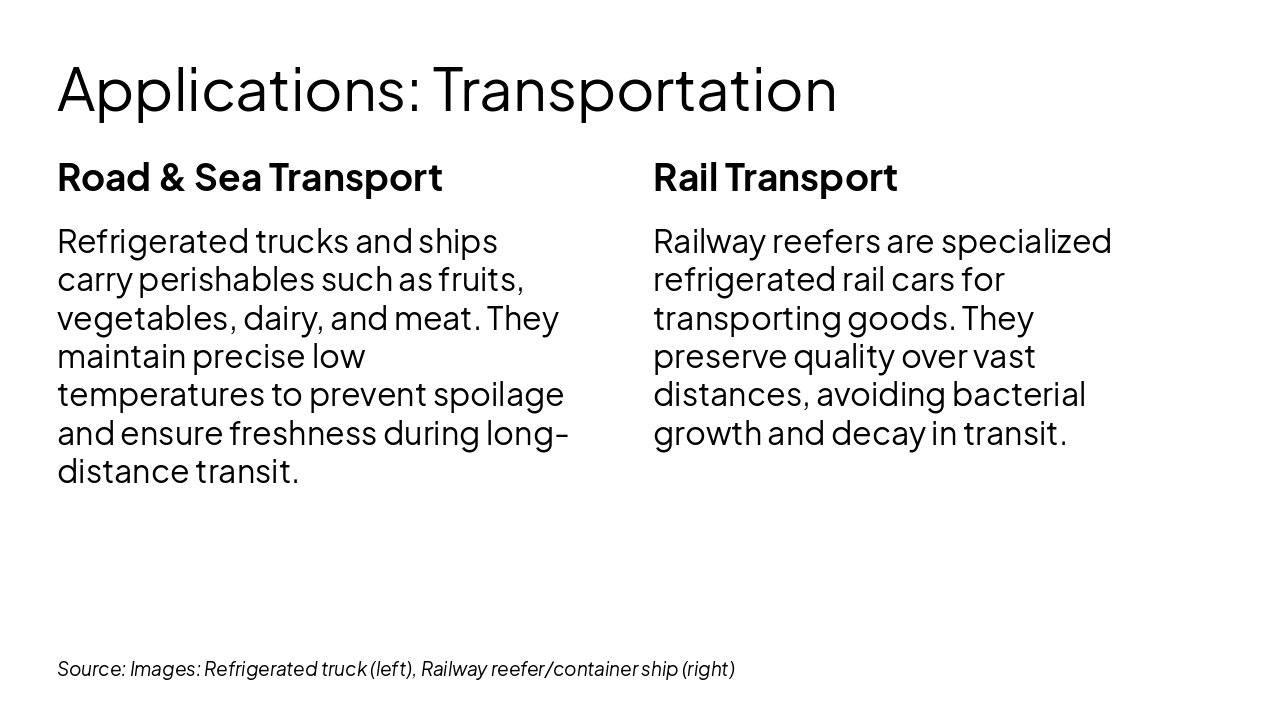

The slide on Transportation Applications features refrigerated trucks and ships for road and sea transport of perishables like fruits, vegetables, dairy, and meat, maintaining low temperatures to prevent spoilage. It also covers railway reefers, specialized rail cars that preserve goods quality over long distances by avoiding bacterial growth and decay.
| Road & Sea Transport | Rail Transport |
|---|---|
| Refrigerated trucks and ships carry perishables such as fruits, vegetables, dairy, and meat. They maintain precise low temperatures to prevent spoilage and ensure freshness during long-distance transit. | Railway reefers are specialized refrigerated rail cars for transporting goods. They preserve quality over vast distances, avoiding bacterial growth and decay in transit. |
Source: Images: Refrigerated truck (left), Railway reefer/container ship (right)
This slide, titled "Applications: Medical & Others," showcases cooling solutions for vaccine storage (2-8°C), MRI superconducting magnets, and pharmaceutical cold chains. It also highlights data center AC units to prevent server overheating and ensure continuous operation.
{ "features": [ { "icon": "💉", "heading": "Vaccine Storage", "description": "Specialized fridges maintain 2-8°C to preserve vaccine potency and prevent spoilage." }, { "icon": "🩻", "heading": "MRI Cooling", "description": "Cryogenic systems cool superconducting magnets for clear, high-resolution medical scans." }, { "icon": "💻", "heading": "Data Centers", "description": "Powerful AC units prevent server overheating, ensuring continuous data processing." }, { "icon": "🧪", "heading": "Pharma Refrigeration", "description": "Cold chain storage keeps drugs and biologics stable for safe medical use." } ] }

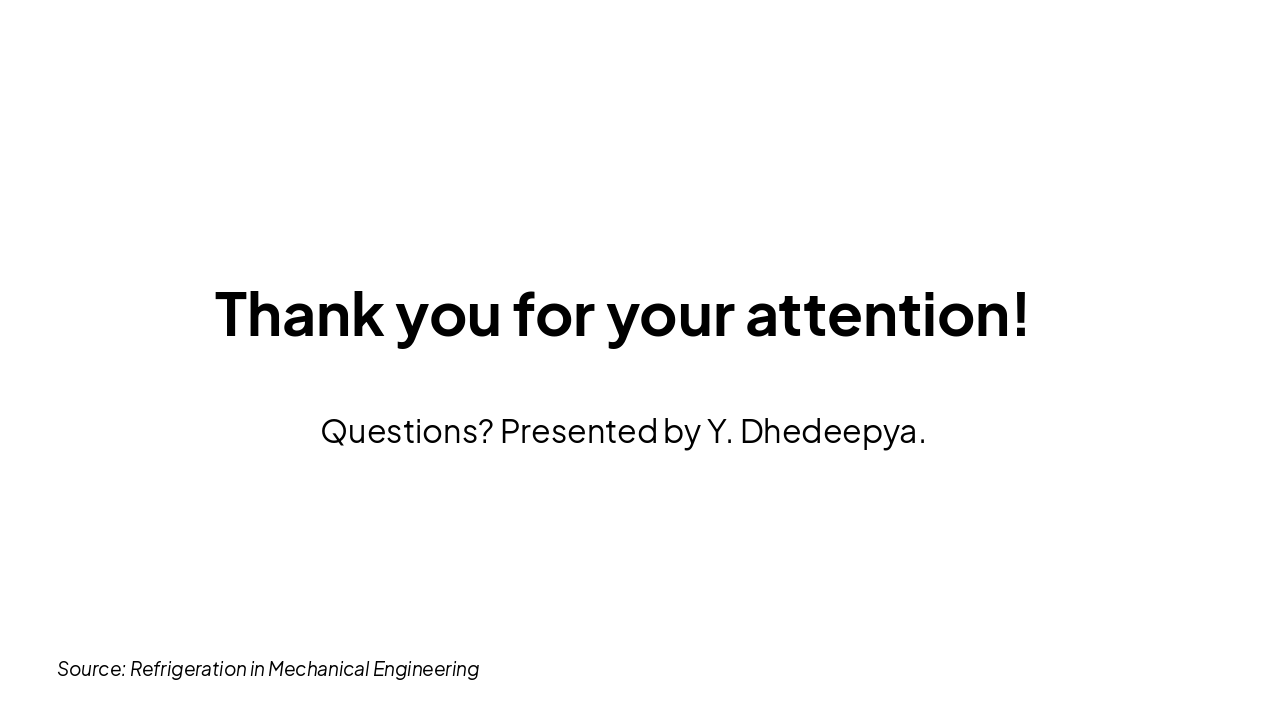

This conclusion slide, titled "Thank You," displays the main text "Thank you for your attention!" The subtitle reads "Questions? Presented by Y. Dhedeepya."
Thank you for your attention!
Questions? Presented by Y. Dhedeepya.
Source: Refrigeration in Mechanical Engineering
