The slide's title introduces "Port-to-Port Hydraulic Attachment Systems for Komatsu Machines," highlighting specialized hydraulic solutions designed for these heavy-duty vehicles. Its subtitle emphasizes advanced options that enable efficient integration of hydraulic systems in heavy machinery.

Port-to-Port Hydraulic Attachment Systems for Komatsu Machines

Advanced Solutions for Efficient Hydraulic Integration in Heavy Machinery

Source: KOMATSU Training Material

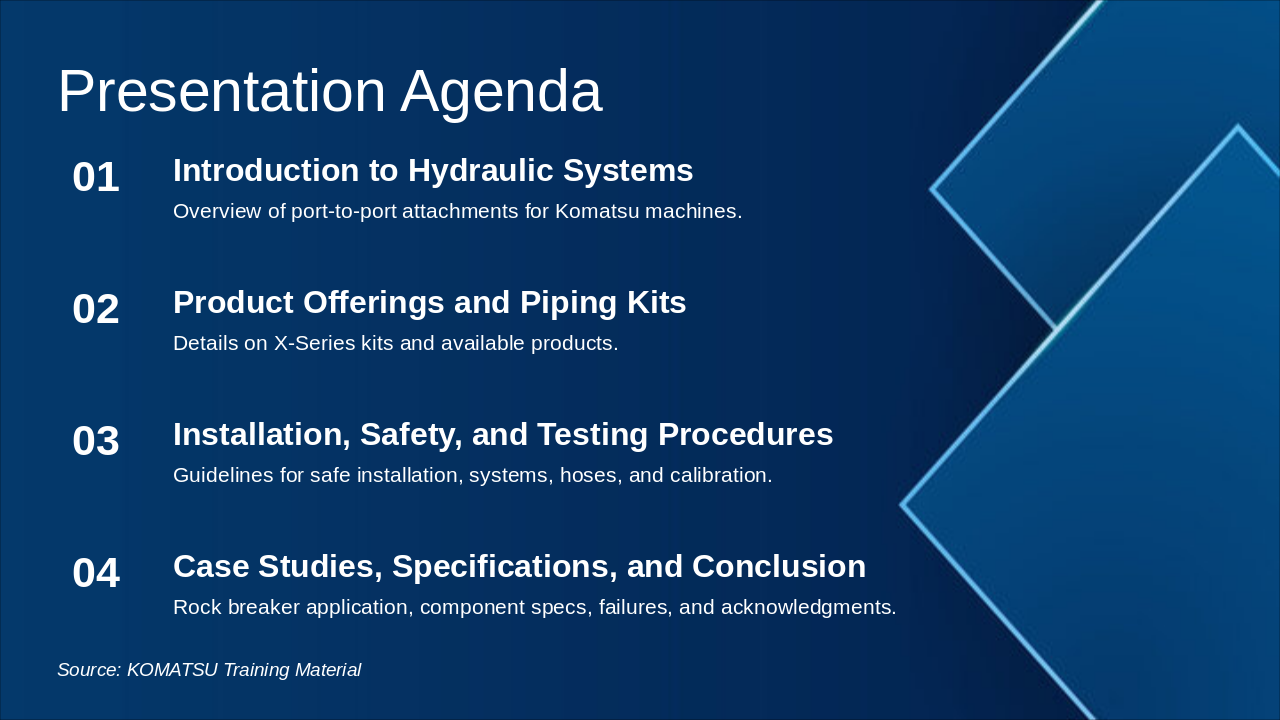

The presentation agenda outlines four key sections on hydraulic systems for Komatsu machines, starting with an introduction to port-to-port attachments. It then covers product offerings like X-Series kits and piping, followed by installation, safety, and testing procedures, and concludes with case studies, specifications, failures, and acknowledgments.

Presentation Agenda

1. Introduction to Hydraulic Systems

Overview of port-to-port attachments for Komatsu machines.

2. Product Offerings and Piping Kits

Details on X-Series kits and available products.

3. Installation, Safety, and Testing Procedures

Guidelines for safe installation, systems, hoses, and calibration.

4. Case Studies, Specifications, and Conclusion

Rock breaker application, component specs, failures, and acknowledgments. Source: KOMATSU Training Material

This section header slide introduces port-to-port hydraulic systems for Komatsu machines, providing an overview of their design and functionality. It highlights their importance in enhancing attachment performance and outlines key benefits for efficient operations.

Port-to-Port Hydraulic Attachment Systems for Komatsu Machines

01

Introduction to Port-to-Port Hydraulic Systems

Overview of port-to-port hydraulic systems, their importance for Komatsu machines, and key benefits for attachments.

Source: KOMATSU Training Material

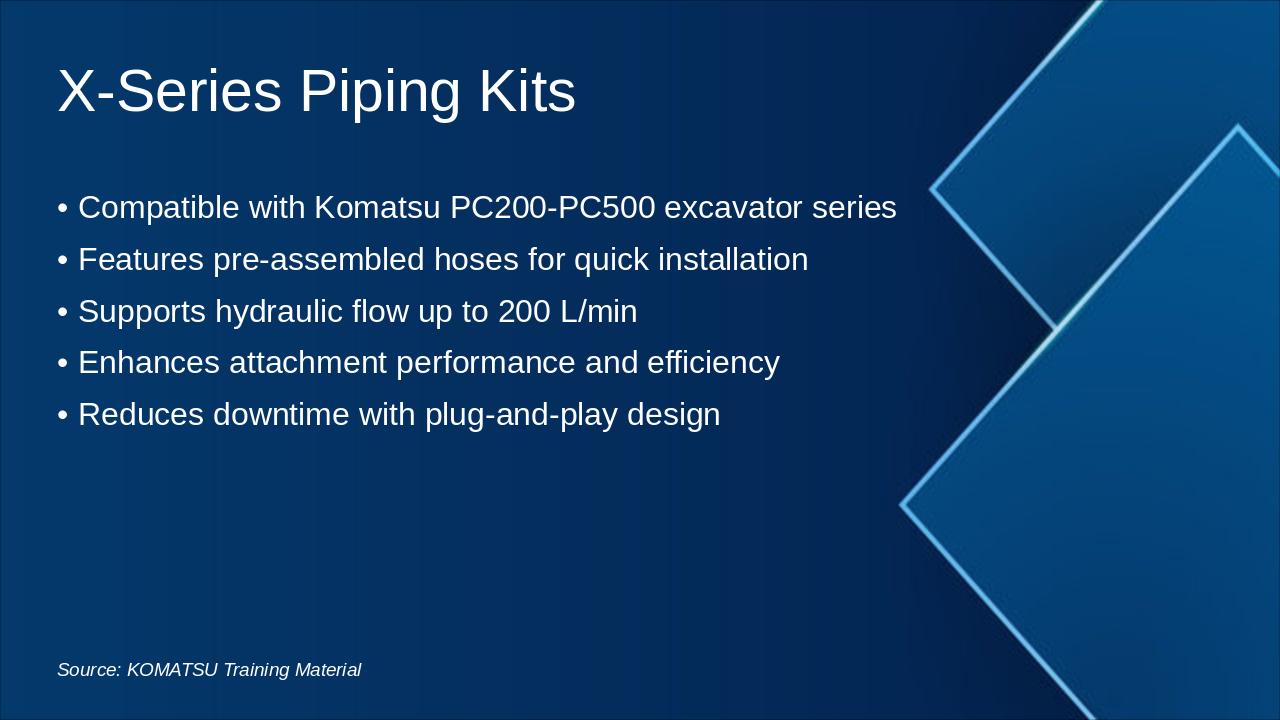

The X-Series Piping Kits are compatible with Komatsu PC200-PC500 excavator series, featuring pre-assembled hoses for quick, plug-and-play installation that supports hydraulic flow up to 200 L/min and reduces downtime. These kits enhance attachment performance and efficiency, making them ideal for streamlined operations.

X-Series Piping Kits

• Compatible with Komatsu PC200-PC500 excavator series
• Features pre-assembled hoses for quick installation
• Supports hydraulic flow up to 200 L/min
• Enhances attachment performance and efficiency
• Reduces downtime with plug-and-play design

Source: KOMATSU Training Material

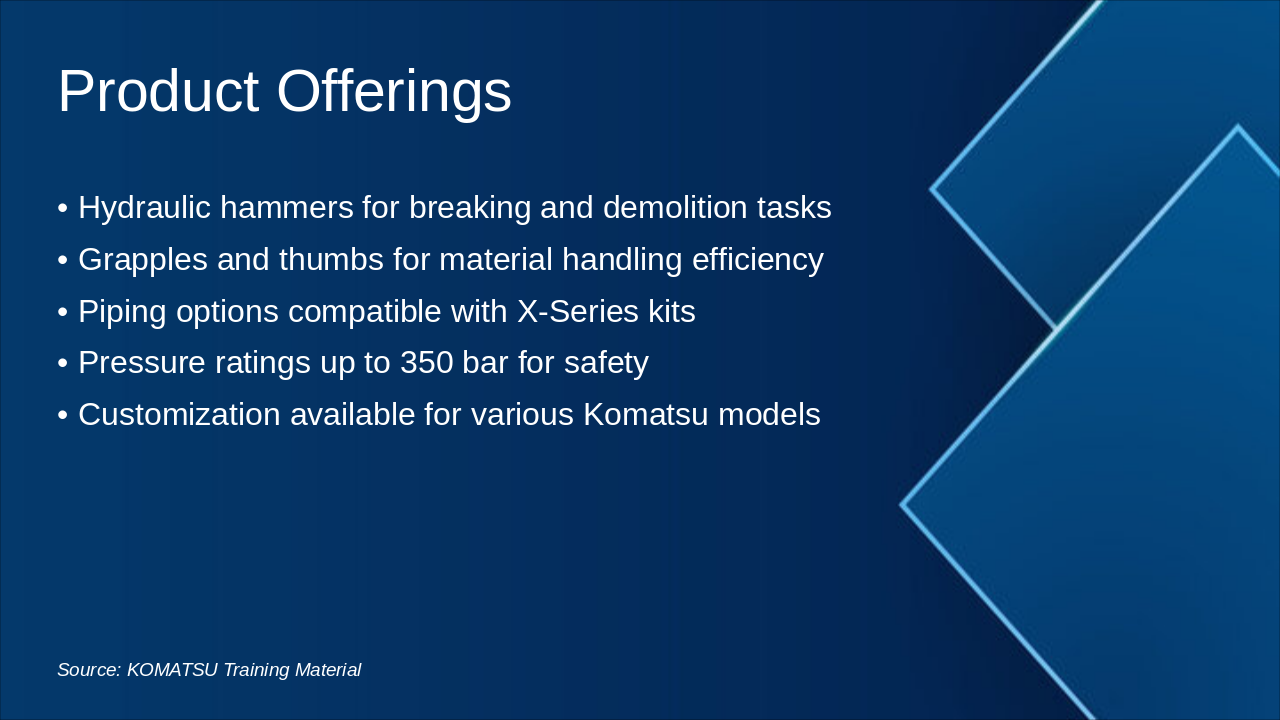

The slide on Product Offerings highlights hydraulic hammers designed for breaking and demolition, along with grapples and thumbs to enhance material handling efficiency. It also covers compatible piping options for X-Series kits, pressure ratings up to 350 bar for safety, and customization for various Komatsu models.

Product Offerings

• Hydraulic hammers for breaking and demolition tasks
• Grapples and thumbs for material handling efficiency
• Piping options compatible with X-Series kits
• Pressure ratings up to 350 bar for safety
• Customization available for various Komatsu models

Source: KOMATSU Training Material

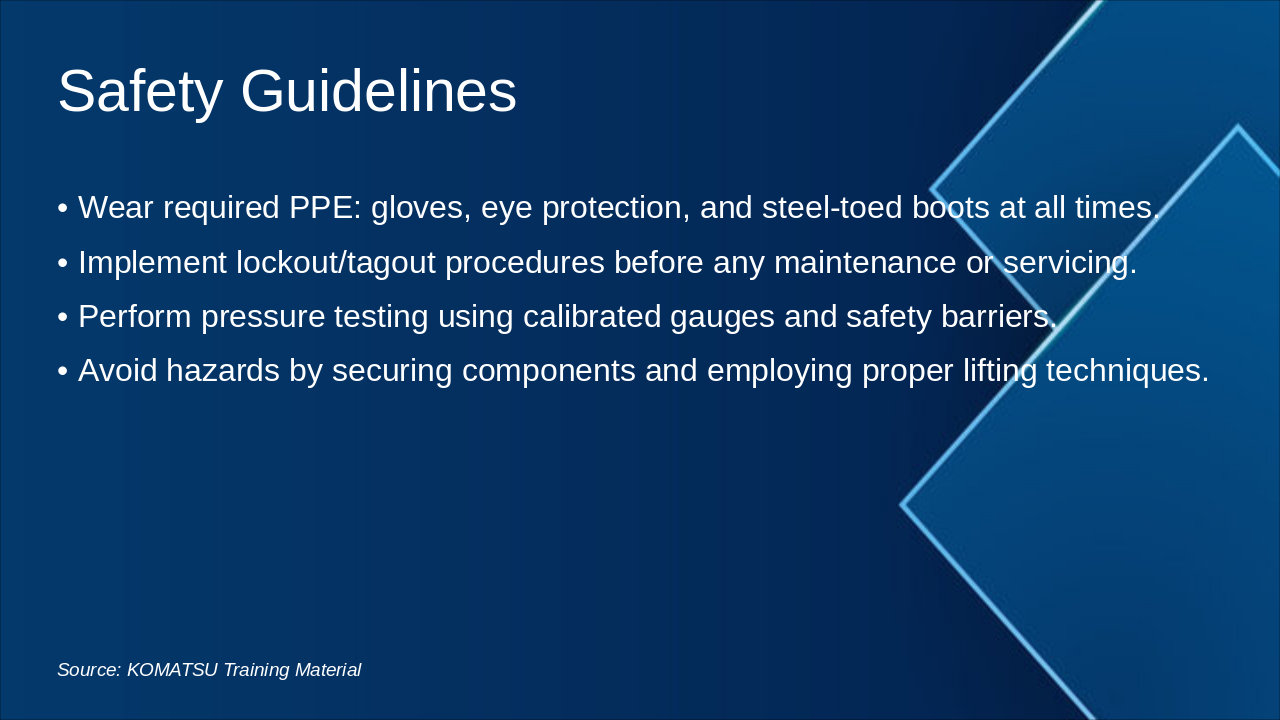

The Safety Guidelines slide outlines essential protective measures, including wearing required PPE such as gloves, eye protection, and steel-toed boots at all times, along with implementing lockout/tagout procedures before maintenance. It also emphasizes safe practices like performing pressure testing with calibrated gauges and barriers, while avoiding hazards through securing components and using proper lifting techniques.

Safety Guidelines

• Wear required PPE: gloves, eye protection, and steel-toed boots at all times.
• Implement lockout/tagout procedures before any maintenance or servicing.
• Perform pressure testing using calibrated gauges and safety barriers.
• Avoid hazards by securing components and employing proper lifting techniques.

Source: KOMATSU Training Material

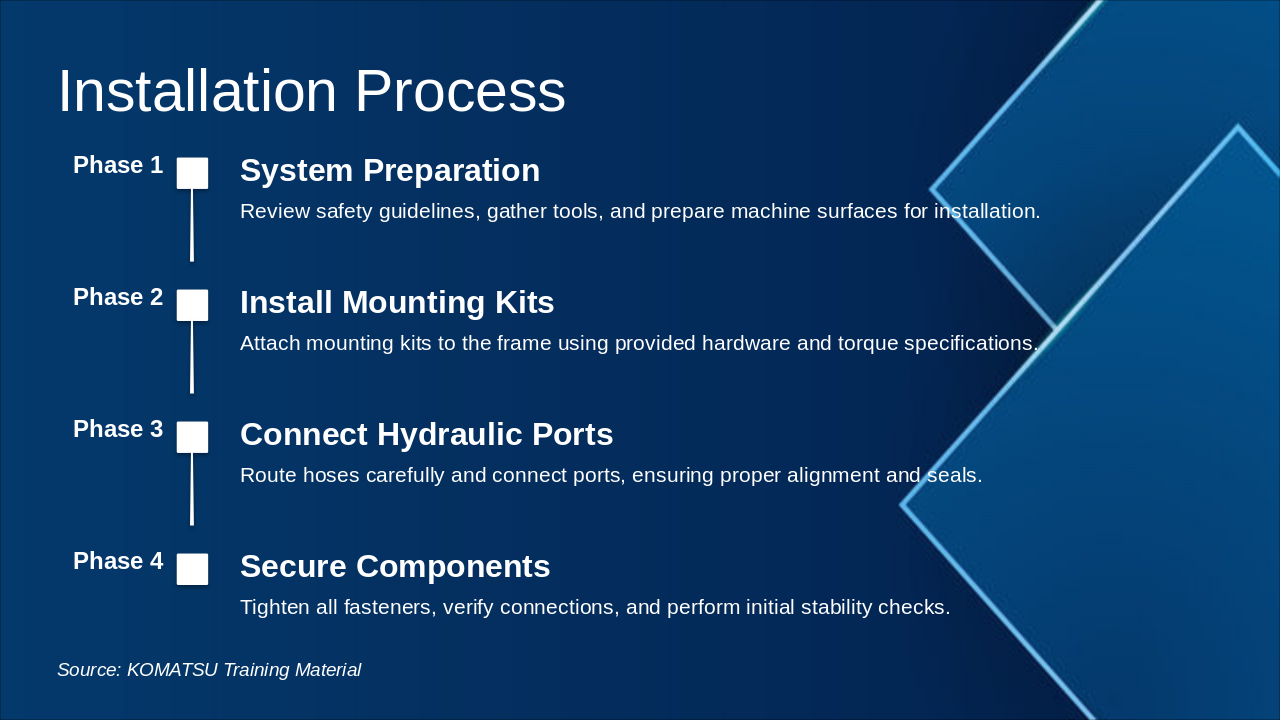

The Installation Process timeline outlines four phases for setting up the system. Phase 1 involves preparing by reviewing safety guidelines, gathering tools, and readying surfaces; Phase 2 focuses on attaching mounting kits with specified hardware and torque; Phase 3 covers routing and connecting hydraulic ports for proper alignment and seals; and Phase 4 entails tightening fasteners, verifying connections, and checking stability.

Installation Process

Phase 1: System Preparation Review safety guidelines, gather tools, and prepare machine surfaces for installation. Phase 2: Install Mounting Kits Attach mounting kits to the frame using provided hardware and torque specifications. Phase 3: Connect Hydraulic Ports Route hoses carefully and connect ports, ensuring proper alignment and seals. Phase 4: Secure Components Tighten all fasteners, verify connections, and perform initial stability checks.

Source: KOMATSU Training Material

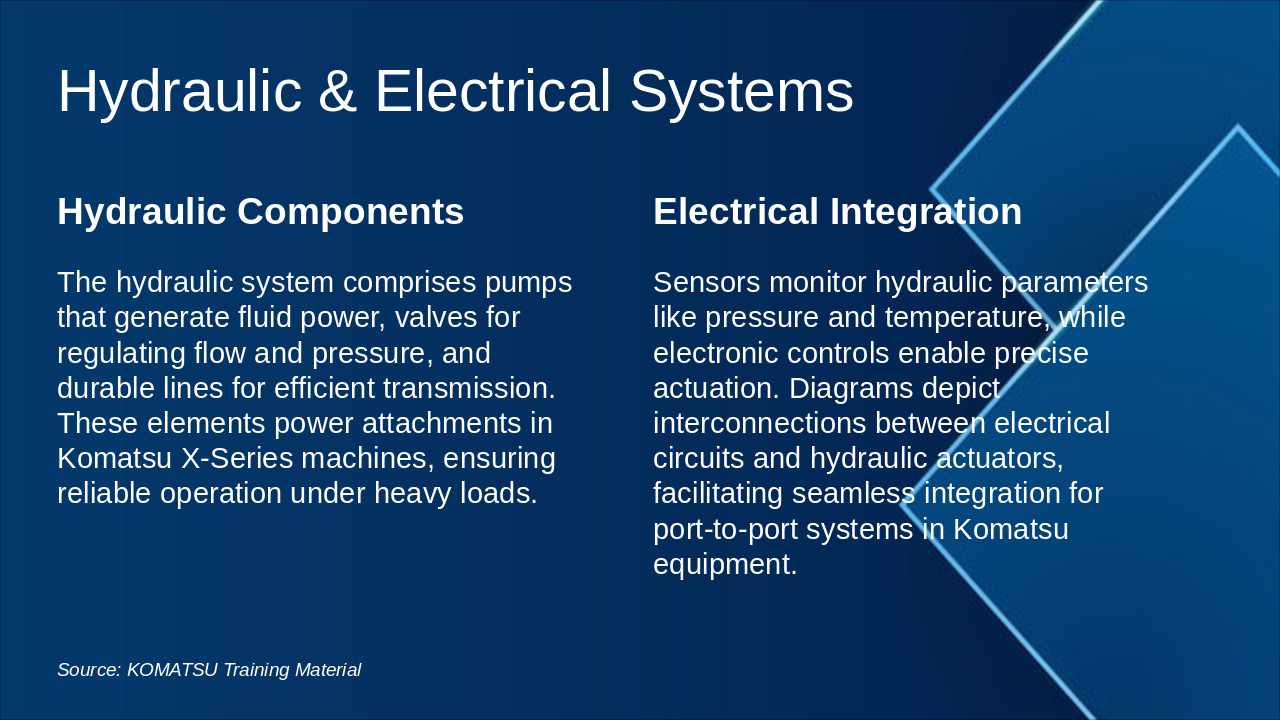

The slide on Hydraulic & Electrical Systems in Komatsu X-Series machines outlines the hydraulic components, including pumps for generating fluid power, valves for regulating flow and pressure, and durable lines for transmission, which power attachments under heavy loads. It also covers electrical integration, where sensors monitor hydraulic parameters and electronic controls enable precise actuation, with diagrams showing interconnections between circuits and actuators for seamless port-to-port systems.

Hydraulic & Electrical Systems

Source: KOMATSU Training Material

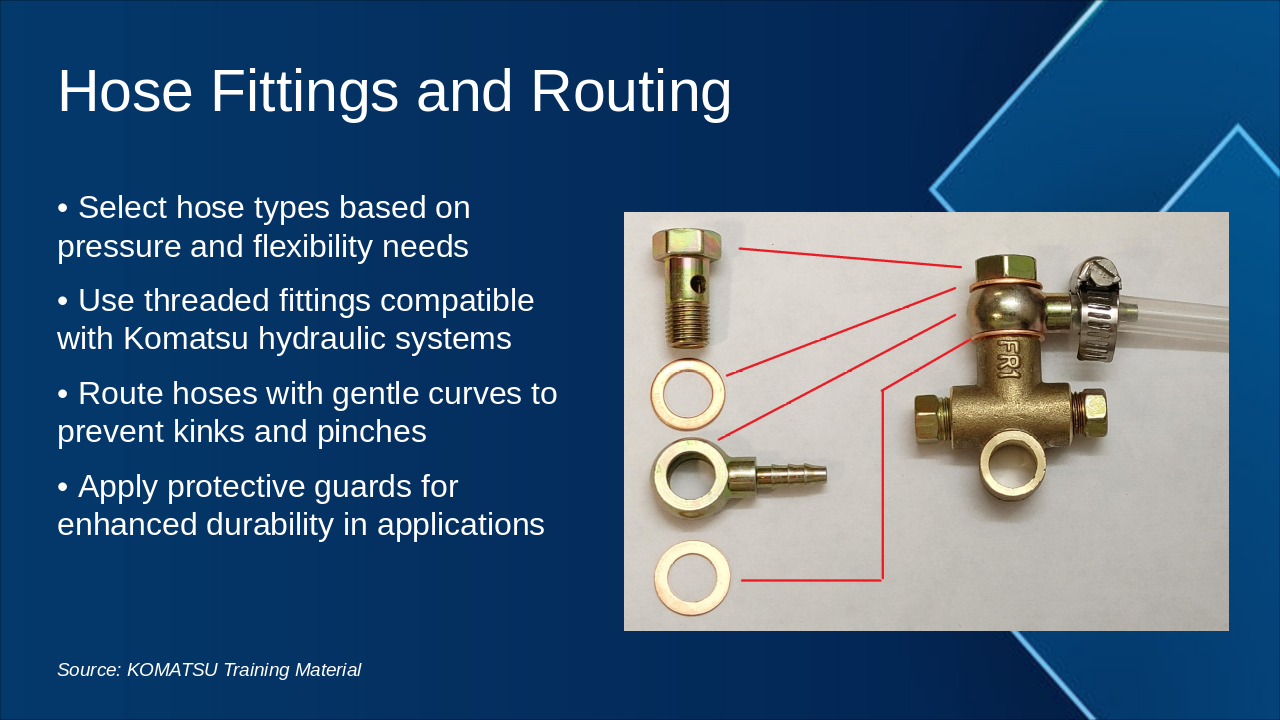

The slide on Hose Fittings and Routing provides guidance for selecting hose types based on pressure and flexibility requirements, while using threaded fittings compatible with Komatsu hydraulic systems. It also emphasizes routing hoses with gentle curves to avoid kinks and pinches, and applying protective guards to improve durability in various applications.

Hose Fittings and Routing

!Image

• Select hose types based on pressure and flexibility needs
• Use threaded fittings compatible with Komatsu hydraulic systems
• Route hoses with gentle curves to prevent kinks and pinches
• Apply protective guards for enhanced durability in applications

Source: KOMATSU Training Material

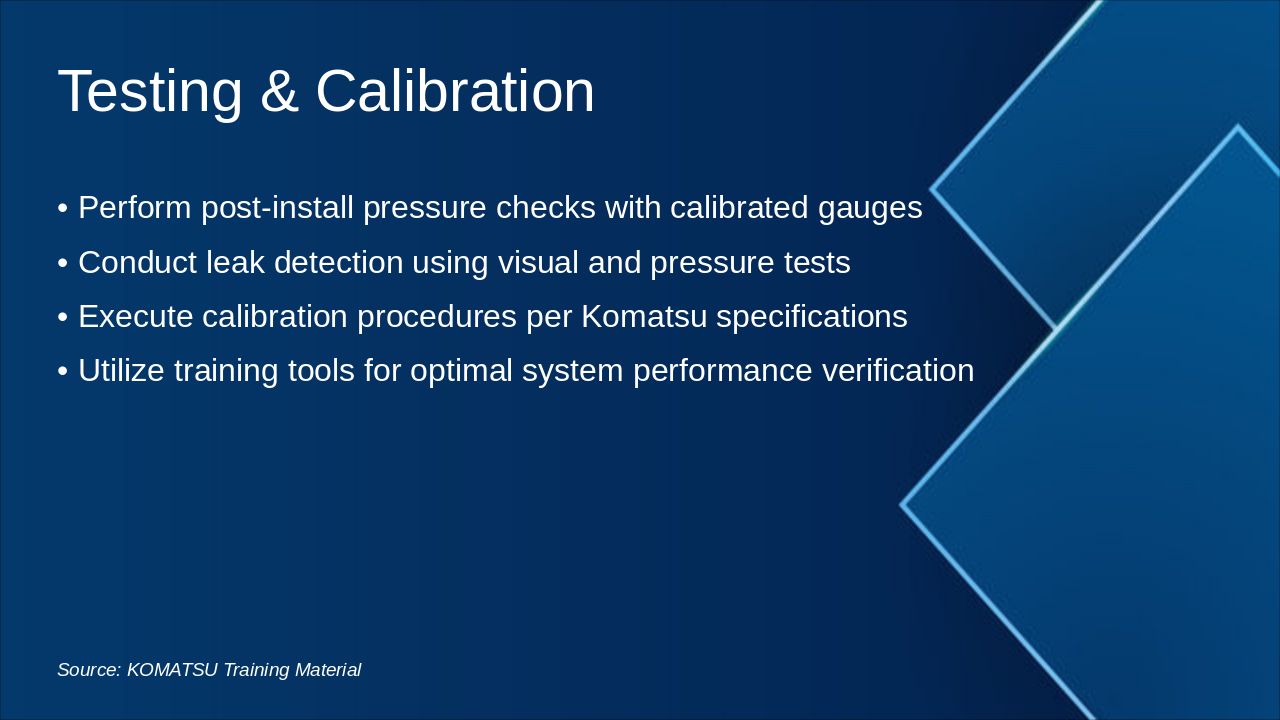

The slide on Testing & Calibration outlines key steps for ensuring system integrity after installation, including performing pressure checks with calibrated gauges and conducting leak detection through visual and pressure tests. It also covers executing calibration procedures according to Komatsu specifications and using training tools to verify optimal system performance.

Testing & Calibration

• Perform post-install pressure checks with calibrated gauges
• Conduct leak detection using visual and pressure tests
• Execute calibration procedures per Komatsu specifications
• Utilize training tools for optimal system performance verification

Source: KOMATSU Training Material

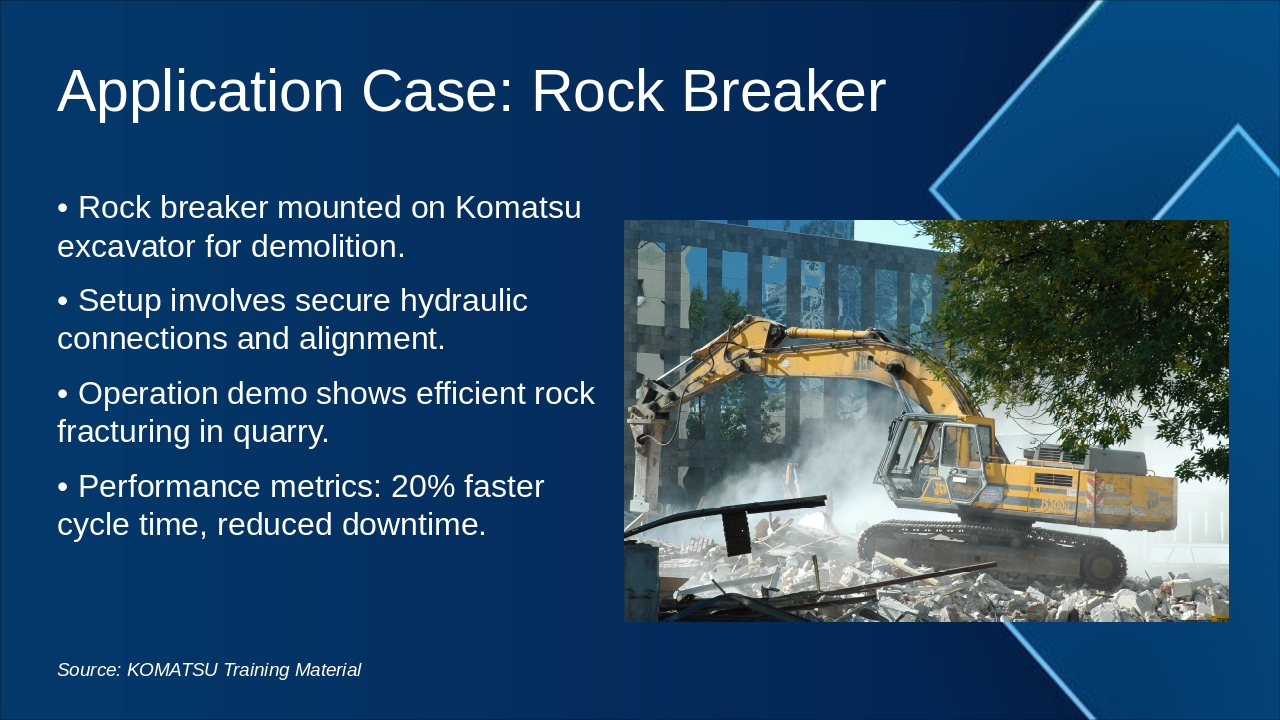

The slide showcases a rock breaker mounted on a Komatsu excavator for demolition tasks, highlighting the setup with secure hydraulic connections and precise alignment. It includes a demonstration of efficient rock fracturing in a quarry, along with performance metrics showing 20% faster cycle times and reduced downtime.

Application Case: Rock Breaker

!Image

• Rock breaker mounted on Komatsu excavator for demolition.
• Setup involves secure hydraulic connections and alignment.
• Operation demo shows efficient rock fracturing in quarry.
• Performance metrics: 20% faster cycle time, reduced downtime.

Source: KOMATSU Training Material

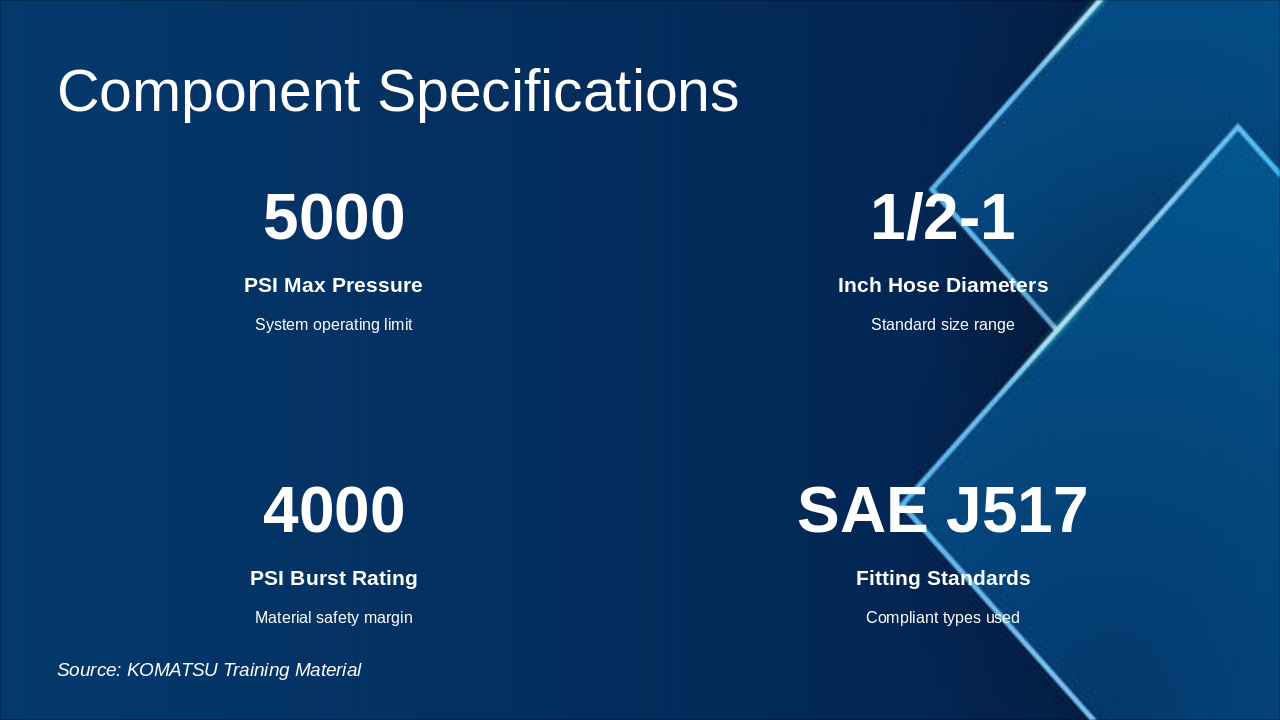

The slide outlines key specifications for a hydraulic or pressure system component, including a maximum operating pressure of 5000 PSI and standard hose diameters ranging from 1/2 to 1 inch. It also details a burst rating safety margin of 4000 PSI and compliance with SAE J517 fitting standards.

Component Specifications

• 5000: PSI Max Pressure

System operating limit

• 1/2-1: Inch Hose Diameters

Standard size range

• 4000: PSI Burst Rating

Material safety margin

• SAE J517: Fitting Standards

Compliant types used Source: KOMATSU Training Material

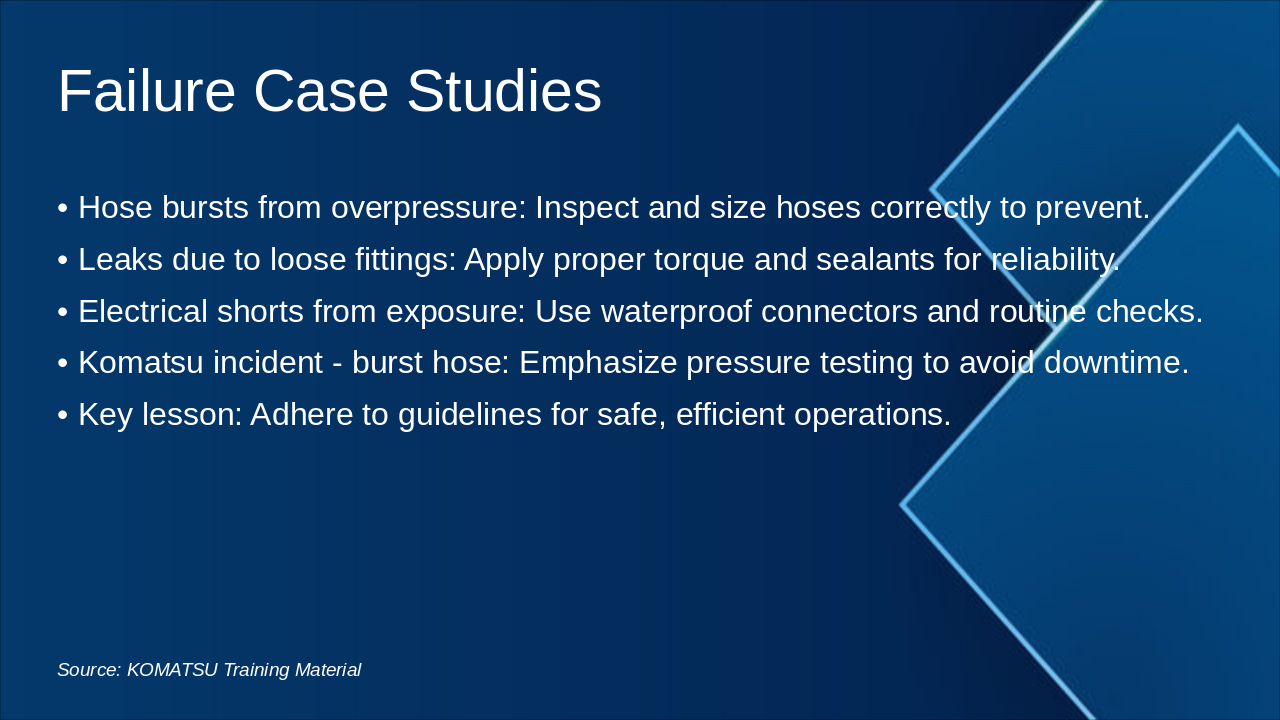

The slide "Failure Case Studies" outlines common hydraulic and electrical failures, such as hose bursts from overpressure, leaks from loose fittings, and electrical shorts due to exposure, with prevention tips like proper inspection, torque application, and waterproof connectors. It highlights the Komatsu incident involving a burst hose and stresses the key lesson of adhering to guidelines for safe, efficient operations.

Failure Case Studies

• Hose bursts from overpressure: Inspect and size hoses correctly to prevent.
• Leaks due to loose fittings: Apply proper torque and sealants for reliability.
• Electrical shorts from exposure: Use waterproof connectors and routine checks.
• Komatsu incident - burst hose: Emphasize pressure testing to avoid downtime.
• Key lesson: Adhere to guidelines for safe, efficient operations.

Source: KOMATSU Training Material

Port-to-port hydraulic attachment systems for Komatsu machines offer key advantages like improved efficiency, safety, versatility, reduced downtime, and enhanced performance, with best practices emphasizing precise installation, routine maintenance, and adherence to safety guidelines. The subtitle highlights optimizing Komatsu performance through innovation, while the future outlook envisions advanced integration, greater reliability, and novel applications in heavy machinery.

Conclusion

In summary, port-to-port hydraulic attachment systems for Komatsu machines deliver key benefits such as enhanced efficiency, safety, and versatility, reducing downtime and improving performance. Best practices include precise installation, routine maintenance, and strict adherence to safety guidelines. The future outlook for hydraulic systems promises advanced integration, greater reliability, and innovative applications in heavy machinery operations.

Optimizing Komatsu Performance Through Innovation

Source: KOMATSU Training Material

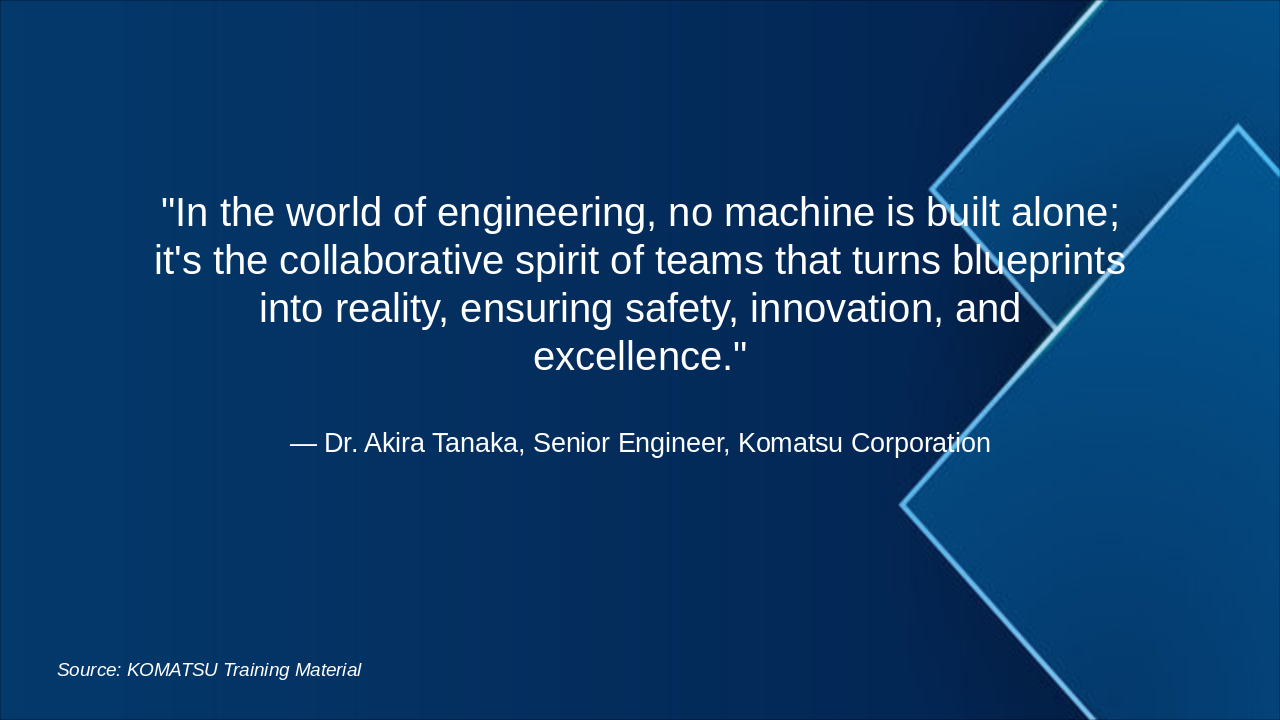

The slide, titled "Acknowledgment," features a quote from Dr. Akira Tanaka, Senior Engineer at Komatsu Corporation. It states that in engineering, no machine is built alone, but through the collaborative spirit of teams that transforms blueprints into safe, innovative, and excellent realities.

Acknowledgment

> In the world of engineering, no machine is built alone; it's the collaborative spirit of teams that turns blueprints into reality, ensuring safety, innovation, and excellence.

— Dr. Akira Tanaka, Senior Engineer, Komatsu Corporation

Source: KOMATSU Training Material
