Slide 1 - Equipment and Techniques Guide

Equipment and Techniques Guide

Extinguishers, Hoses, PPE, Vehicles, Ladders & Fire Patterns

---

Photo by Lai Man Nung on Unsplash

Slide 1 - Equipment and Techniques Guide

Slide 2 of 20

Slide 2 - Presentation Outline

How to Operate a Fire Extinguisher (PASS & Safety)
Kinds of Fire Extinguishers (Uses & Classes)
Kinds of Fire Hoses (Differences & Uses)
Parts of Personal Protective Equipment (PPE & Functions)
Kinds of Fire Vehicles (Functions)
Kinds of Ladders (Use & Safety)
Different Kinds of Fire Patterns (Investigation Value)

---

Photo by Elijah Mears on Unsplash

Slide 3 of 20

Slide 3 - 1. Fire Extinguisher Operation

How to Operate

PASS Technique and Key Safety Precautions

---

Photo by Tak Kei Wong on Unsplash

Slide 3 - 1. Fire Extinguisher Operation

Slide 4 of 20

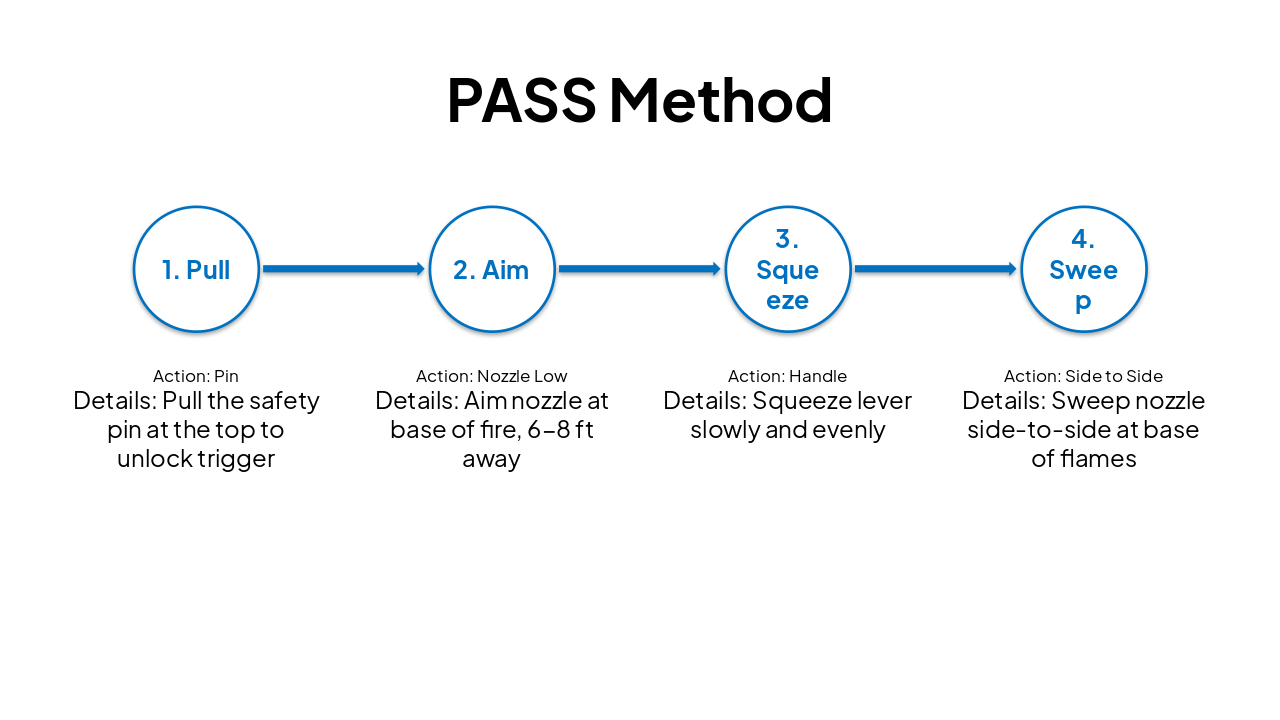

Slide 4 - PASS Method

Step	Action	Details
1. Pull	Pin	Pull the safety pin at the top to unlock trigger
2. Aim	Nozzle Low	Aim nozzle at base of fire, 6-8 ft away
3. Squeeze	Handle	Squeeze lever slowly and evenly
4. Sweep	Side to Side	Sweep nozzle side-to-side at base of flames

Slide 5 of 20

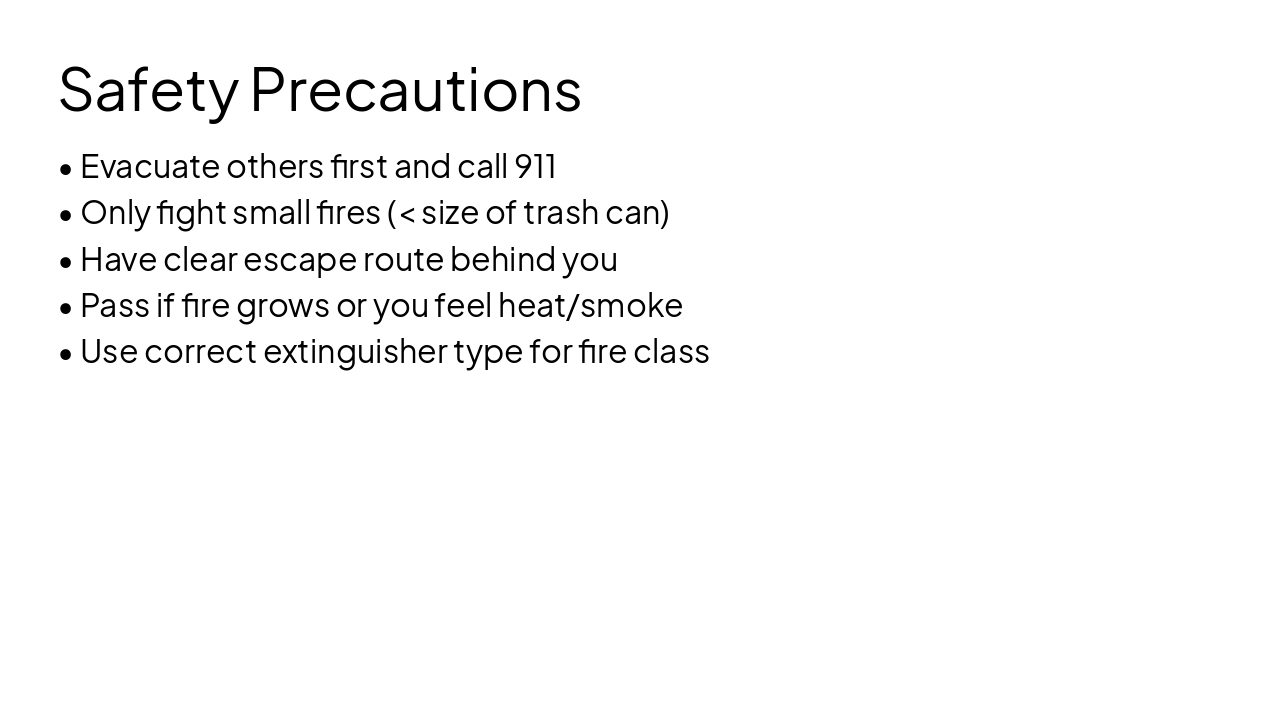

Slide 5 - Safety Precautions

Evacuate others first and call 911
Only fight small fires (< size of trash can)
Have clear escape route behind you
Pass if fire grows or you feel heat/smoke
Use correct extinguisher type for fire class

Slide 6 of 20

Slide 6 - 2. Fire Extinguishers

Types and Uses

Matched to Fire Classes: A (Ordinary), B (Flammable), C (Electrical), D (Metals), K (Kitchen)

---

Photo by Tak Kei Wong on Unsplash

Slide 7 of 20

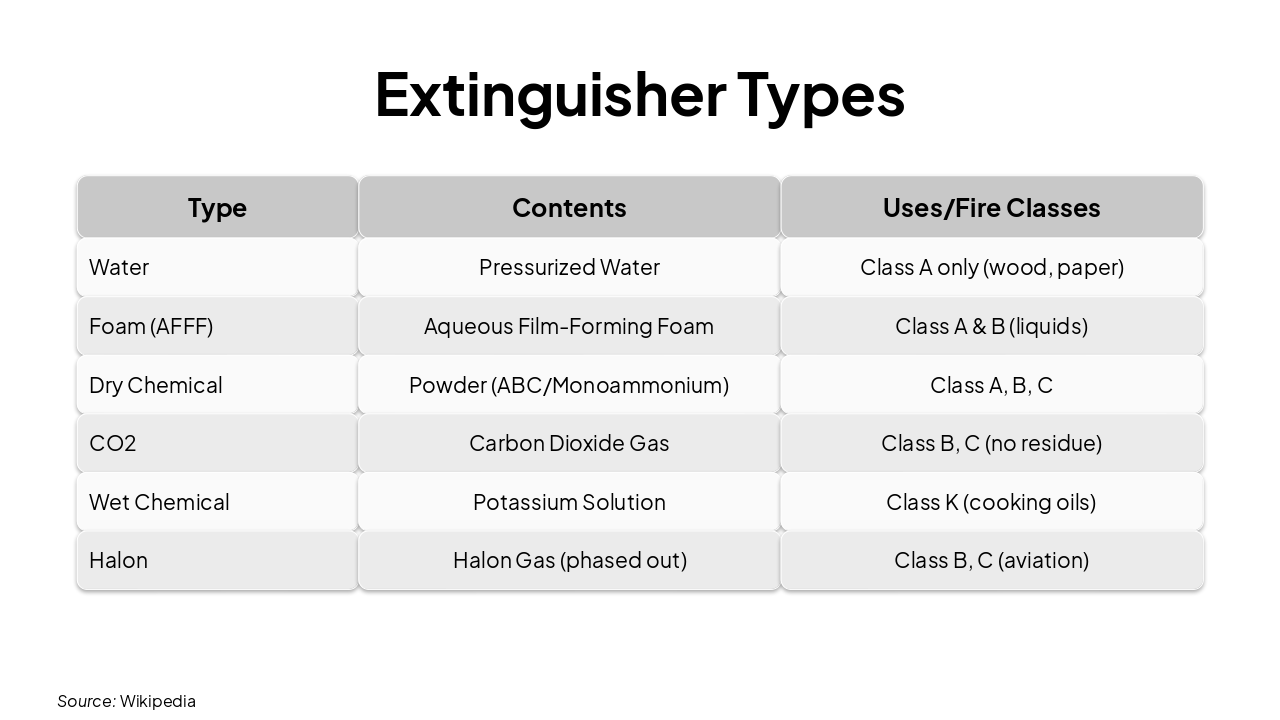

Slide 7 - Extinguisher Types

Type	Contents	Uses/Fire Classes
Water	Pressurized Water	Class A only (wood, paper)
Foam (AFFF)	Aqueous Film-Forming Foam	Class A & B (liquids)
Dry Chemical	Powder (ABC/Monoammonium)	Class A, B, C
CO2	Carbon Dioxide Gas	Class B, C (no residue)
Wet Chemical	Potassium Solution	Class K (cooking oils)
Halon	Halon Gas (phased out)	Class B, C (aviation)

Source: Wikipedia

Slide 8 of 20

Slide 8 - 3. Fire Hoses

Types and Applications

Attack, Supply, and Booster Hoses

---

Photo by Albert Stoynov on Unsplash

Slide 9 of 20

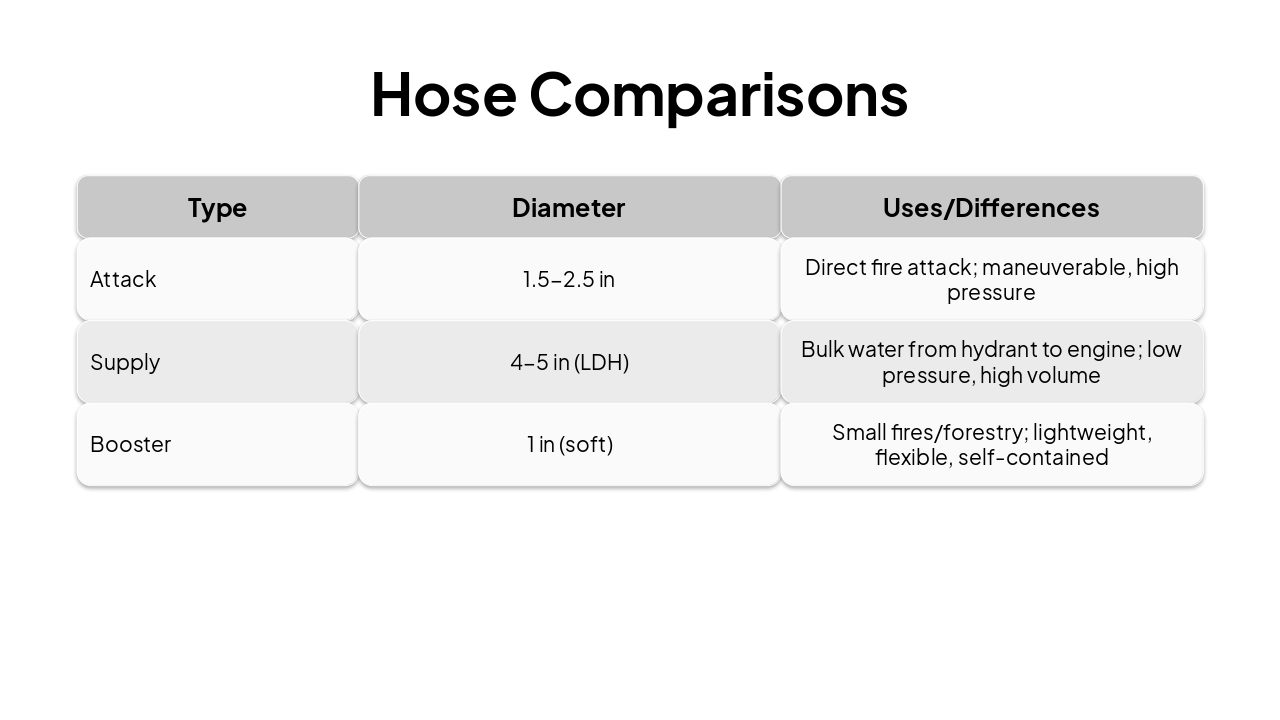

Slide 9 - Hose Comparisons

Type	Diameter	Uses/Differences
Attack	1.5-2.5 in	Direct fire attack; maneuverable, high pressure
Supply	4-5 in (LDH)	Bulk water from hydrant to engine; low pressure, high volume
Booster	1 in (soft)	Small fires/forestry; lightweight, flexible, self-contained

Slide 10 of 20

Slide 10 - 4. PPE Components

Personal Protective Equipment

Key Parts and Their Functions

---

Photo by Mauro Sbicego on Unsplash

Slide 11 of 20

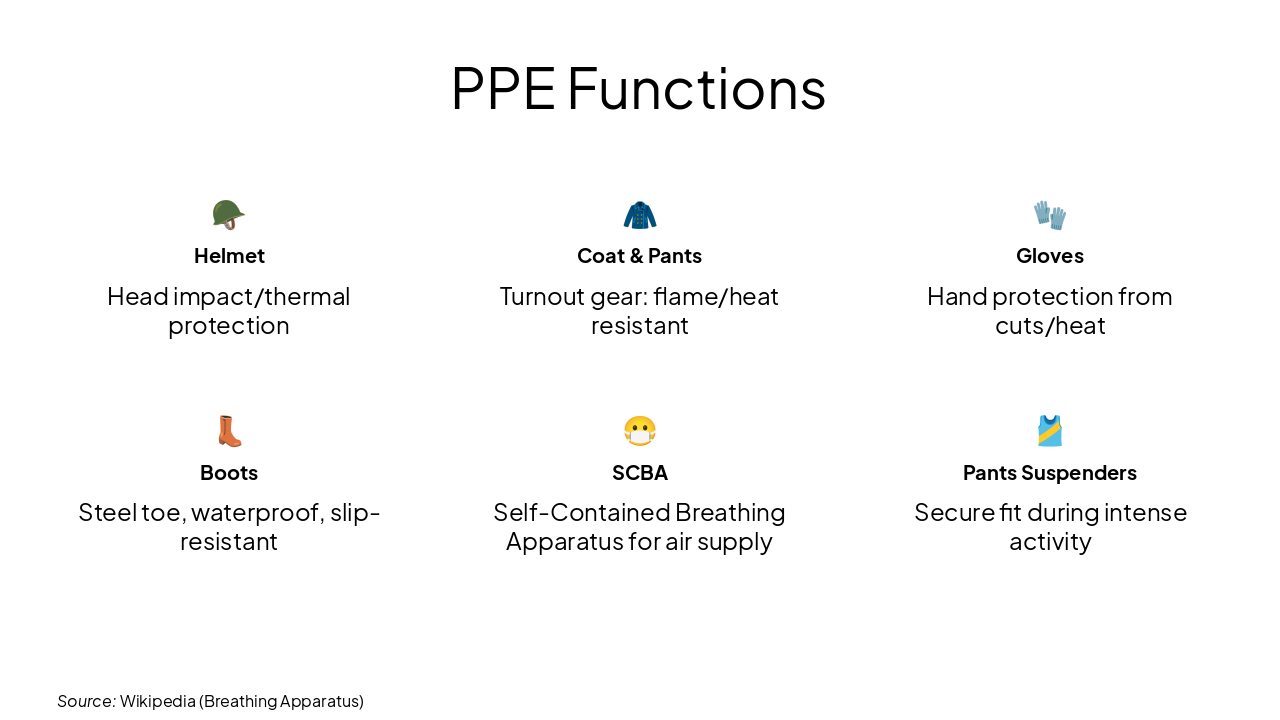

Slide 11 - PPE Functions

🪖 Helmet Head impact/thermal protection

🧥 Coat & Pants Turnout gear: flame/heat resistant

🧤 Gloves Hand protection from cuts/heat

👢 Boots Steel toe, waterproof, slip-resistant

😷 SCBA Self-Contained Breathing Apparatus for air supply

🎽 Pants Suspenders Secure fit during intense activity

Source: Wikipedia (Breathing Apparatus)

Slide 12 of 20

Slide 12 - 5. Fire Vehicles

Apparatus Types

Primary Functions and Capabilities

---

Photo by Kai Butcher on Unsplash

Slide 13 of 20

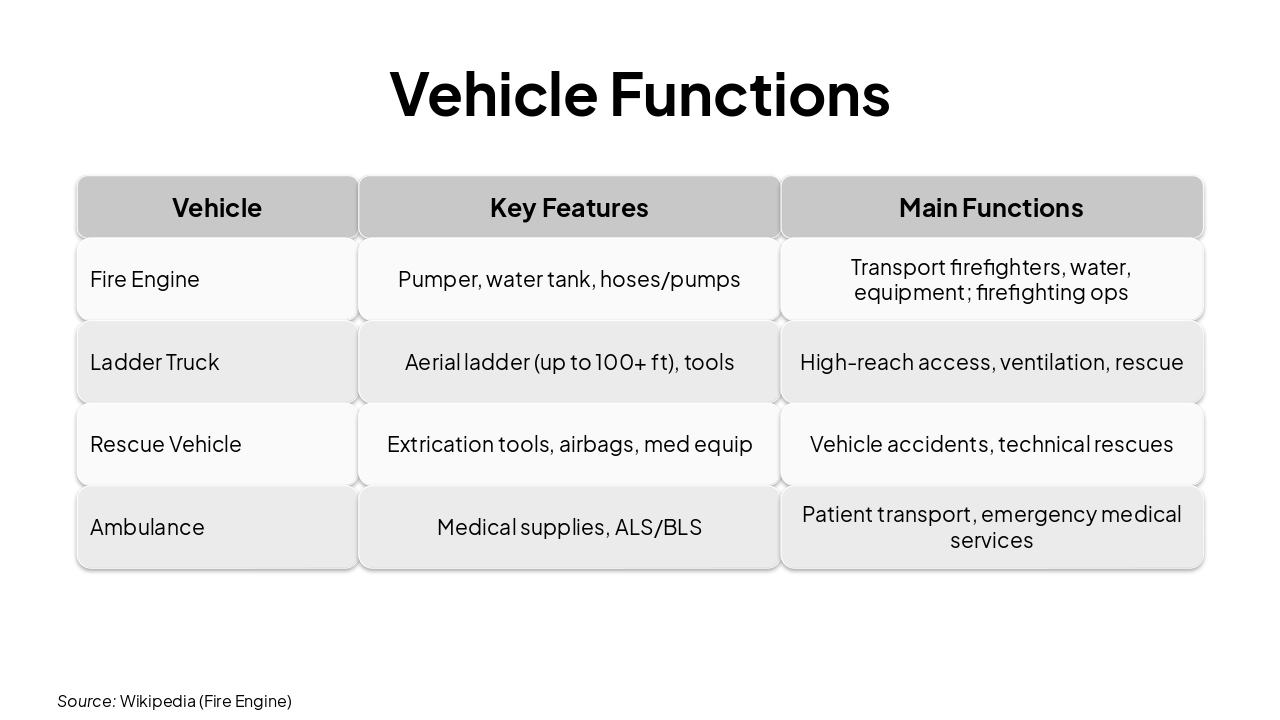

Slide 13 - Vehicle Functions

Vehicle	Key Features	Main Functions
Fire Engine	Pumper, water tank, hoses/pumps	Transport firefighters, water, equipment; firefighting ops
Ladder Truck	Aerial ladder (up to 100+ ft), tools	High-reach access, ventilation, rescue
Rescue Vehicle	Extrication tools, airbags, med equip	Vehicle accidents, technical rescues
Ambulance	Medical supplies, ALS/BLS	Patient transport, emergency medical services

Source: Wikipedia (Fire Engine)

Slide 14 of 20

Slide 14 - 6. Fire Ladders

Types and Safety

Proper Use Guidelines

---

Photo by Dottie Di Liddo on Unsplash

Slide 15 of 20

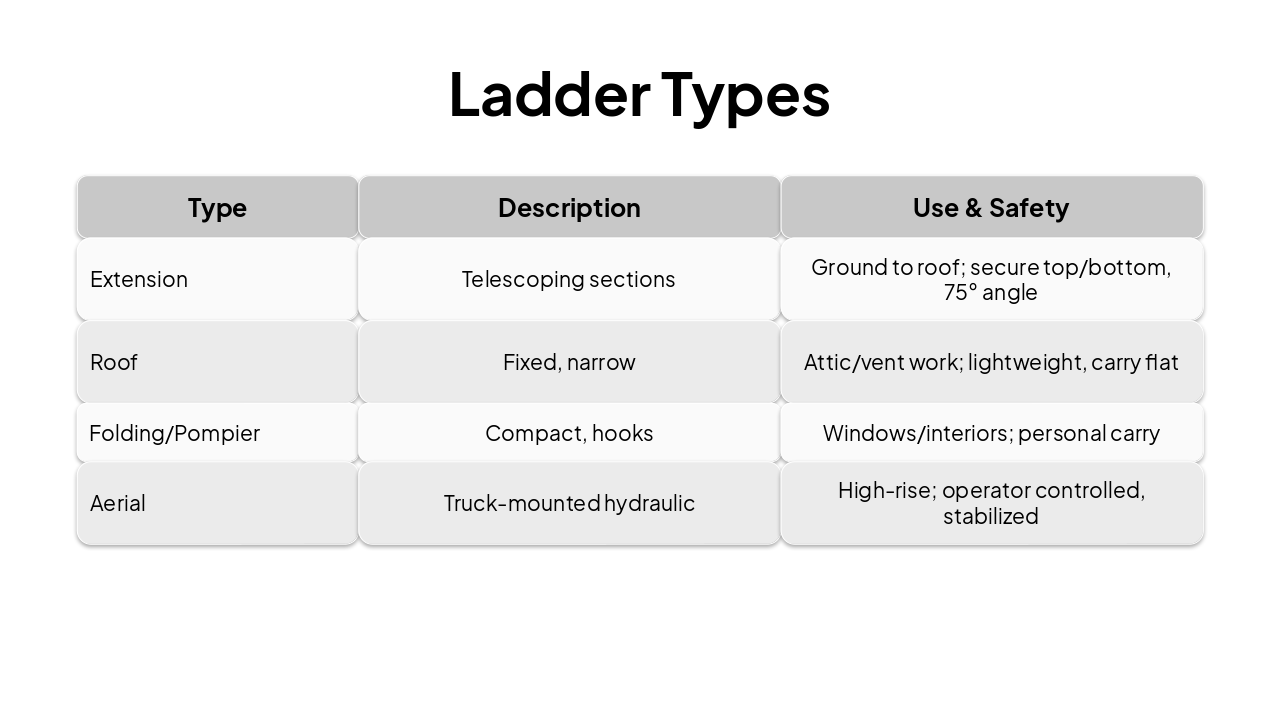

Slide 15 - Ladder Types

Type	Description	Use & Safety
Extension	Telescoping sections	Ground to roof; secure top/bottom, 75° angle
Roof	Fixed, narrow	Attic/vent work; lightweight, carry flat
Folding/Pompier	Compact, hooks	Windows/interiors; personal carry
Aerial	Truck-mounted hydraulic	High-rise; operator controlled, stabilized
