Safety Crimping Applicator: Precision Tooling for Secure Electrical Connections

Generated from prompt:

safety crimping applicator

This presentation provides a comprehensive overview of the Safety Crimping Applicator, a precision tool designed for secure crimping of wire terminals in high-volume production. It covers the introduction and definition, key features such as adjustable crimp height, safety interlocks, quick-change dies, and force monitoring. Detailed safety mechanisms including two-hand controls, light curtains, and anti-pinch guards are highlighted, along with the step-by-step crimping workflow. Key benefits like 99.9% crimp consistency, 10-ton force, 50% time savings, and zero injuries are presented, ending,

May 7, 202612 slides

Slide 1 of 12

Slide 1 - Safety Crimping Applicator

Safety Crimping Applicator

Precision Tooling for Secure Electrical Connections

---

Photo by vahid kanani on Unsplash

Slide 2 of 12

Slide 2 - Presentation Agenda

Introduction
Key Features
Safety Mechanisms
How It Works
Benefits & Applications
Conclusion

---

Photo by Galen Crout on Unsplash

Slide 3 of 12

Slide 3 - Section 1: Introduction

Introduction

Overview of Safety Crimping Applicators

---

Photo by EqualStock on Unsplash

Slide 4 of 12

Slide 4 - What is a Safety Crimping Applicator?

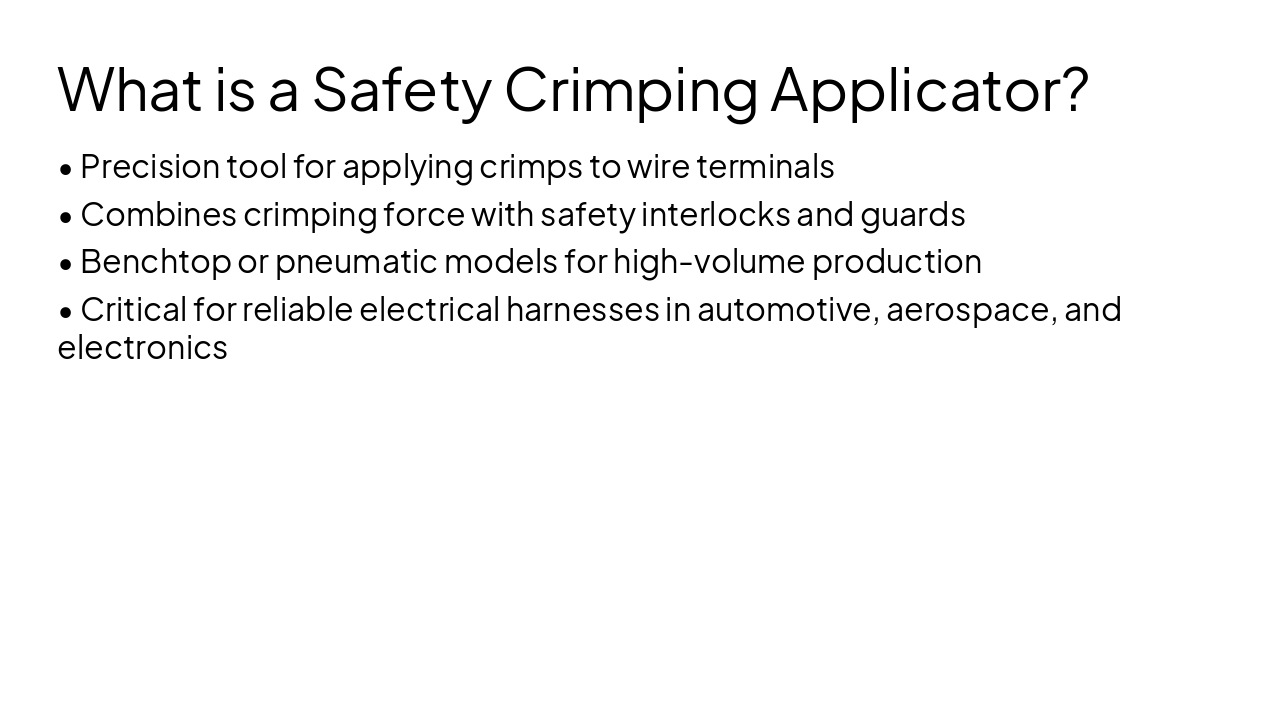

Precision tool for applying crimps to wire terminals
Combines crimping force with safety interlocks and guards
Benchtop or pneumatic models for high-volume production
Critical for reliable electrical harnesses in automotive, aerospace, and electronics

Slide 5 of 12

Slide 5 - Safety Crimping Applicator

Safety guard prevents finger pinch
Quick-change tooling for different terminals
Digital force monitor for consistency

---

Photo by TECNIC Bioprocess Solutions on Unsplash

Slide 6 of 12

Slide 6 - Section 2: Key Features

Key Features

Engineering Excellence for Performance

---

Photo by Yoga Sukma 🇮🇩 on Unsplash

Slide 7 of 12

Slide 7 - Core Features

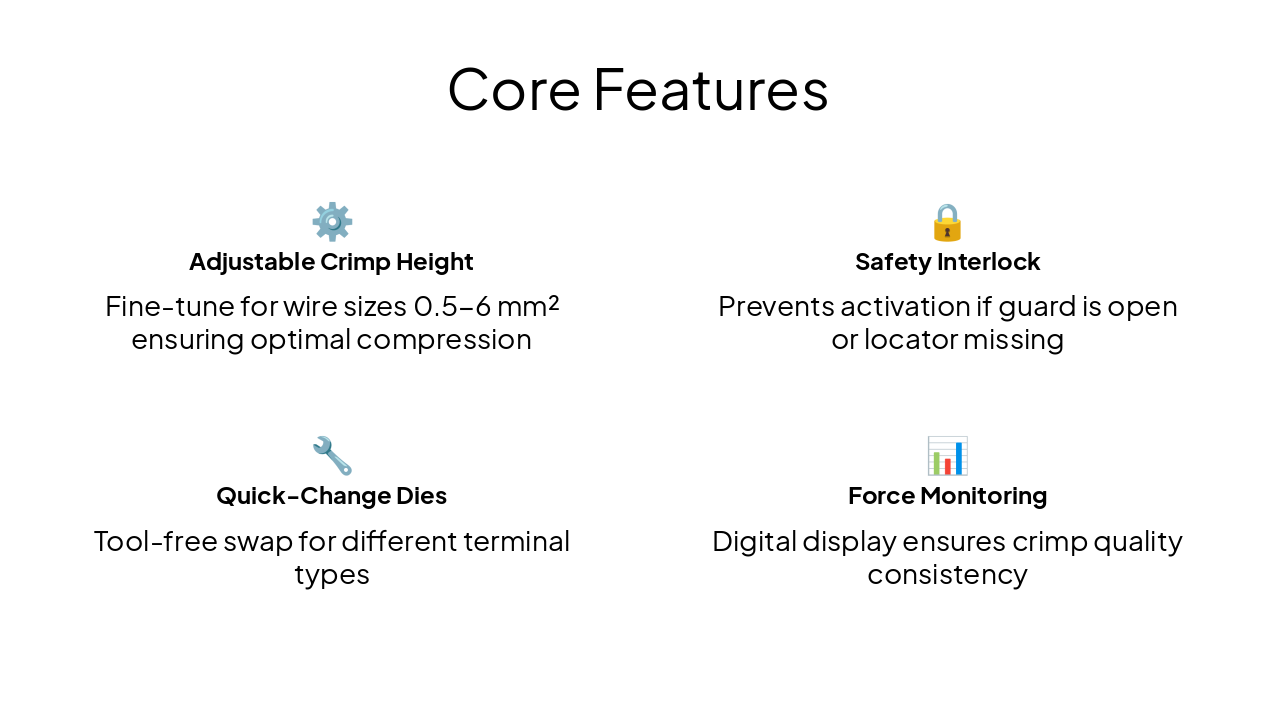

⚙️ Adjustable Crimp Height Fine-tune for wire sizes 0.5-6 mm² ensuring optimal compression

🔒 Safety Interlock Prevents activation if guard is open or locator missing

🔧 Quick-Change Dies Tool-free swap for different terminal types

📊 Force Monitoring Digital display ensures crimp quality consistency

Slide 8 of 12

Slide 8 - Section 3: Safety Mechanisms

Safety Mechanisms

Operator Protection First

---

Photo by Ümit Yıldırım on Unsplash

Slide 9 of 12

Slide 9 - Built-in Safety Features

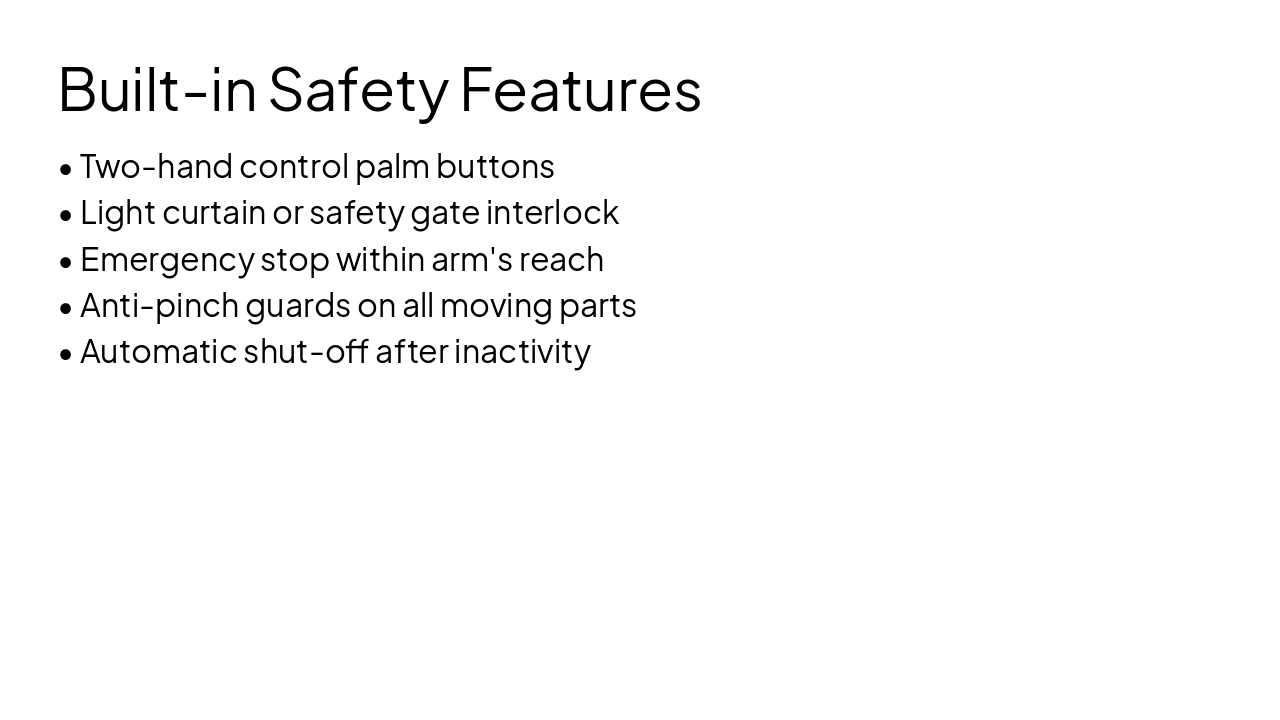

Two-hand control palm buttons
Light curtain or safety gate interlock
Emergency stop within arm's reach
Anti-pinch guards on all moving parts
Automatic shut-off after inactivity

Slide 10 of 12

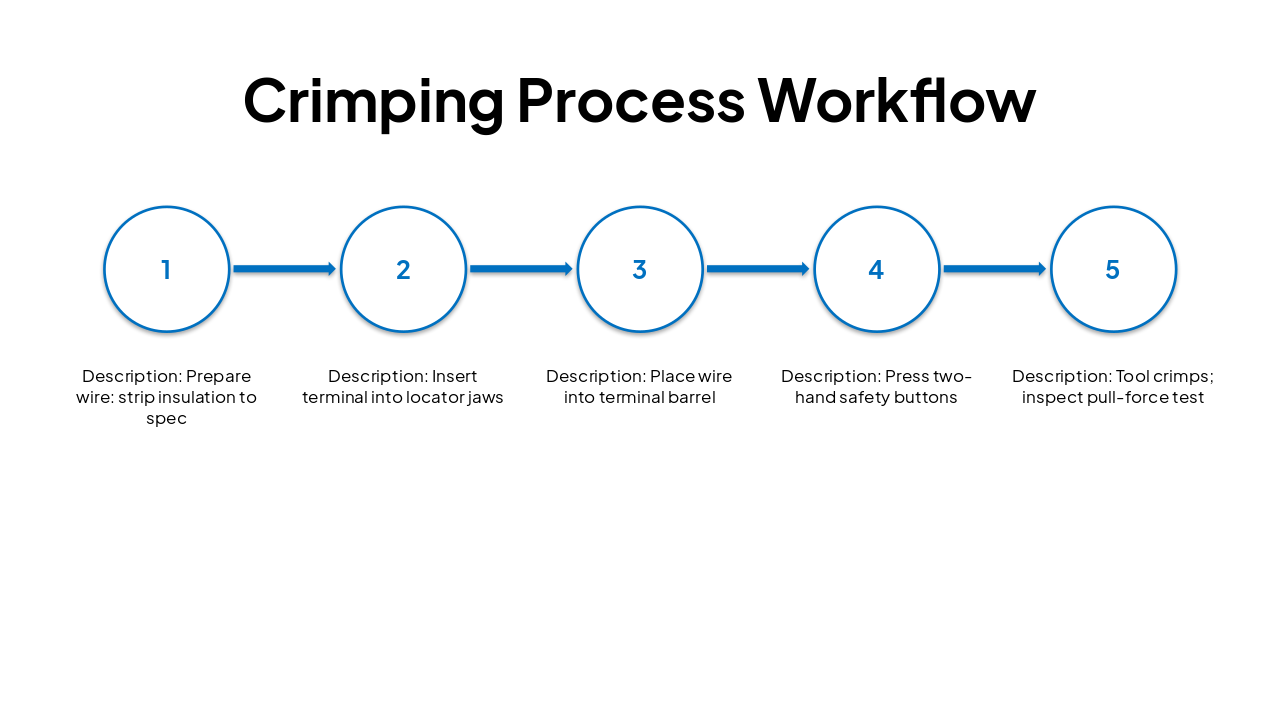

Slide 10 - Crimping Process Workflow

Step	Description
1	Prepare wire: strip insulation to spec
2	Insert terminal into locator jaws
3	Place wire into terminal barrel
4	Press two-hand safety buttons
5	Tool crimps; inspect pull-force test
