Slide 1 - Wie funktioniert ein Touchscreen?

The slide's title, "Wie funktioniert ein Touchscreen?", introduces the topic of how touchscreens work. Its subtitle promises an illustrative explanation of various touch technologies.

Wie funktioniert ein Touchscreen?

Eine anschauliche Erklärung verschiedener Touch-Technologien

Speaker Notes
Titelblatt mit Präsentationstitel, Untertitel und Präsentator-Info. Moderne Grafik mit Schaltkreis-Motiv.
Slide 1 - Wie funktioniert ein Touchscreen?
Slide 2 of 12

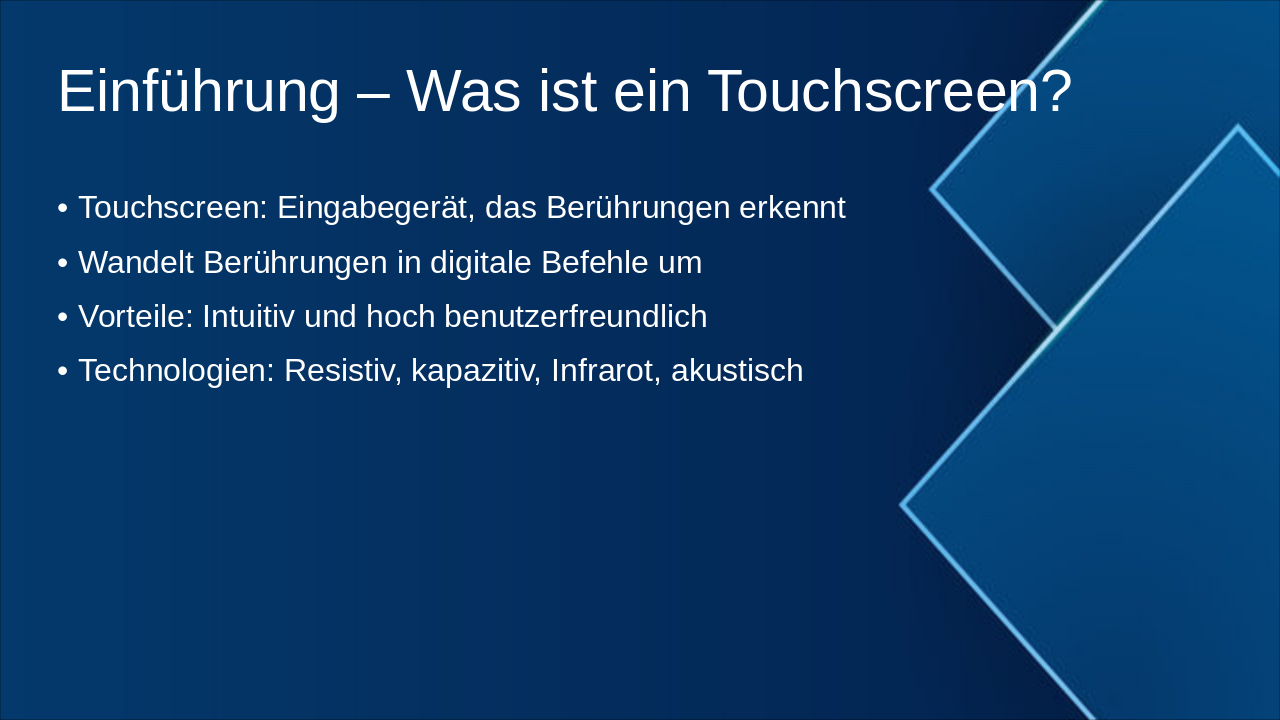

Slide 2 - Einführung – Was ist ein Touchscreen?

A touchscreen is an input device that detects touches and converts them into digital commands, offering intuitive and highly user-friendly advantages. Common technologies include resistive, capacitive, infrared, and acoustic methods.

Einführung – Was ist ein Touchscreen?

  • Touchscreen: Eingabegerät, das Berührungen erkennt
  • Wandelt Berührungen in digitale Befehle um
  • Vorteile: Intuitiv und hoch benutzerfreundlich
  • Technologien: Resistiv, kapazitiv, Infrarot, akustisch
Slide 2 - Einführung – Was ist ein Touchscreen?
Slide 3 of 12

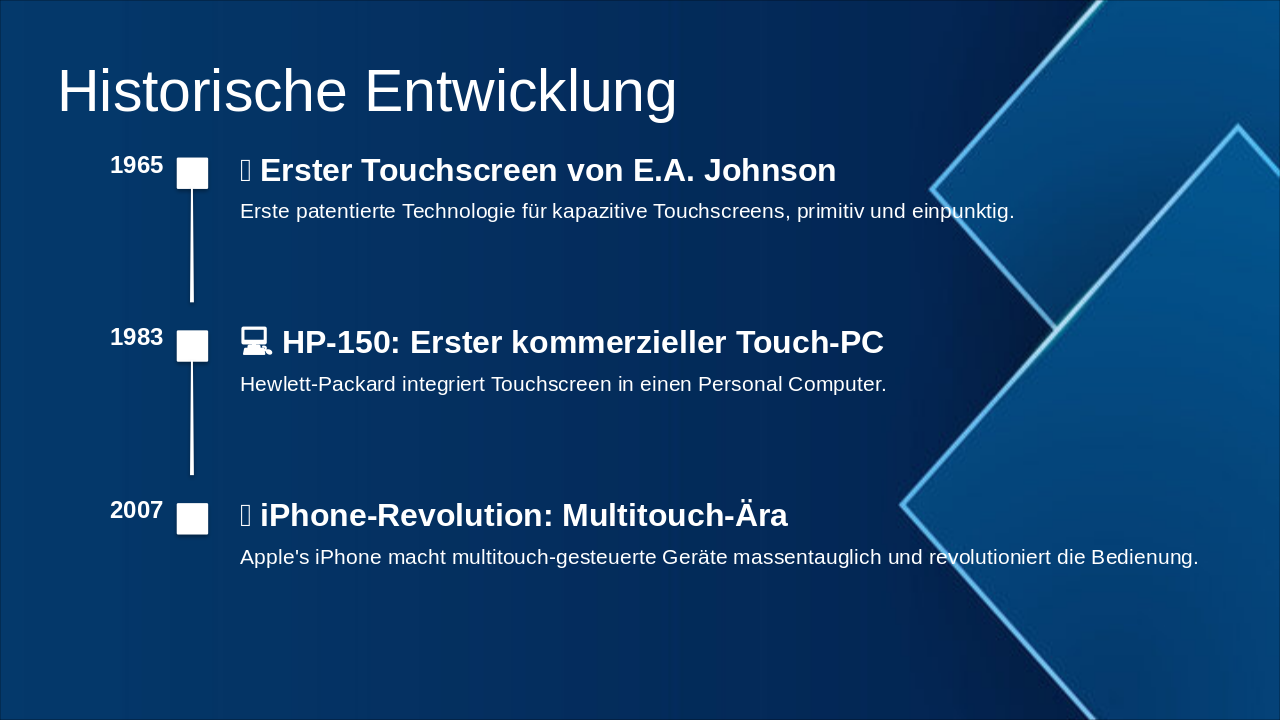

Slide 3 - Historische Entwicklung

Slide 3 - Historische Entwicklung
Slide 4 of 12

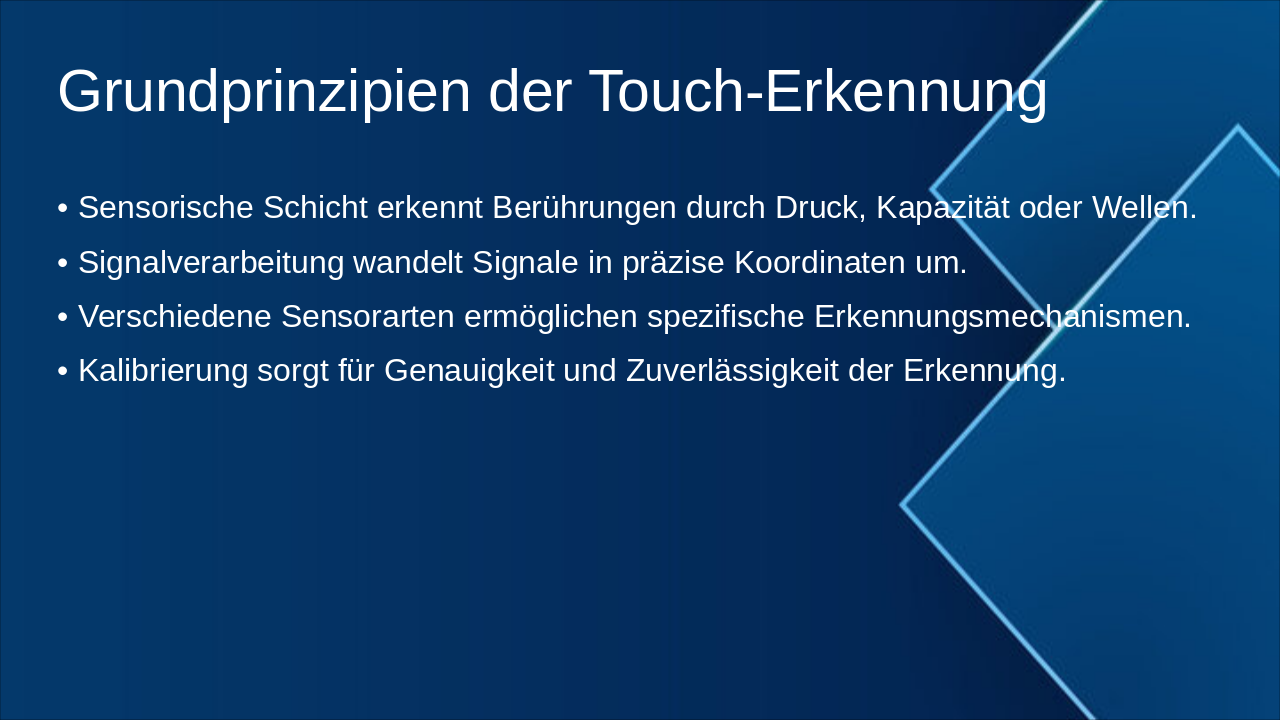

Slide 4 - Grundprinzipien der Touch-Erkennung

The slide outlines the fundamental principles of touch detection, starting with a sensory layer that identifies touches via pressure, capacitance, or waves. It then covers signal processing to convert these into precise coordinates, various sensor types for specific mechanisms, and calibration to ensure accuracy and reliability.

Grundprinzipien der Touch-Erkennung

  • Sensorische Schicht erkennt Berührungen durch Druck, Kapazität oder Wellen.
  • Signalverarbeitung wandelt Signale in präzise Koordinaten um.
  • Verschiedene Sensorarten ermöglichen spezifische Erkennungsmechanismen.
  • Kalibrierung sorgt für Genauigkeit und Zuverlässigkeit der Erkennung.
Slide 4 - Grundprinzipien der Touch-Erkennung
Slide 5 of 12

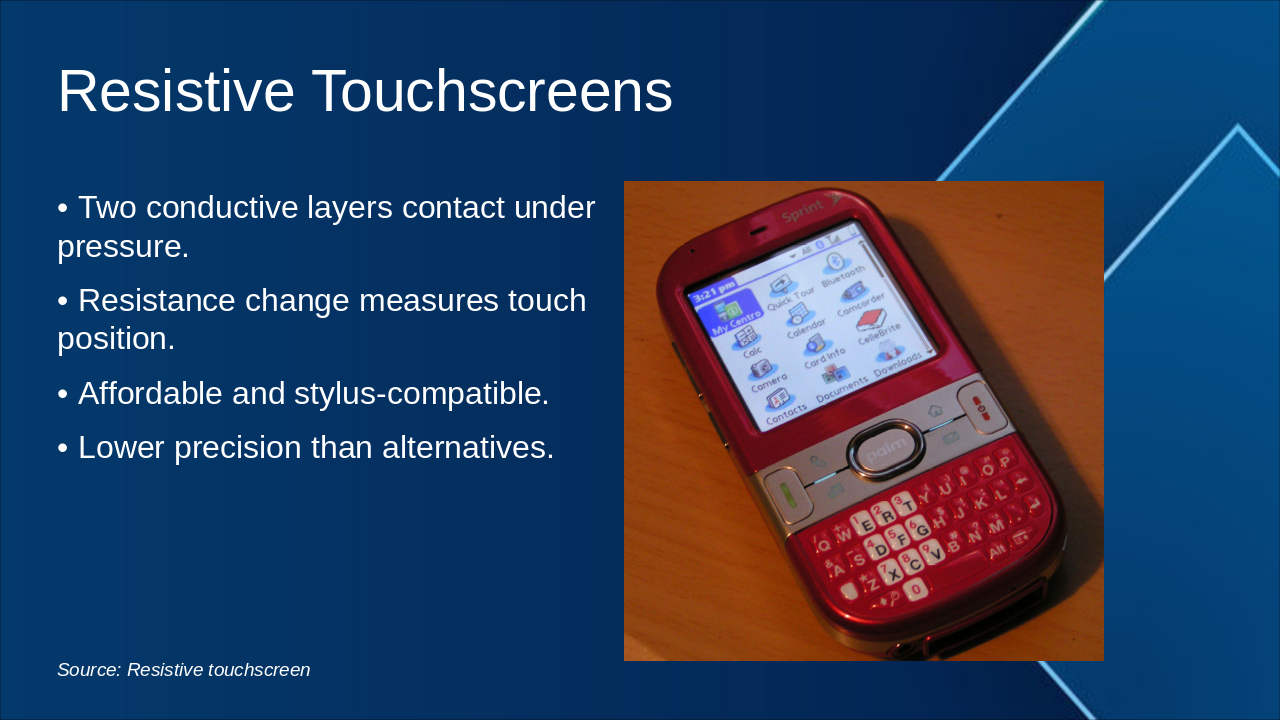

Slide 5 - Resistive Touchscreens

Resistive touchscreens operate by having two conductive layers that contact under pressure, with the resulting resistance change used to measure the touch position. They are affordable and compatible with styluses but offer lower precision compared to other touchscreen technologies.

Resistive Touchscreens

!Image

  • Two conductive layers contact under pressure.
  • Resistance change measures touch position.
  • Affordable and stylus-compatible.
  • Lower precision than alternatives.

Source: Resistive touchscreen

Speaker Notes
Illustration: Zwei leitfähige Schichten, die bei Druck kontaktieren. Funktionsweise: Widerstandsänderung misst Position. Vorteile: Günstig, stylus-kompatibel; Nachteile: Weniger präzise.
Slide 5 - Resistive Touchscreens
Slide 6 of 12

Slide 6 - Kapazitive Touchscreens

Capacitive touchscreens use a conductive glass layer that detects changes in capacitance caused by a finger's touch. They come in surface and projected types, offering advantages like multitouch support and high durability.

Kapazitive Touchscreens

!Image

  • Glas mit leitfähiger Schicht erkennt Kapazitätsänderung durch Finger.
  • Arten: Oberflächen- und Projected Capacitive.
  • Vorteile: Unterstützt Multitouch, hoch langlebig.

Source: Capacitive touchscreen

Speaker Notes
Grafik: Glas mit leitfähiger Schicht, erkennt Kapazitätsänderung durch Finger. Arten: Oberflächen- und Projected Capacitive. Vorteile: Multitouch, langlebig.
Slide 6 - Kapazitive Touchscreens
Slide 7 of 12

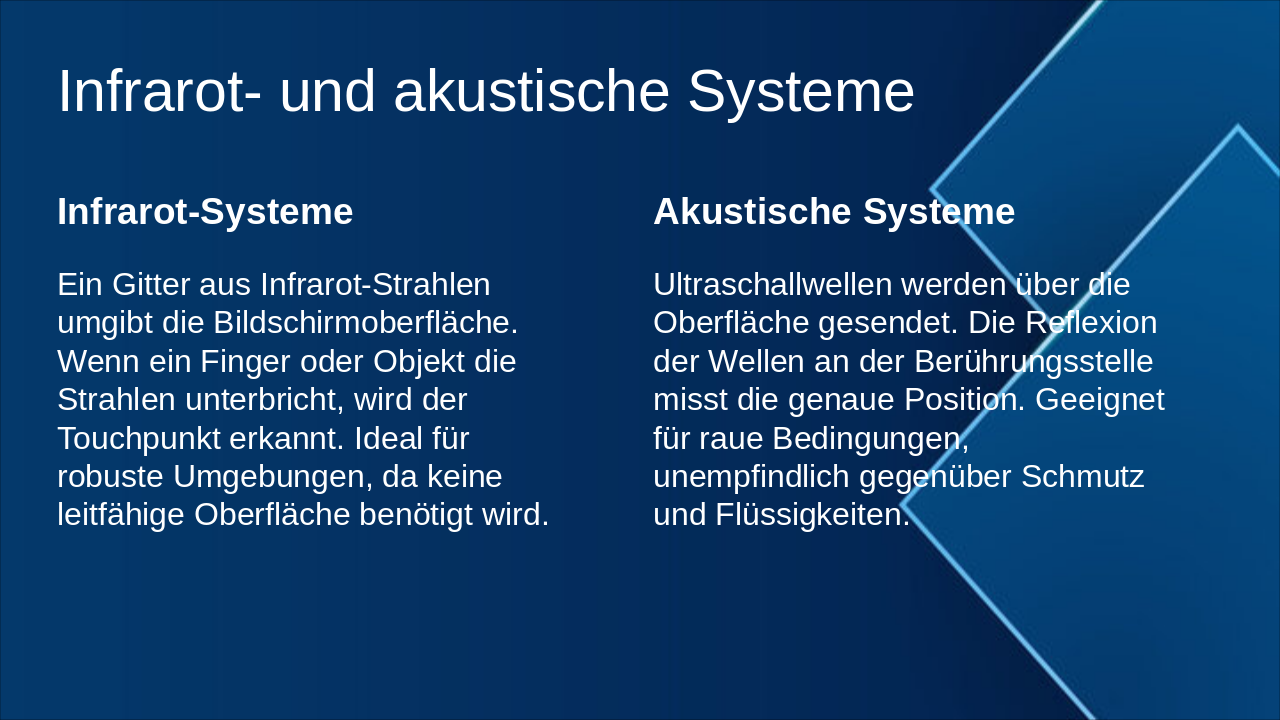

Slide 7 - Infrarot- und akustische Systeme

Infrared systems surround the screen surface with a grid of infrared beams, detecting touch points when a finger or object interrupts them, making them ideal for robust environments without needing a conductive surface. Acoustic systems send ultrasound waves across the surface and measure reflections at the touch point to determine position, rendering them suitable for harsh conditions as they are insensitive to dirt and liquids.

Infrarot- und akustische Systeme

Infrarot-SystemeAkustische Systeme
Ein Gitter aus Infrarot-Strahlen umgibt die Bildschirmoberfläche. Wenn ein Finger oder Objekt die Strahlen unterbricht, wird der Touchpunkt erkannt. Ideal für robuste Umgebungen, da keine leitfähige Oberfläche benötigt wird.Ultraschallwellen werden über die Oberfläche gesendet. Die Reflexion der Wellen an der Berührungsstelle misst die genaue Position. Geeignet für raue Bedingungen, unempfindlich gegenüber Schmutz und Flüssigkeiten.
Slide 7 - Infrarot- und akustische Systeme
Slide 8 of 12

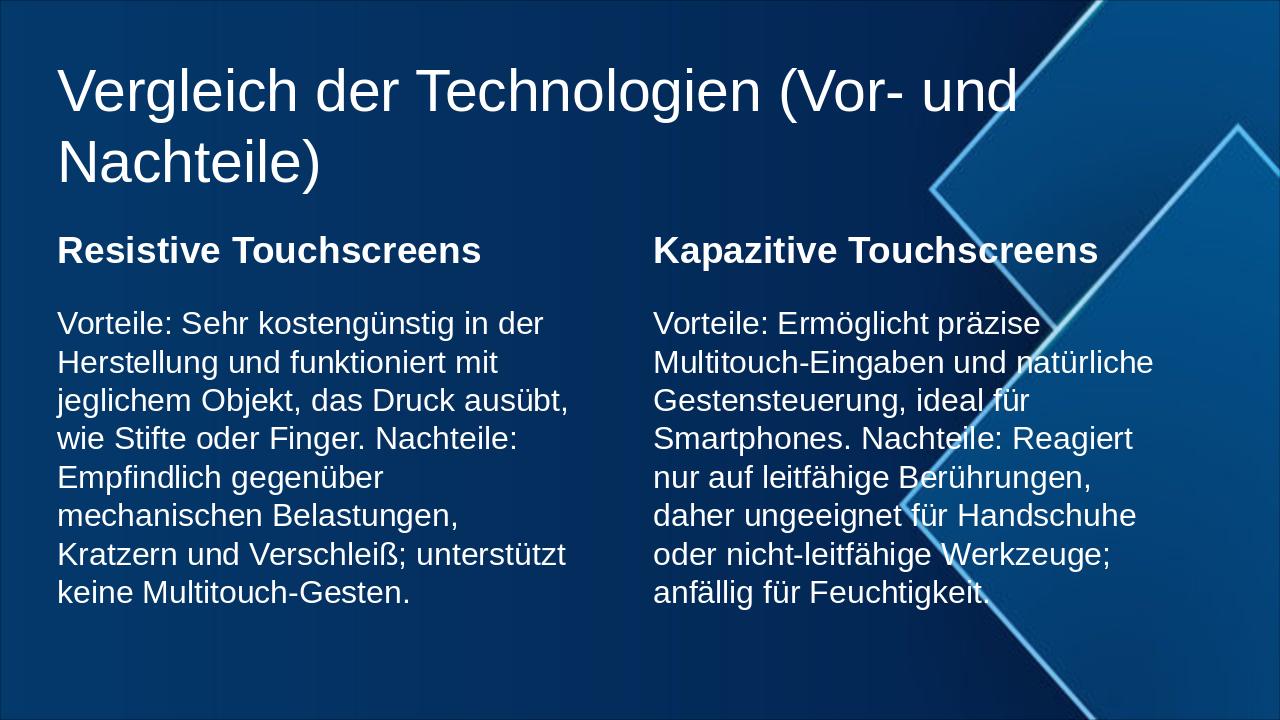

Slide 8 - Vergleich der Technologien (Vor- und Nachteile)

Resistive touchscreens are highly cost-effective and work with any pressure-applying object like fingers or styluses, but they are prone to mechanical damage, scratches, wear, and lack support for multitouch gestures. Capacitive touchscreens enable precise multitouch inputs and natural gesture control, making them ideal for smartphones, though they only respond to conductive touches and are sensitive to moisture or non-conductive tools like gloves.

Vergleich der Technologien (Vor- und Nachteile)

Resistive TouchscreensKapazitive Touchscreens
Vorteile: Sehr kostengünstig in der Herstellung und funktioniert mit jeglichem Objekt, das Druck ausübt, wie Stifte oder Finger. Nachteile: Empfindlich gegenüber mechanischen Belastungen, Kratzern und Verschleiß; unterstützt keine Multitouch-Gesten.Vorteile: Ermöglicht präzise Multitouch-Eingaben und natürliche Gestensteuerung, ideal für Smartphones. Nachteile: Reagiert nur auf leitfähige Berührungen, daher ungeeignet für Handschuhe oder nicht-leitfähige Werkzeuge; anfällig für Feuchtigkeit.
Speaker Notes
Vergleiche die Haupttechnologien. Erwähne Infrarot- und akustische Systeme als robuste Alternativen, die jedoch teurer sind und in speziellen Anwendungen wie Industrie eingesetzt werden. Betone den Trade-off zwischen Kosten, Präzision und Robustheit.
Slide 8 - Vergleich der Technologien (Vor- und Nachteile)
Slide 9 of 12

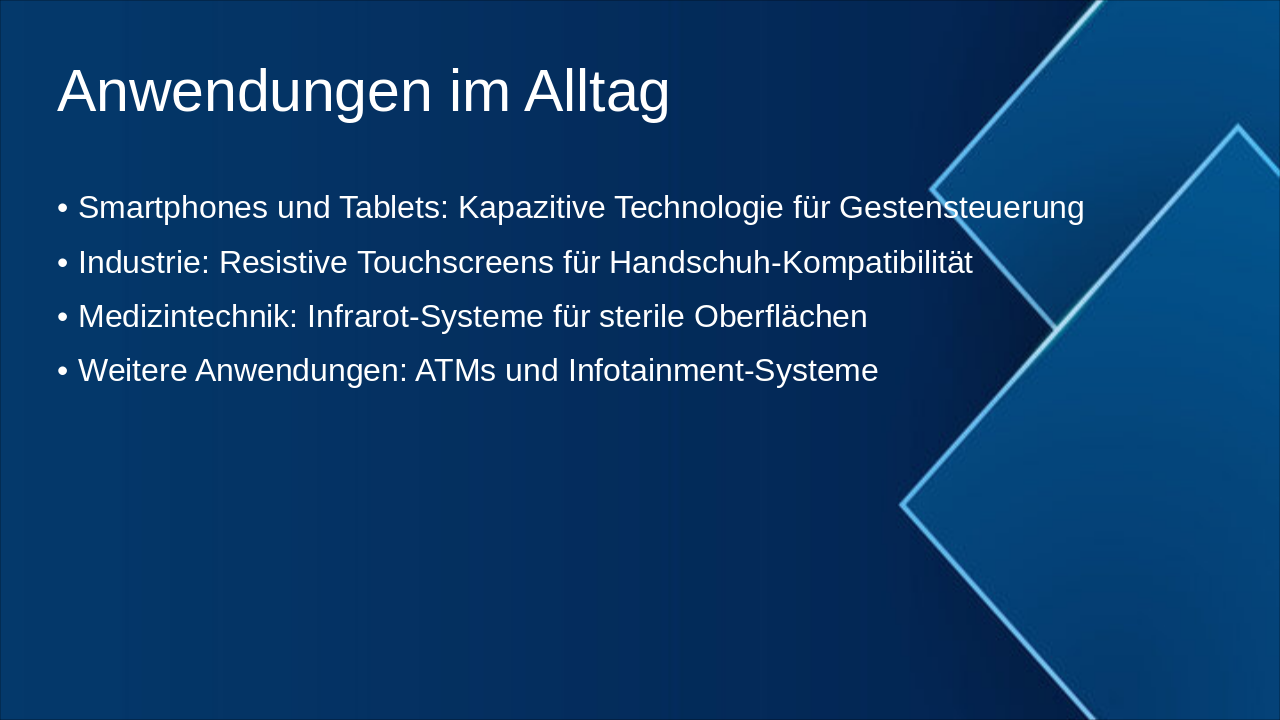

Slide 9 - Anwendungen im Alltag

Capacitive touch technology enables gesture control on everyday devices like smartphones and tablets, while resistive touchscreens in industrial settings support compatibility with gloves. Infrared systems are used in medical technology for sterile surfaces, with additional applications in ATMs and infotainment systems.

Anwendungen im Alltag

  • Smartphones und Tablets: Kapazitive Technologie für Gestensteuerung
  • Industrie: Resistive Touchscreens für Handschuh-Kompatibilität
  • Medizintechnik: Infrarot-Systeme für sterile Oberflächen
  • Weitere Anwendungen: ATMs und Infotainment-Systeme
Slide 9 - Anwendungen im Alltag
Slide 10 of 12

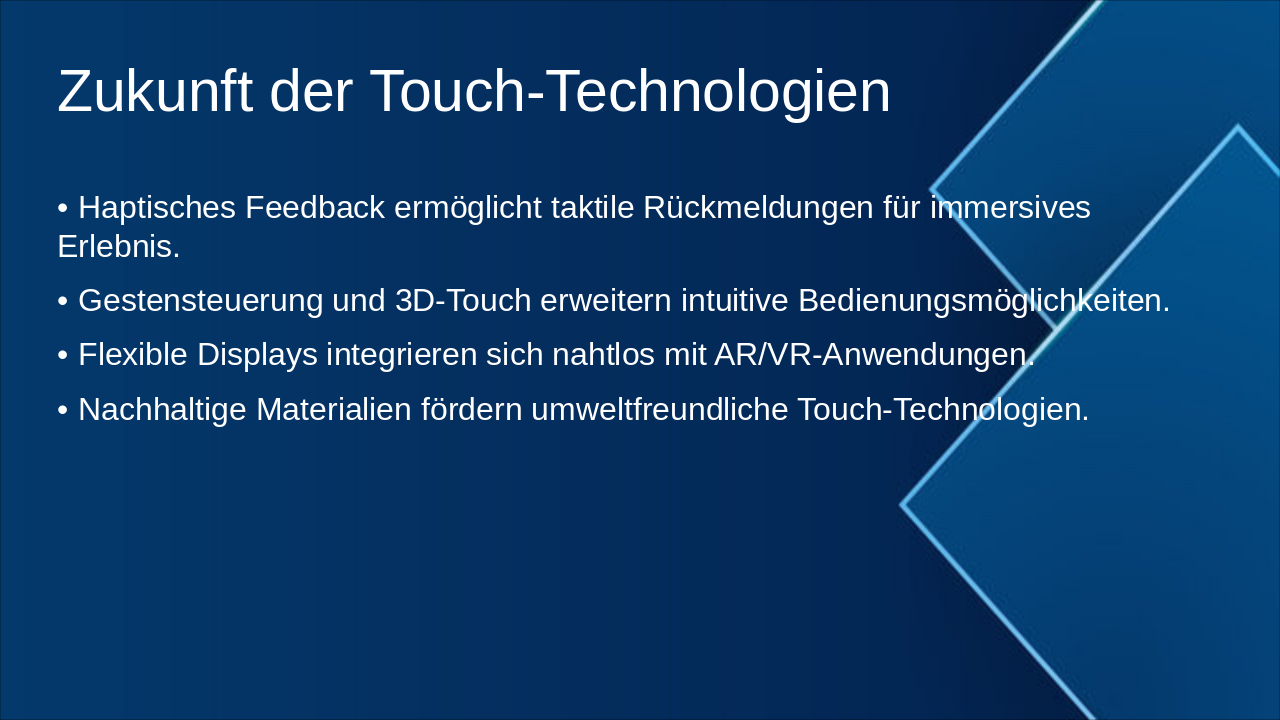

Slide 10 - Zukunft der Touch-Technologien

The slide "Zukunft der Touch-Technologien" explores emerging touch technologies, highlighting how haptic feedback delivers tactile responses for immersive experiences and gesture control with 3D-Touch expands intuitive interactions. It also discusses the integration of flexible displays with AR/VR applications and the use of sustainable materials to promote eco-friendly advancements.

Zukunft der Touch-Technologien

  • Haptisches Feedback ermöglicht taktile Rückmeldungen für immersives Erlebnis.
  • Gestensteuerung und 3D-Touch erweitern intuitive Bedienungsmöglichkeiten.
  • Flexible Displays integrieren sich nahtlos mit AR/VR-Anwendungen.
  • Nachhaltige Materialien fördern umweltfreundliche Touch-Technologien.
Slide 10 - Zukunft der Touch-Technologien
Slide 11 of 12

Slide 11 - Fazit und Zusammenfassung

The slide's title, "Fazit und Zusammenfassung," serves as a conclusion summarizing how touchscreens are revolutionizing user interactions, highlighting the most important technologies and their key strengths. Its subtitle, "Die Zukunft ist berührbar!" (The future is touchable!), emphasizes an optimistic vision of tactile innovation.

Fazit und Zusammenfassung

Touchscreens revolutionieren die Interaktion. Wichtigste Technologien und ihre Stärken.

Die Zukunft ist berührbar!

Source: Präsentation: Wie funktioniert ein Touchscreen?

Speaker Notes
Schließe mit einem Aufruf ab: Die Zukunft der Touch-Technologien ist greifbar – erkunden Sie sie!
Slide 11 - Fazit und Zusammenfassung
Slide 12 of 12

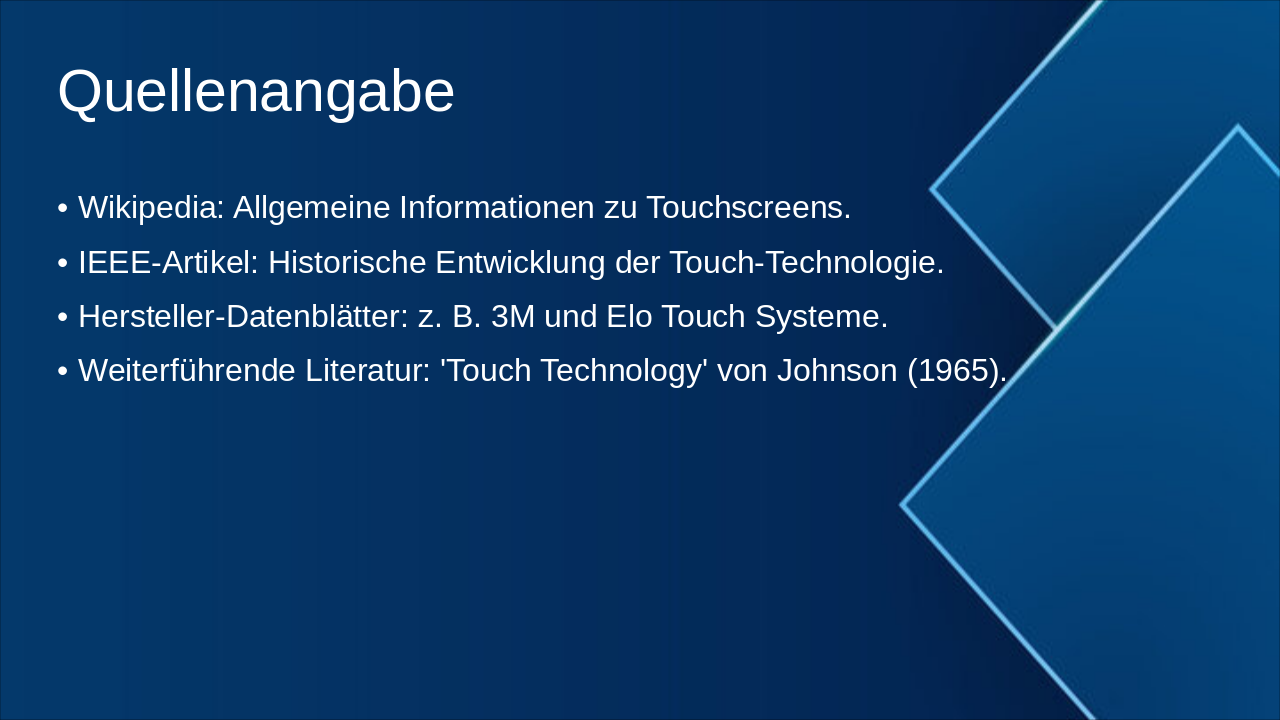

Slide 12 - Quellenangabe

The slide titled "Quellenangabe" lists key sources for information on touchscreens, including Wikipedia for general details and an IEEE article on the historical development of touch technology. It also references manufacturer data sheets from companies like 3M and Elo Touch Systems, along with further reading such as the 1965 book "Touch Technology" by Johnson.

Quellenangabe

  • Wikipedia: Allgemeine Informationen zu Touchscreens.
  • IEEE-Artikel: Historische Entwicklung der Touch-Technologie.
  • Hersteller-Datenblätter: z. B. 3M und Elo Touch Systeme.
  • Weiterführende Literatur: 'Touch Technology' von Johnson (1965).
Slide 12 - Quellenangabe
