Slide 1 - SOLAR CELL

This title slide introduces solar cells as opto-electronic devices. It states that they convert solar energy into electrical energy based on the photovoltaic effect.

Opto-Electronic Devices

Converts solar energy into electrical energy Based on photovoltaic effect

Source: Prepared by: Yashu

Slide 1 - SOLAR CELL
Slide 2 of 17

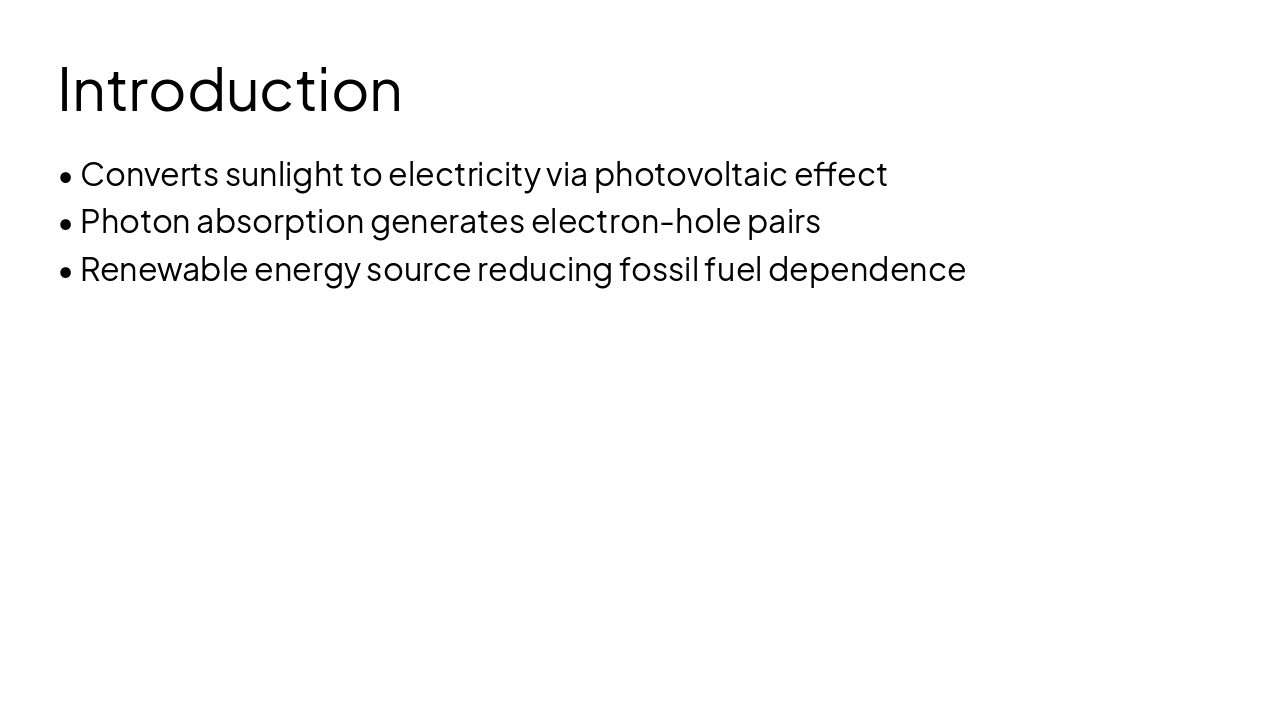

Slide 2 - Introduction

This introductory slide explains how solar cells convert sunlight to electricity via the photovoltaic effect, where photon absorption generates electron-hole pairs. It emphasizes solar energy as a renewable source that reduces fossil fuel dependence.

Introduction

  • Converts sunlight to electricity via photovoltaic effect
  • Photon absorption generates electron-hole pairs
  • Renewable energy source reducing fossil fuel dependence
Slide 2 - Introduction
Slide 3 of 17

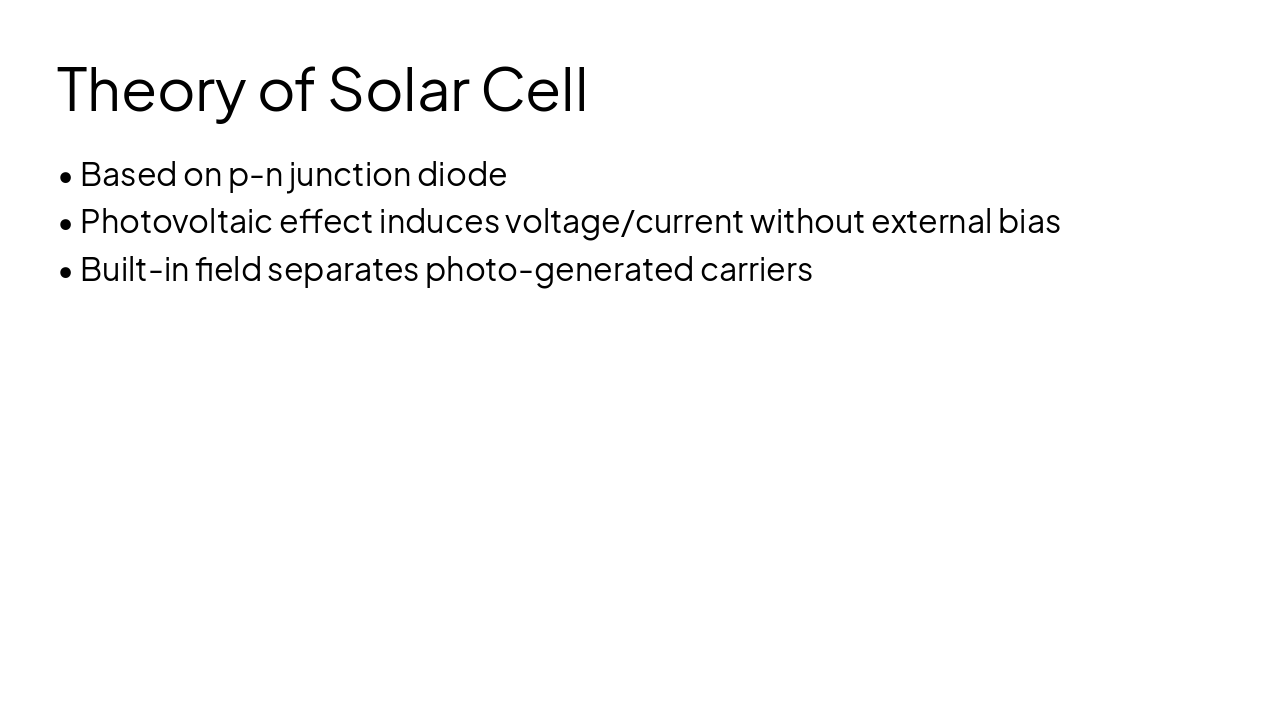

Slide 3 - Theory of Solar Cell

Solar cells are based on p-n junction diodes, where the photovoltaic effect generates voltage and current without external bias. The built-in electric field separates photo-generated charge carriers.

Theory of Solar Cell

  • Based on p-n junction diode
  • Photovoltaic effect induces voltage/current without external bias
  • Built-in field separates photo-generated carriers
Slide 3 - Theory of Solar Cell
Slide 4 of 17

Slide 4 - Construction of Solar Cell

The slide depicts the construction of a solar cell, featuring n-type silicon as the top layer and p-type silicon as the bottom layer. It also includes an anti-reflective coating on top, along with metal contacts and encapsulation.

Construction of Solar Cell

!Image

  • n-type silicon as top layer
  • p-type silicon as bottom layer
  • anti-reflective coating on top
  • metal contacts and encapsulation

Source: solar cell construction

Speaker Notes
Materials: Doped silicon.
Slide 4 - Construction of Solar Cell
Slide 5 of 17

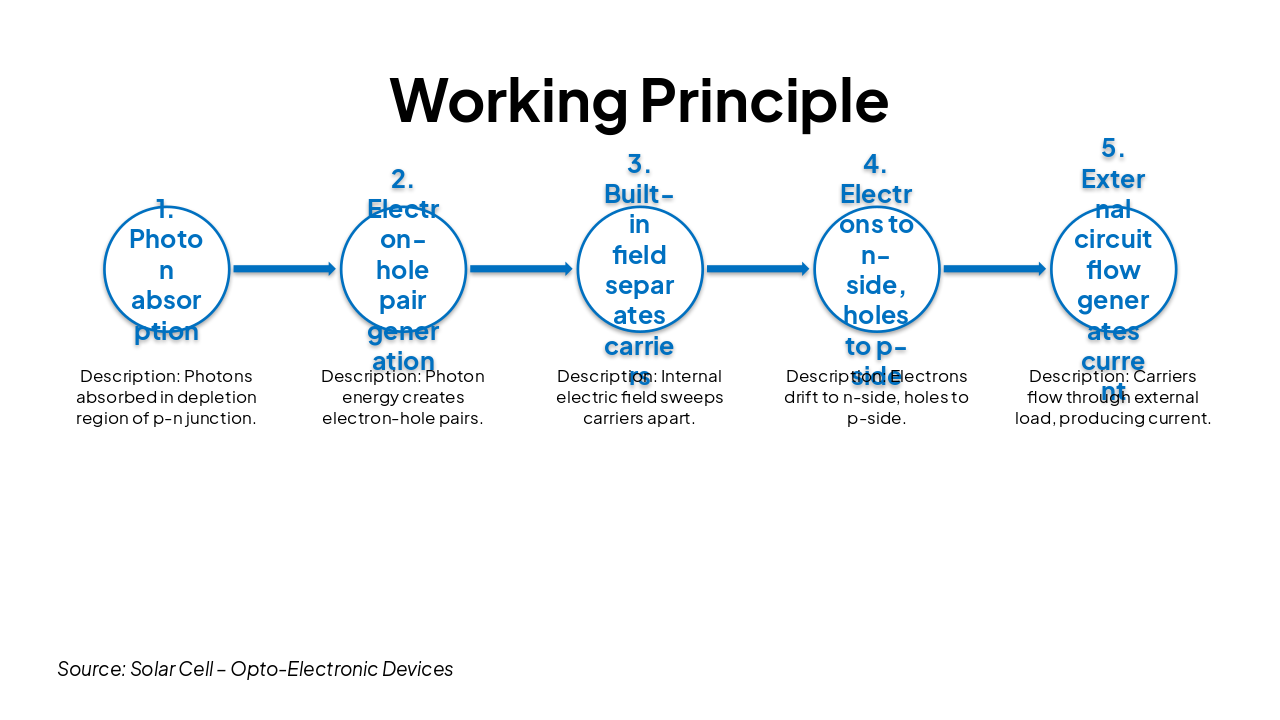

Slide 5 - Working Principle

The slide outlines the working principle of a p-n junction photovoltaic cell in a five-step workflow. Photons are absorbed in the depletion region to generate electron-hole pairs, which the built-in field separates—driving electrons to the n-side and holes to the p-side—before carriers flow through an external circuit to produce current.

Working Principle

{ "headers": [ "Step", "Description" ], "rows": [ [ "1. Photon absorption", "Photons absorbed in depletion region of p-n junction." ], [ "2. Electron-hole pair generation", "Photon energy creates electron-hole pairs." ], [ "3. Built-in field separates carriers", "Internal electric field sweeps carriers apart." ], [ "4. Electrons to n-side, holes to p-side", "Electrons drift to n-side, holes to p-side." ], [ "5. External circuit flow generates current", "Carriers flow through external load, producing current." ] ] }

Source: Solar Cell – Opto-Electronic Devices

Speaker Notes
Step-by-step explanation: 1. Photon absorption in depletion region. 2. Electron-hole pair generation. 3. Built-in field separates carriers. 4. Electrons to n-side, holes to p-side. 5. External circuit flow generates current.
Slide 5 - Working Principle
Slide 6 of 17

Slide 6 - Working Diagram

The "Working Diagram" slide depicts the photovoltaic process in a solar cell p-n junction. Sunlight excites electrons in the p-layer, which the electric field sweeps to the n-layer as holes move to the p-layer, enabling current flow through an external load.

Working Diagram

!Image

  • Sunlight photons excite electrons in p-layer.
  • Electric field sweeps electrons to n-layer.
  • Holes move to p-layer.
  • Current flows through external load.

Source: Wikipedia

Speaker Notes
Explain the step-by-step process of sunlight generating current in the p-n junction solar cell using the diagram.
Slide 6 - Working Diagram
Slide 7 of 17

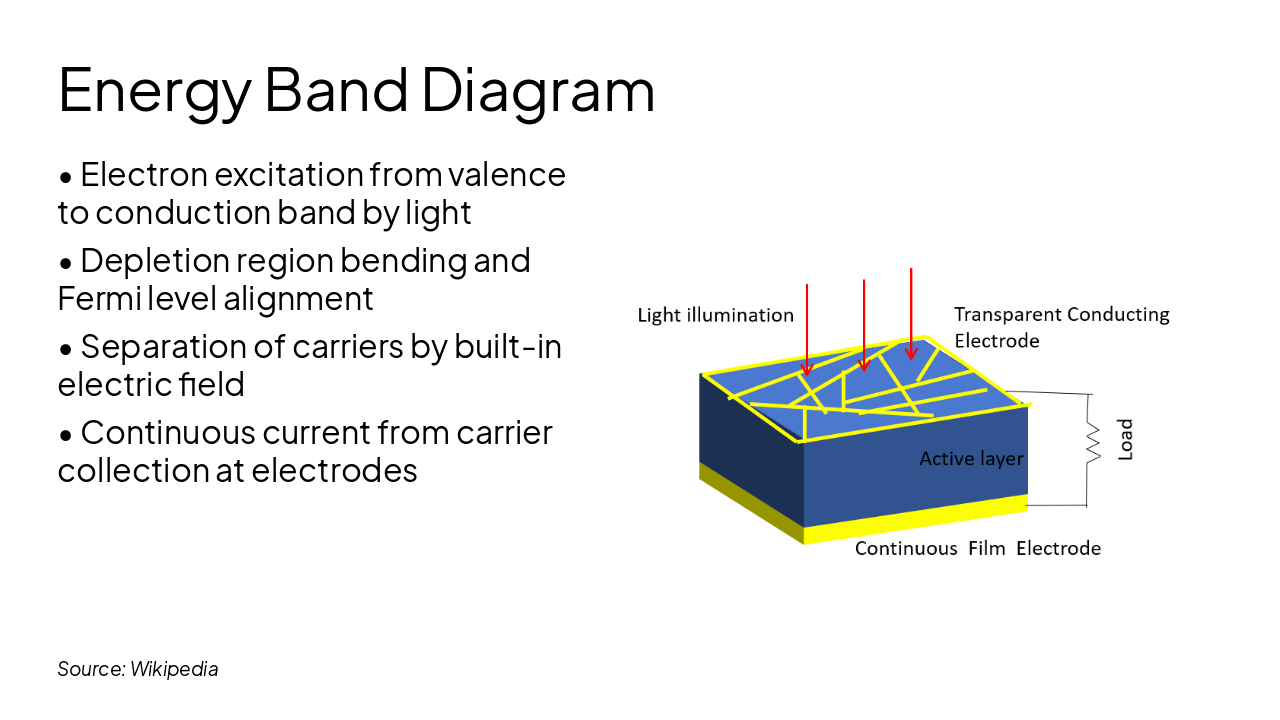

Slide 7 - Energy Band Diagram

The slide's energy band diagram depicts light exciting electrons from the valence band to the conduction band, forming carriers in a depletion region with band bending and aligned Fermi levels. A built-in electric field separates these carriers, enabling continuous current collection at the electrodes.

Energy Band Diagram

!Image

  • Electron excitation from valence to conduction band by light
  • Depletion region bending and Fermi level alignment
  • Separation of carriers by built-in electric field
  • Continuous current from carrier collection at electrodes

Source: Wikipedia

Speaker Notes
Diagram: Before/after light - valence to conduction band excitation. Shows Fermi level, depletion region bend, continuous current from carrier collection.
Slide 7 - Energy Band Diagram
Slide 8 of 17

Slide 8 - Important Formulae

The "Important Formulae" slide presents three key photovoltaic equations: photocurrent (Iph = q GL A), fill factor (FF = (Vmp Imp) / (Voc Isc)), and power (P = V I). Each includes a brief description of variables and concepts, such as generation rate, maximum power points, and electrical output.

Important Formulae

  • Iph = q (GL A): Photocurrent
  • q=charge, GL=generation rate, A=area

  • FF = (Vmp Imp) / (Voc I_sc): Fill Factor
  • Ratio at max power to open/short circuit

  • P = V I: Power
  • Electrical output power

Slide 8 - Important Formulae
Slide 9 of 17

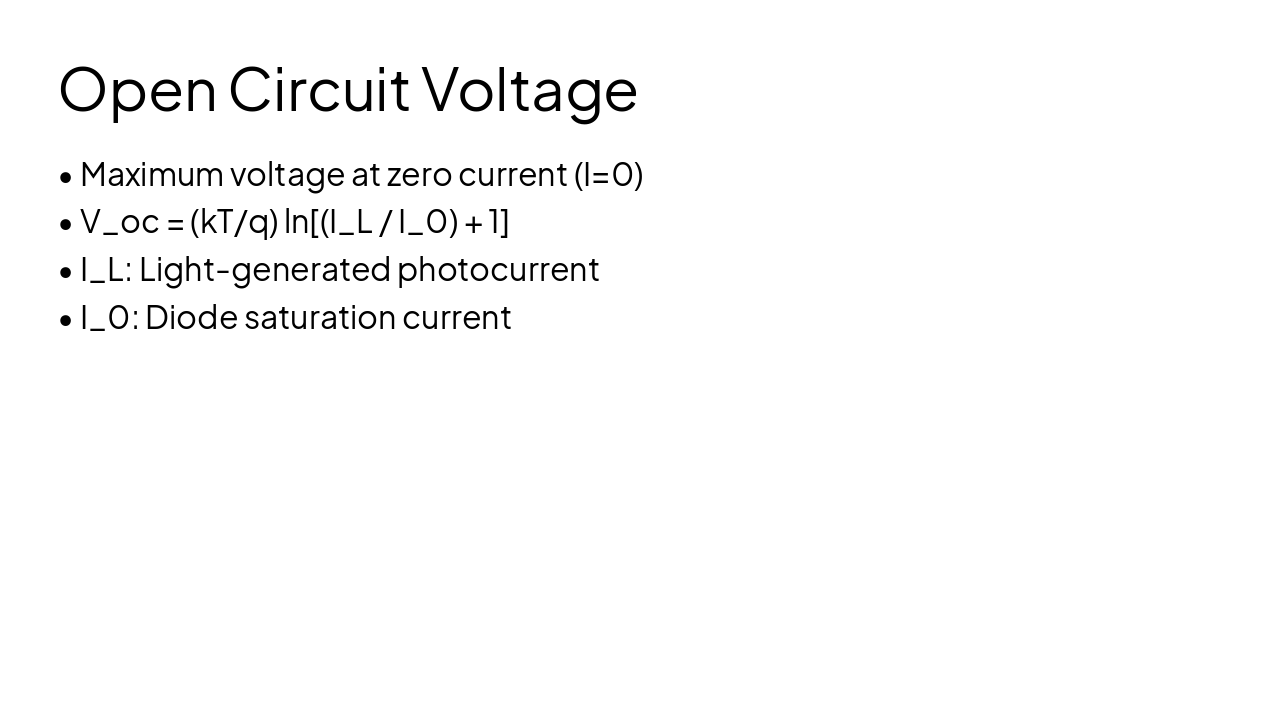

Slide 9 - Open Circuit Voltage

Open Circuit Voltage (Voc) is the maximum voltage across a solar cell at zero current (I=0). The slide gives the formula Voc = (kT/q) ln[(IL / I0) + 1], where IL is the light-generated photocurrent and I0 is the diode saturation current.

Open Circuit Voltage

  • Maximum voltage at zero current (I=0)
  • Voc = (kT/q) ln[(IL / I0) + 1]
  • IL: Light-generated photocurrent
  • I_0: Diode saturation current
Slide 9 - Open Circuit Voltage
Slide 10 of 17

Slide 10 - Efficiency

The slide defines solar cell efficiency (η) as (Pmax / Pin) × 100%, where Pmax is maximum output power and Pin is standard incident light (1000 W/m²). It also gives an equivalent formula η = (Voc × Isc × FF / Pin) × 100%, with FF as the fill factor.

Efficiency

  • η = (Pmax / Pin) × 100%
  • η = (Voc × Isc × FF / Pin) × 100%
  • Pmax: Maximum output power
  • Pin: Incident light (1000 W/m² standard)
  • FF: Fill factor
Slide 10 - Efficiency
Slide 11 of 17

Slide 11 - I–V Characteristics

The slide displays an I-V characteristics curve, labeling Isc as short-circuit current at V=0 and Voc as open-circuit voltage at I=0. It also highlights the MPP for maximum power efficiency and the knee region as the sharp bend near MPP.

I–V Characteristics

!Image

  • Isc: Short-circuit current at V=0
  • V_oc: Open-circuit voltage at I=0
  • MPP: Maximum power point for peak efficiency
  • Knee region: Sharp bend near MPP

Source: Wikipedia: Solar cell

Speaker Notes
Graph: I vs V curve showing I_sc (short circuit current), V_oc (open circuit voltage), MPP (max power point). Explains knee region.
Slide 11 - I–V Characteristics
Slide 12 of 17

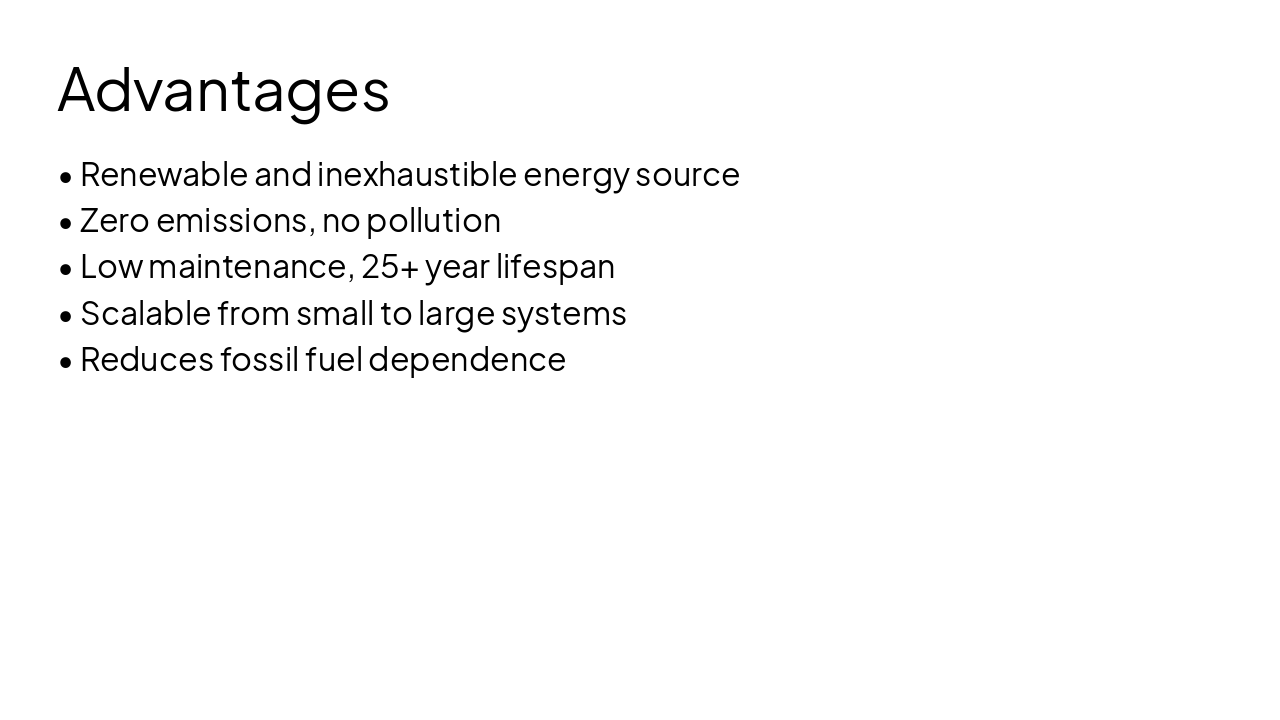

Slide 12 - Advantages

This slide lists key advantages of a renewable energy source, including its inexhaustible nature, zero emissions, low maintenance, and 25+ year lifespan. It is also scalable from small to large systems and reduces dependence on fossil fuels.

Advantages

  • Renewable and inexhaustible energy source
  • Zero emissions, no pollution
  • Low maintenance, 25+ year lifespan
  • Scalable from small to large systems
  • Reduces fossil fuel dependence
Slide 12 - Advantages
Slide 13 of 17

Slide 13 - Limitations

Solar power systems face limitations such as high initial costs and dependence on intermittent sunlight. They also suffer from lower efficiency (typically 15-22%) and require large areas for significant power generation.

Limitations

  • High initial cost
  • Dependent on sunlight (intermittent)
  • Lower efficiency (15-22% typical)
  • Requires large area for significant power
Slide 13 - Limitations
Slide 14 of 17

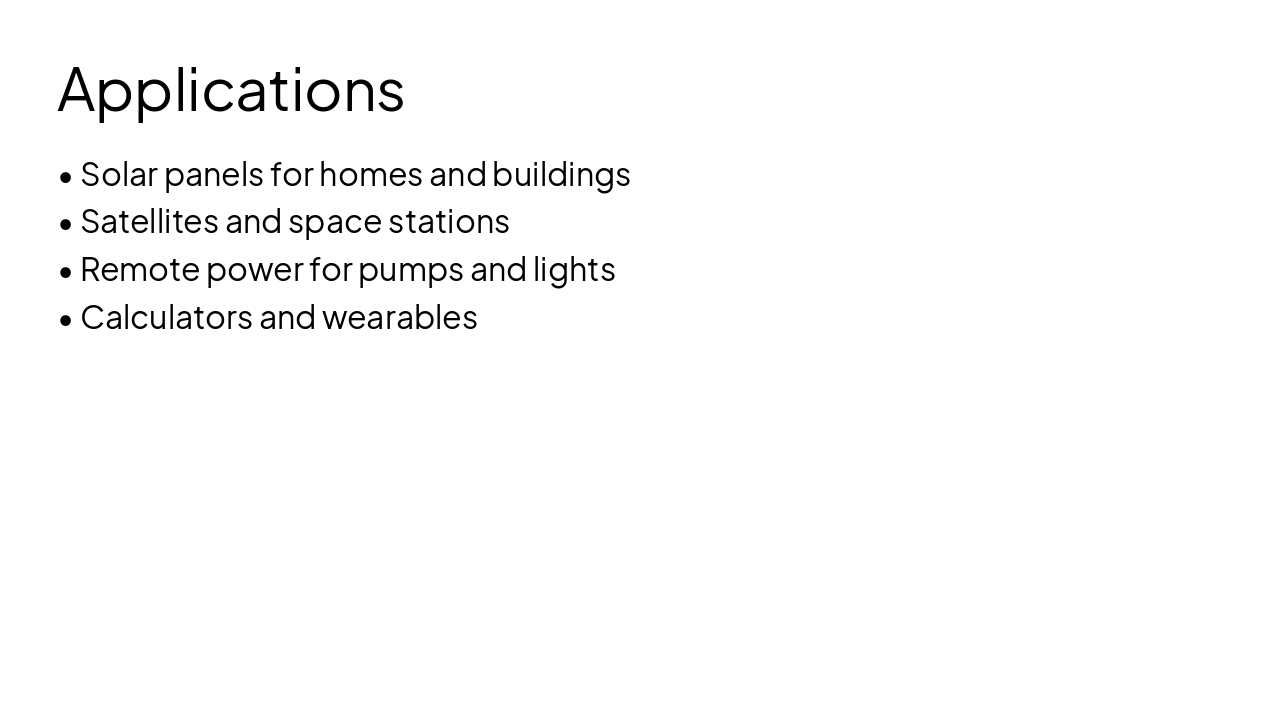

Slide 14 - Applications

The "Applications" slide lists key uses of solar technology. It highlights solar panels for homes and buildings, satellites and space stations, remote power for pumps and lights, and calculators and wearables.

Applications

  • Solar panels for homes and buildings
  • Satellites and space stations
  • Remote power for pumps and lights
  • Calculators and wearables
Slide 14 - Applications
Slide 15 of 17

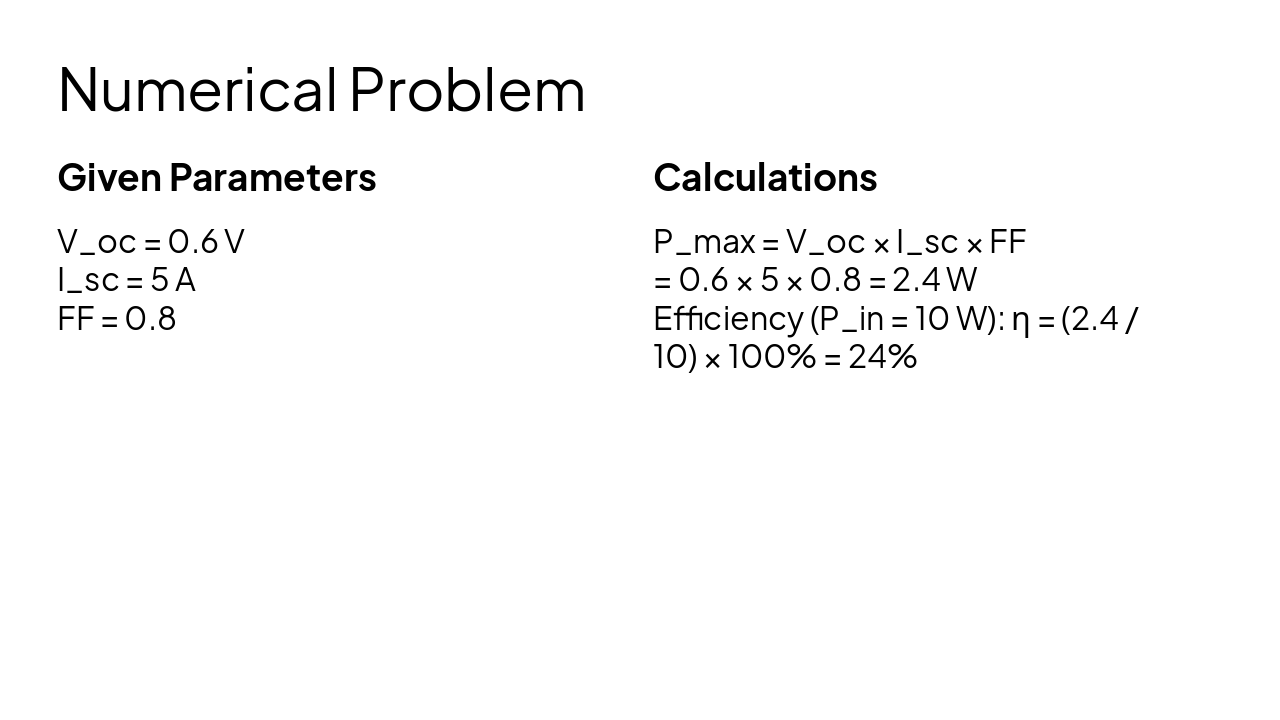

Slide 15 - Numerical Problem

The slide lists given parameters for a numerical problem: open-circuit voltage (Voc) of 0.6 V, short-circuit current (Isc) of 5 A, and fill factor (FF) of 0.8. It then calculates maximum power (Pmax) as 2.4 W and efficiency as 24% based on an input power of 10 W.

Numerical Problem

Given ParametersCalculations

| Voc = 0.6 V Isc = 5 A FF = 0.8 | Pmax = Voc × Isc × FF = 0.6 × 5 × 0.8 = 2.4 W Efficiency (P_in = 10 W): η = (2.4 / 10) × 100% = 24% |

Slide 15 - Numerical Problem
Slide 16 of 17

Slide 16 - Conclusion

Solar cells harness the photovoltaic effect to generate clean energy, making them essential for a sustainable future and carbon reduction. The slide envisions higher efficiency through new materials, with the subtitle stating "Solar cells power sustainable tomorrow."

Conclusion

• Harness photovoltaic effect for clean energy

  • Essential for sustainable future & carbon reduction
  • Future: Higher efficiency with new materials

Solar cells power sustainable tomorrow.

Source: Solar Cell – Opto-Electronic Devices

Speaker Notes
Solar cells harness photovoltaic effect for clean energy. Vital for sustainable future, reducing carbon footprint. Future: Higher efficiency via new materials. Closing message: Solar cells power sustainable tomorrow. (5 words) Call-to-action: Embrace solar energy for a greener planet. (6 words)
Slide 16 - Conclusion
Slide 17 of 17

Slide 17 - Thank You

This is a title slide named "Thank You." It displays the main text "Questions?" with no subtitle.

Questions?

Source: Prepared by: Yashu

Speaker Notes
Questions?
Slide 17 - Thank You
