Slide 1 of 5

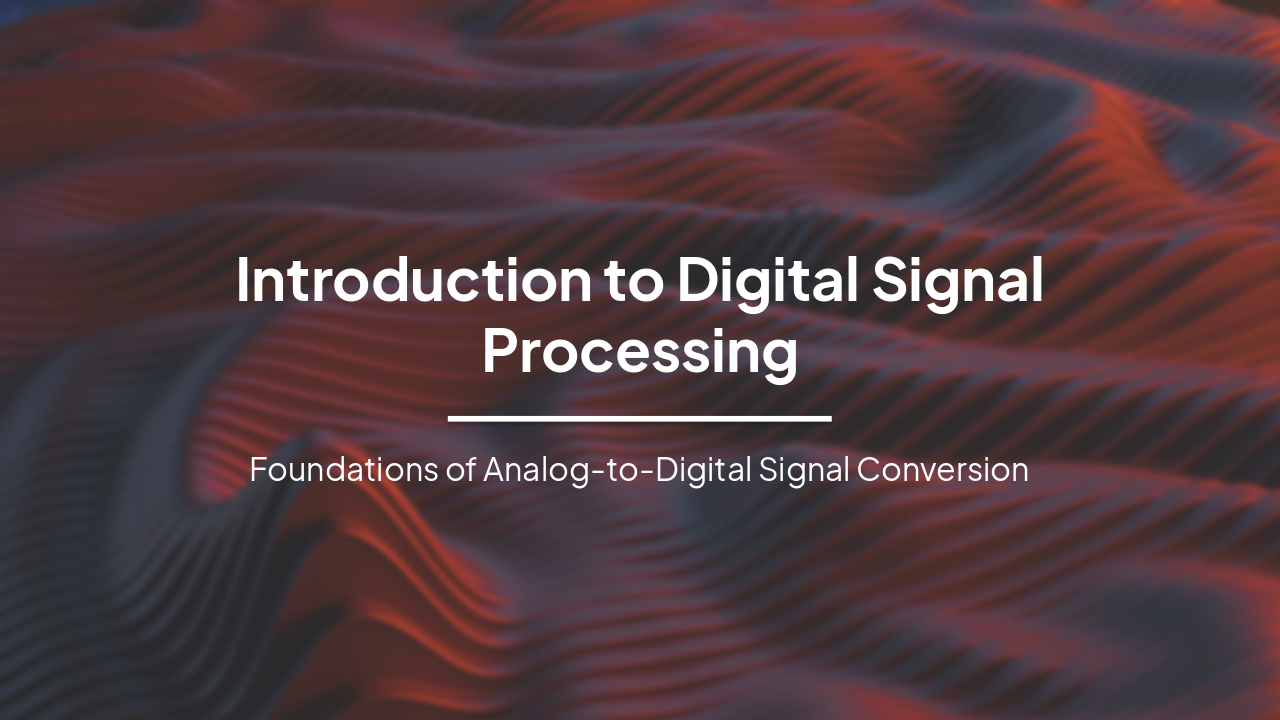

Slide 1 - Introduction to Digital Signal Processing
Sampling, Quantization, and PCM
Foundations of Analog-to-Digital Signal Conversion
---
Photo by Mike Uderevsky on Unsplash
Introduction to Digital Signal Processing: Sampling, Quant化,
Generated from prompt:
Please give me 4-6 slides on this topic "Sampling theorem; PCM; Quantization; Encoding "
This presentation covers foundational concepts in analog-to-digital conversion, including the Sampling Theorem (Nyquist-Shannon), quantization, Pulse Code Modulation (PCM), encoding, and the complete PCM workflow for reliable digital signal handling.
April 9, 20265 slides
Slide 2 of 5
Slide 2 - Presentation Overview
- Sampling Theorem (Nyquist-Shannon)"},{text:
---
Photo by Conny Schneider on Unsplash
Slide 3 of 5

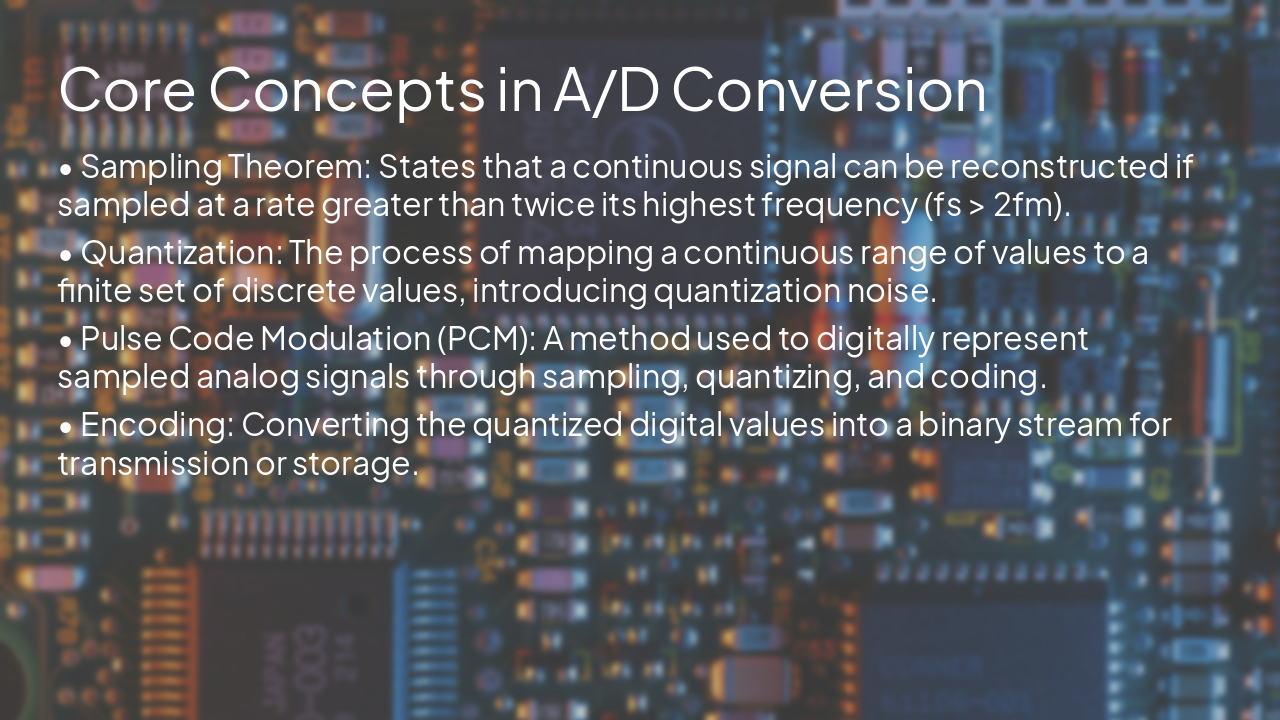

Slide 3 - Core Concepts in A/D Conversion
- Sampling Theorem: States that a continuous signal can be reconstructed if sampled at a rate greater than twice its highest frequency (fs > 2fm).
- Quantization: The process of mapping a continuous range of values to a finite set of discrete values, introducing quantization noise.
- Pulse Code Modulation (PCM): A method used to digitally represent sampled analog signals through sampling, quantizing, and coding.
- Encoding: Converting the quantized digital values into a binary stream for transmission or storage.
---
Slide 4 of 5
Slide 4 - The PCM Workflow Process
| Step 1 | Step 2 | Step 3 | Step 4 |
|---|---|---|---|
| Sampling: Capture signal at intervals | Quantization: Assign discrete levels | Coding: Map to binary sequence | Transmission: Digital output stream |
---
Photo by Randall Bruder (https://unsplash.com/@randallbruder?utmsource=karaf&utmmedium=referral) on Unsplash (https://unsplash.com/?utmsource=karaf&utmmedium=referral)
Slide 5 of 5

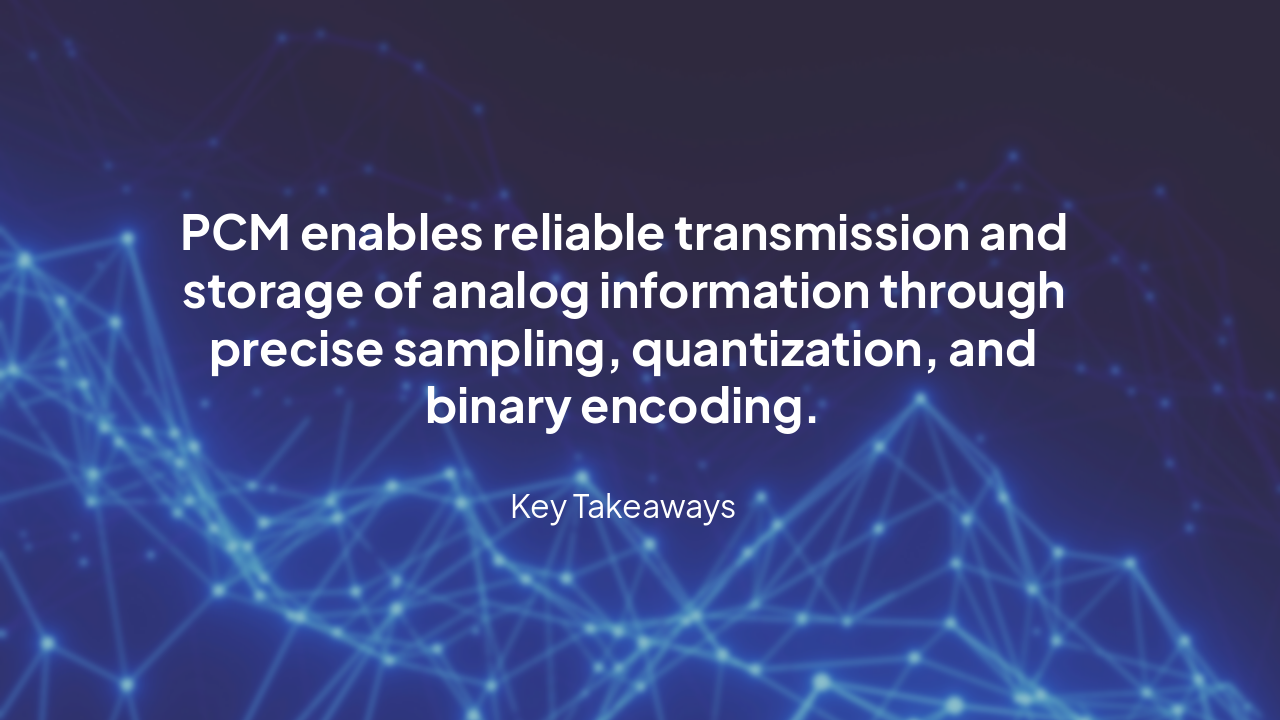

Slide 5 - Summary & Conclusion
PCM enables reliable transmission and storage of analog information through precise sampling, quantization, and binary encoding.
Key Takeaways
---
Photo by Conny Schneider on Unsplash
