Induction Motor Starting Methods

Generated from prompt:

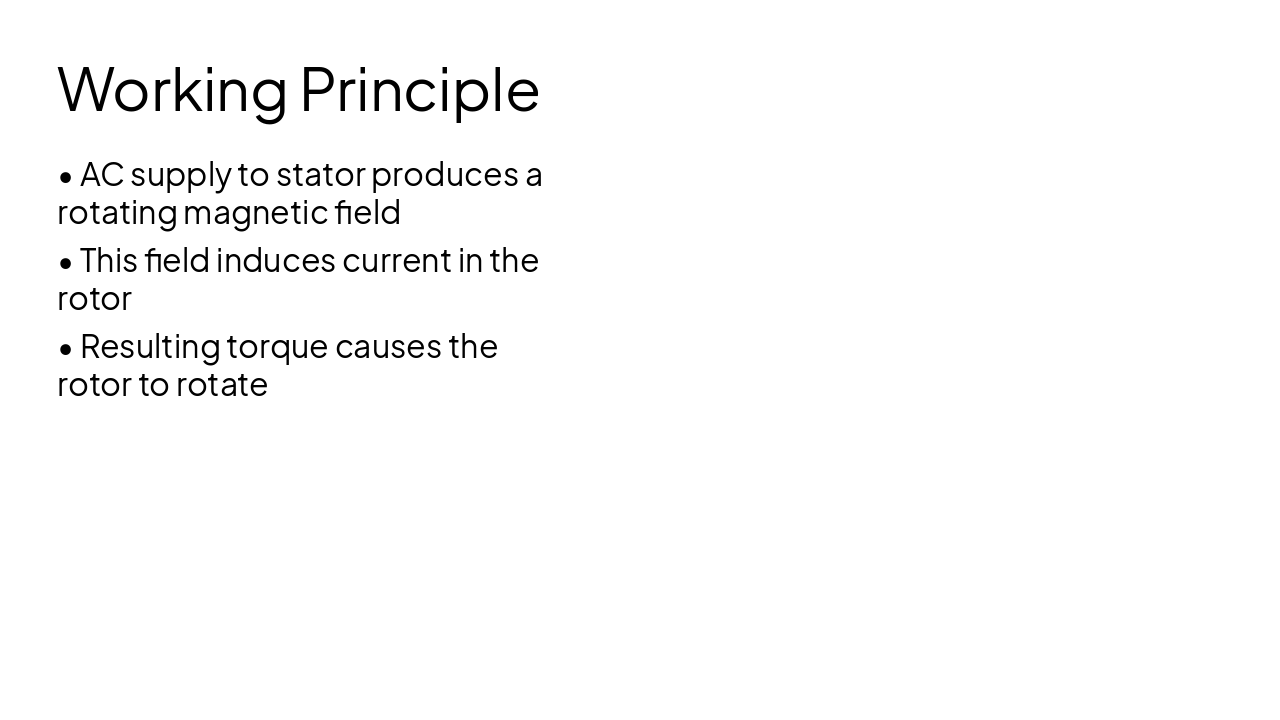

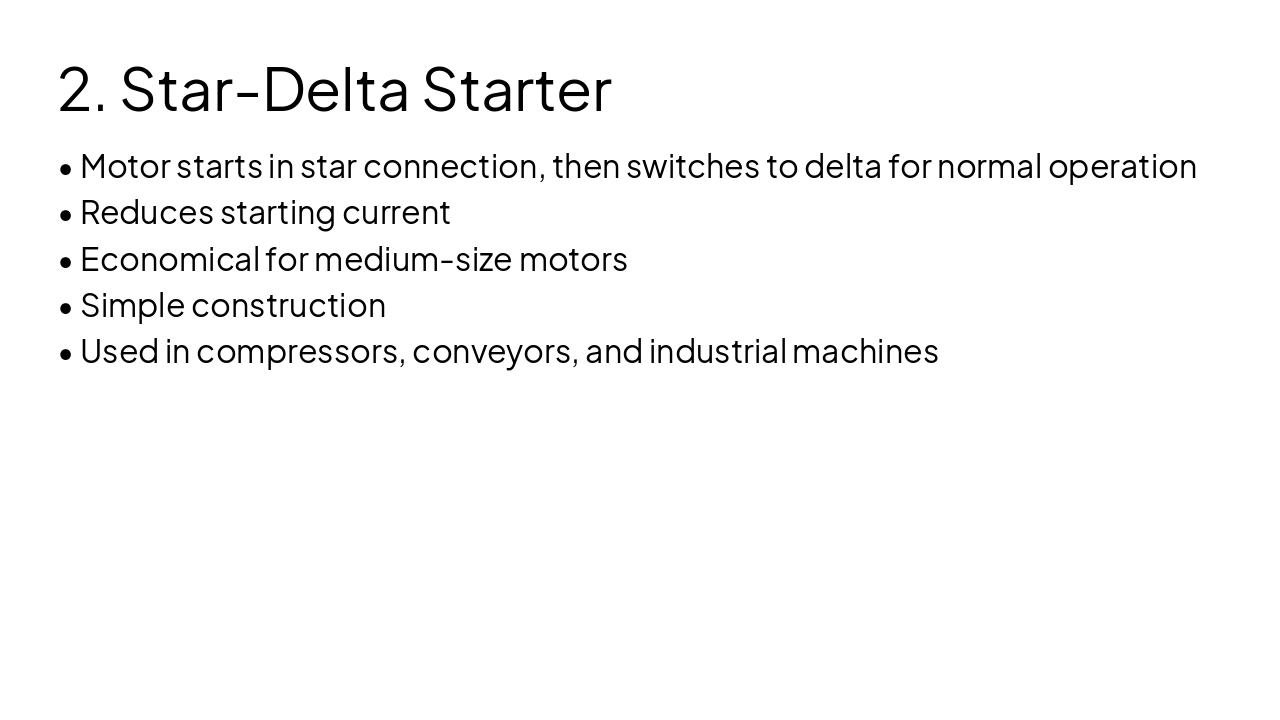

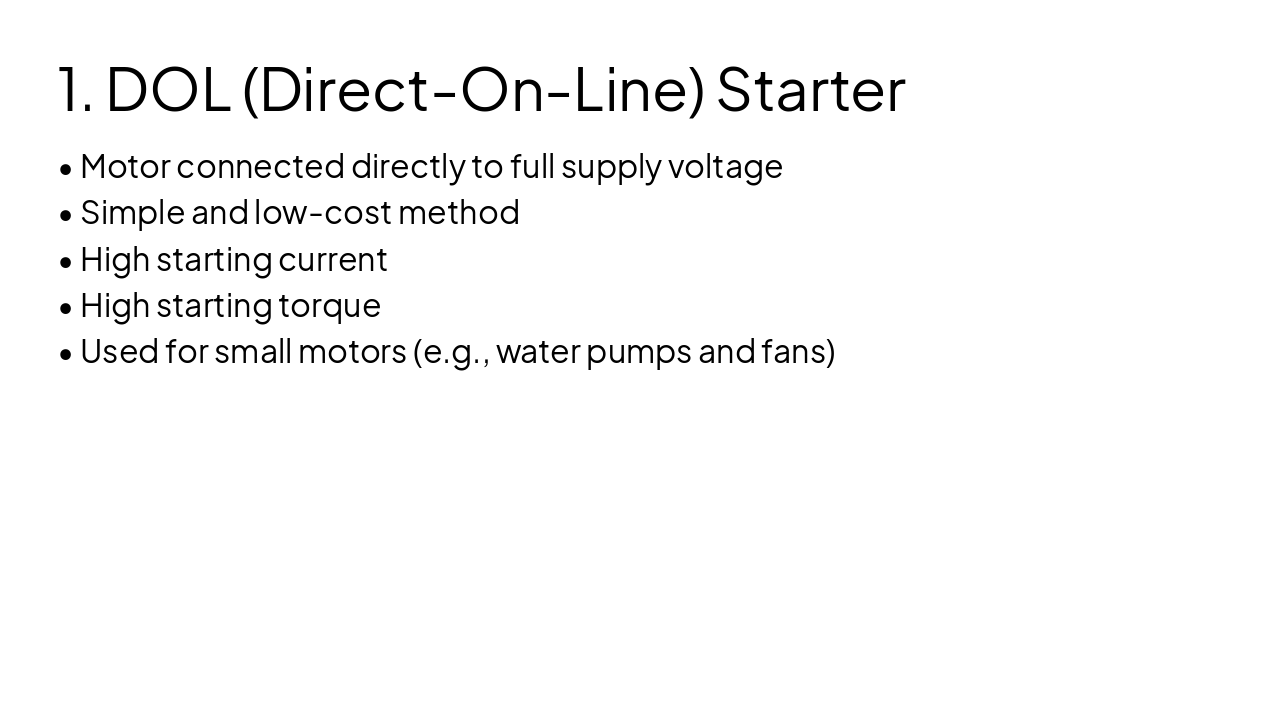

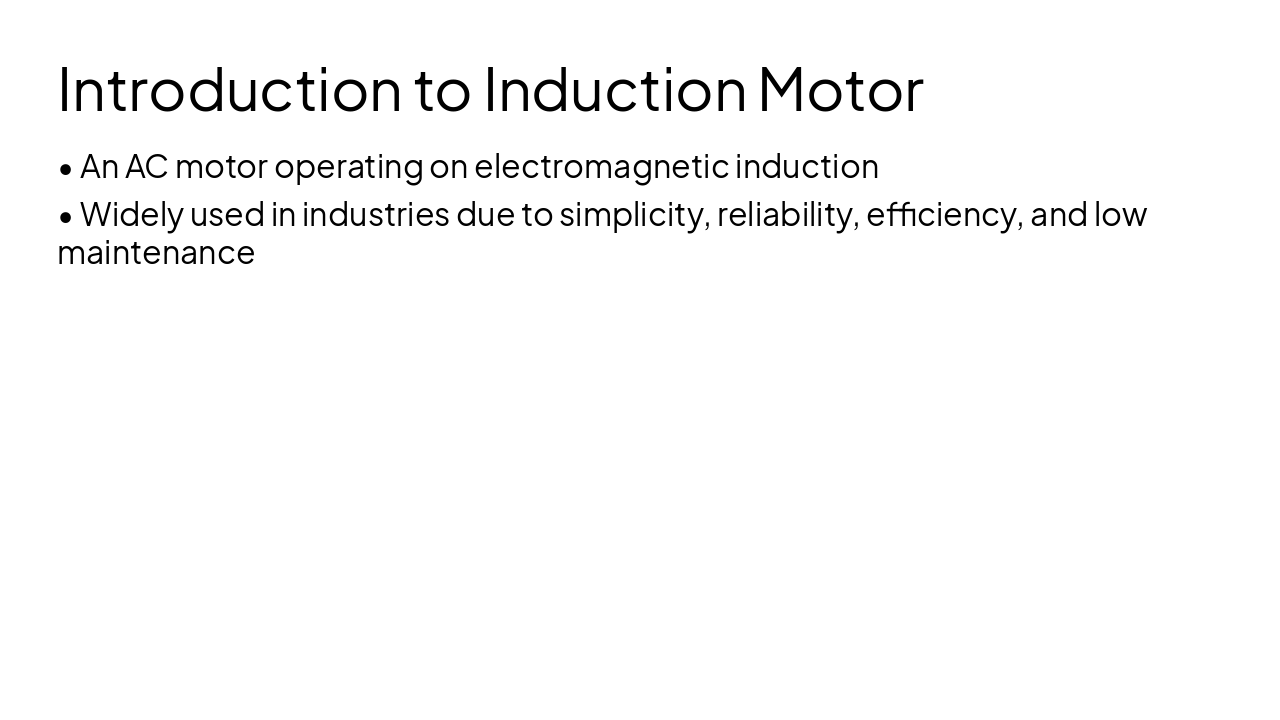

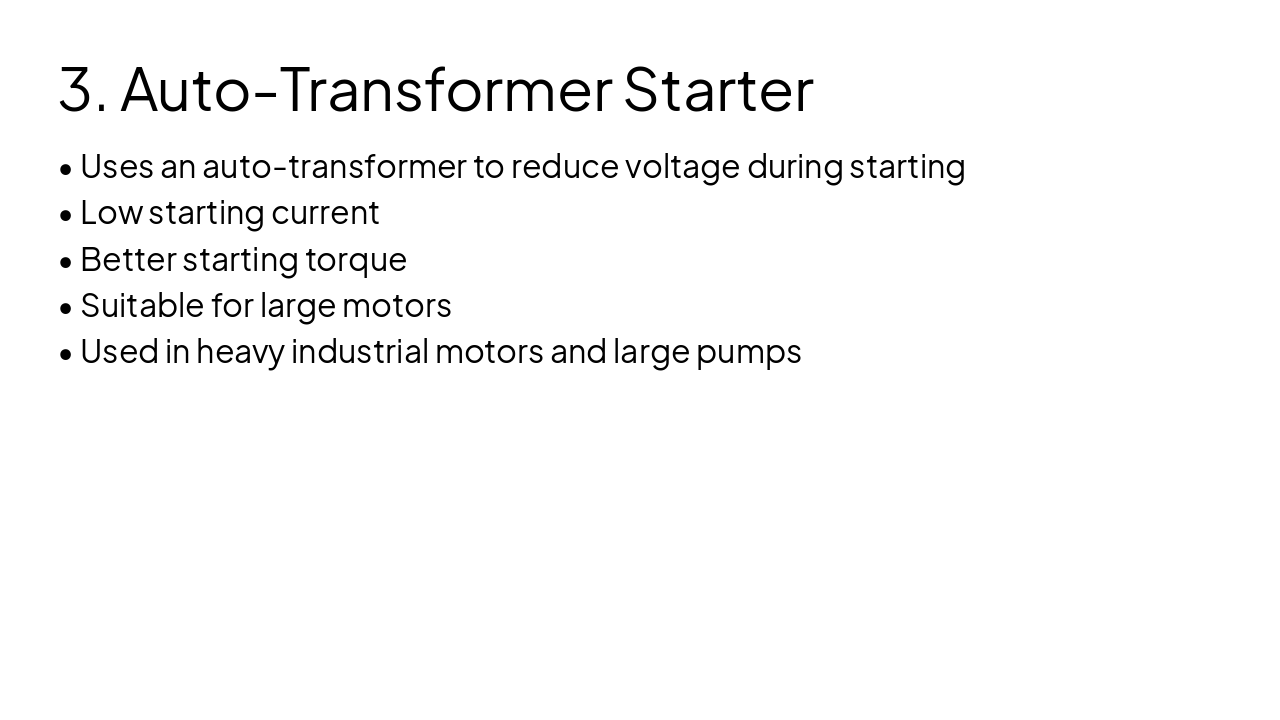

Induction Motor Starting Methods Introduction to Induction Motor An induction motor is an AC motor that works on the principle of electromagnetic induction. It is widely used in industries because it is simple, reliable, efficient, and requires low maintenance. ⸻ Working Principle f(x)=\text{Electromagnetic Induction Principle} When AC supply is given to the stator, it produces a rotating magnetic field. This magnetic field induces current in the rotor. As a result, torque is produced and the rotor starts rotating. ⸻ Induction Motor Starting Methods 1. DOL (Direct-On-Line) Starter Definition In this method, the motor is connected directly to the full supply voltage. Features * Simple and low-cost method * High starting current * High starting torque Applications Used for small motors such as water pumps and fans. ⸻ 2. Star-Delta Starter Definition The motor starts in star connection and later changes to delta connection for normal operation. Features * Reduces starting current * Economical for medium-size motors * Simple construction Applications Used in compressors, conveyors, and industrial machines. ⸻ 3. Auto-Transformer Starter Definition This method uses an auto-transformer to reduce voltage during starting. Features * Low starting current * Better starting torque * Suitable for large motors Applications Used in heavy industrial motors and large pumps. ⸻ 4. Soft Starter Definition A soft starter gradually increases the voltage to start the motor smoothly. Features * Smooth starting * Reduces mechanical stress * Protects equipment Applications Used in pumps, elevators, and conveyor systems. ⸻ 5. VFD (Variable Frequency Drive) Definition A VFD controls both the voltage and frequency supplied to the motor. Features * Smooth speed control * Energy efficient * Modern and advanced method Applications Used in HVAC systems, automation, and modern industries. ⸻ Conclusion Different starting methods are used to reduce starting current and improve motor performance. Among all methods, VFD and Soft Starter are the most advanced and efficient solutions used in modern industries. This is my presentation make slides beautiful add pictures, videos about this topic make beautiful slides
