Présentation sur l'épuisement IPv4 (2^32 adresses) nécessitant IPv6 (2^128), obstacles à l'adoption (dominance IPv4 95%+, coût dual-stack), structure IPv4 (32 bits), classes, masques sous-réseau (CIDR
This title slide is named "IPv4 et la Transition vers IPv6." Its subtitle covers reasons for transitioning to IPv6, plus IPv4 addresses, classes, masks, and special types.
Raisons du passage à IPv6, adresses, classes, masques et spéciales
This agenda slide, titled "Plan de la Présentation," outlines the presentation structure. It covers reasons to switch from IPv4 to IPv6, why IPv6 is underused, IPv4 addresses, address classes, subnet masks, and special addresses.

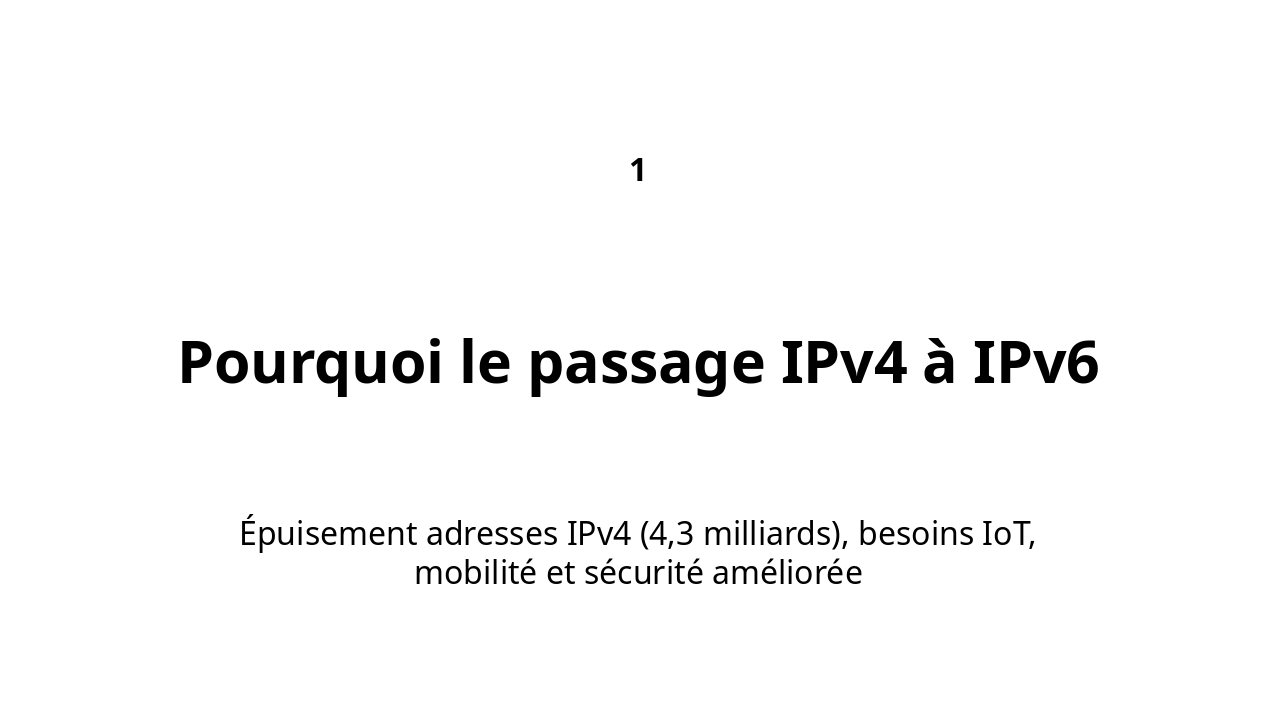

This slide is a section header titled "1. Pourquoi le passage IPv4 à IPv6" (Why the transition from IPv4 to IPv6). The subtitle notes IPv4 address exhaustion (4.3 billion addresses), IoT requirements, improved mobility, and enhanced security.
1
Épuisement adresses IPv4 (4,3 milliards), besoins IoT, mobilité et sécurité améliorée

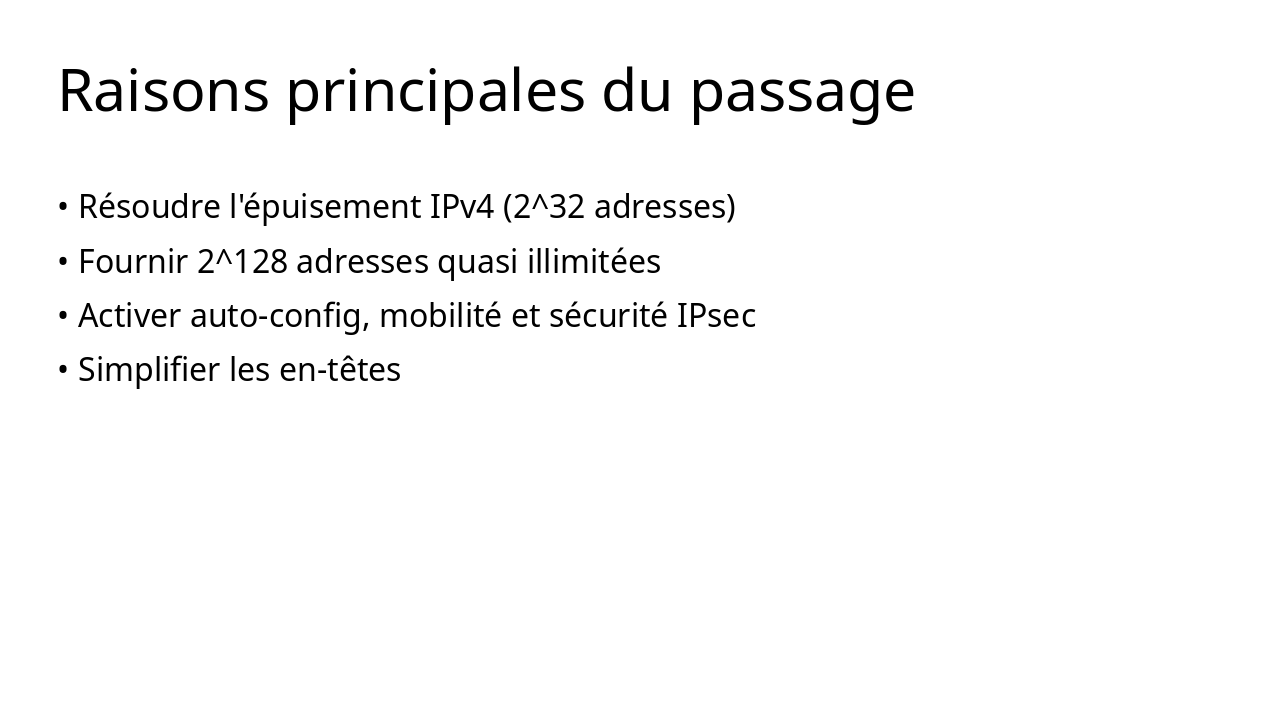

The slide "Raisons principales du passage" lists key reasons for transitioning to IPv6. It addresses IPv4 exhaustion (2^32 addresses) by offering 2^128 quasi-unlimited addresses, while enabling auto-configuration, mobility, IPsec security, and simplified headers.

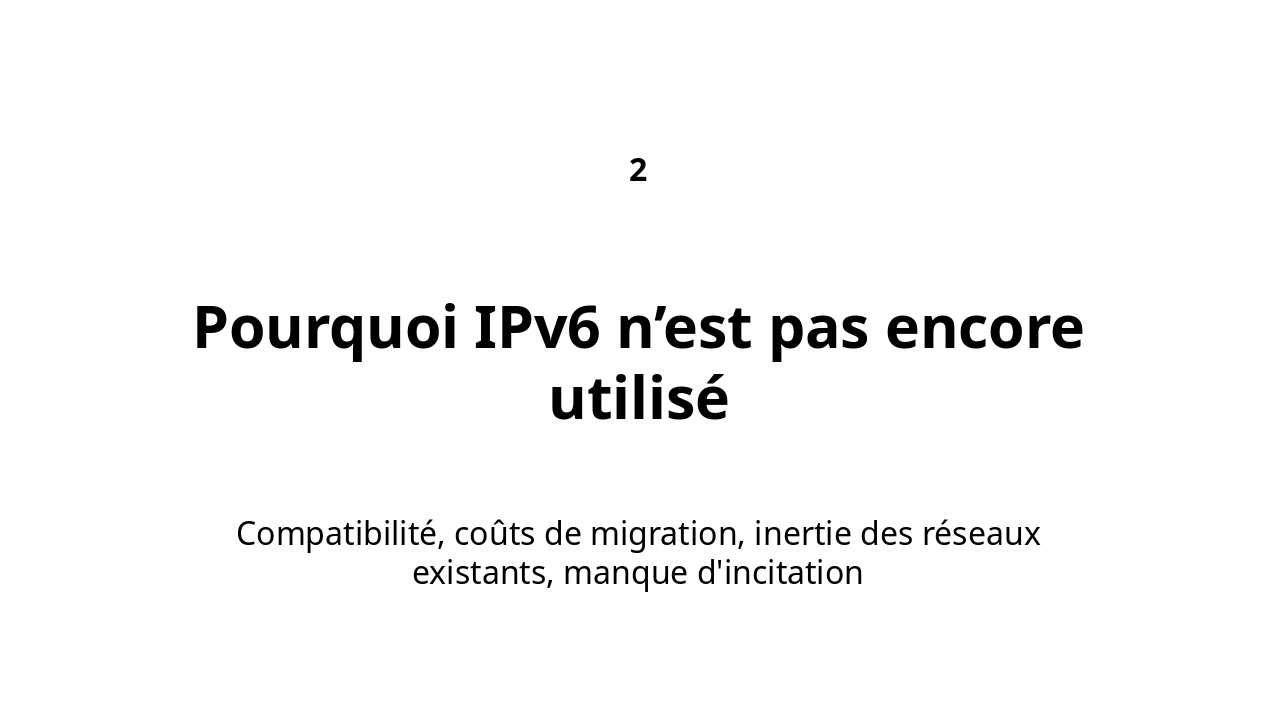

This slide introduces Section 2: "Why IPv6 is not yet used." It lists key barriers: compatibility issues, migration costs, inertia of existing networks, and lack of incentives.
2
Compatibilité, coûts de migration, inertie des réseaux existants, manque d'incitation

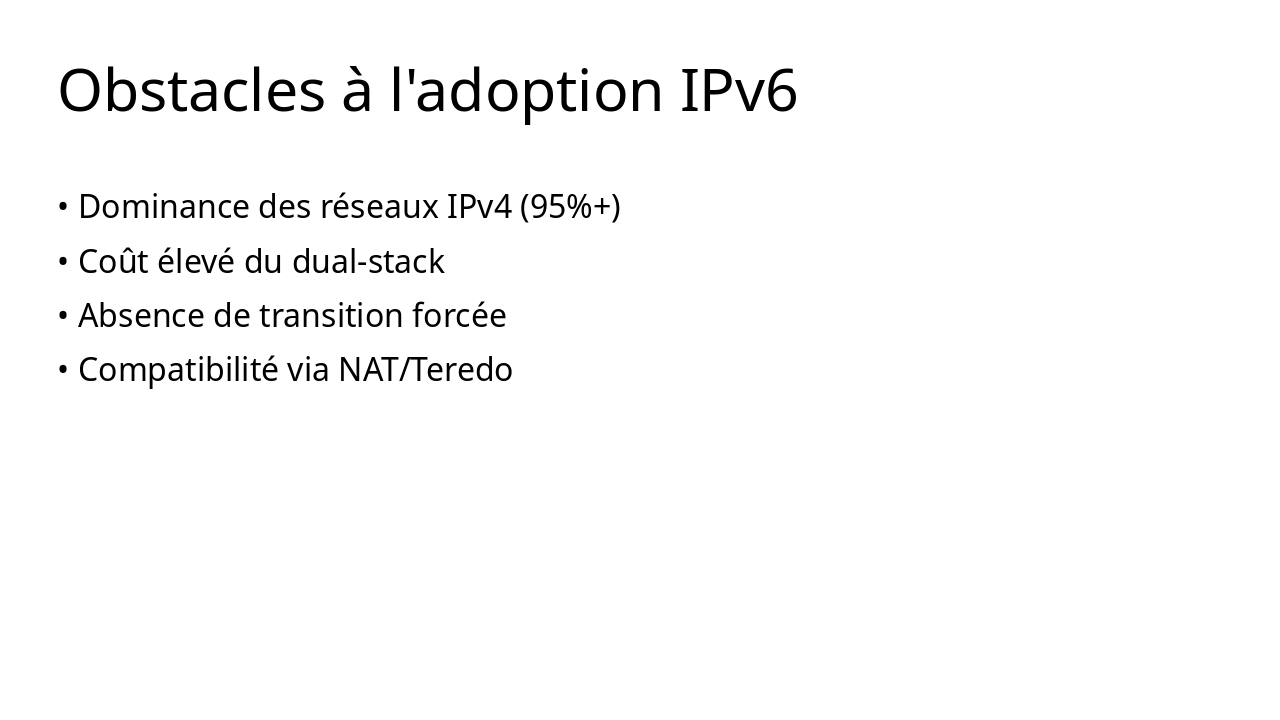

The slide lists key obstacles to IPv6 adoption, primarily the dominance of IPv4 networks (over 95%) and the high cost of dual-stack implementations. It also highlights the absence of forced transitions and reliance on compatibility tools like NAT/Teredo.

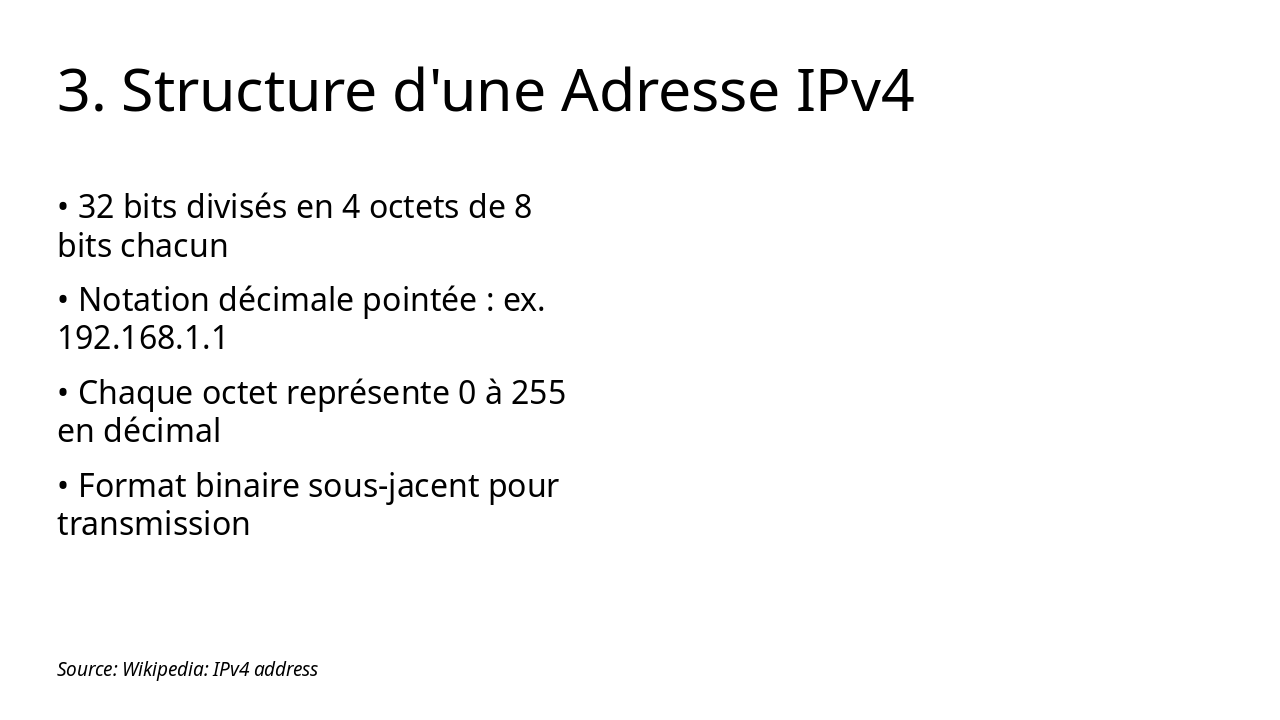

The slide describes the structure of an IPv4 address as 32 bits divided into 4 octets of 8 bits each, using dotted decimal notation like 192.168.1.1. Each octet ranges from 0 to 255 in decimal, with an underlying binary format for transmission.
Source: Wikipedia: IPv4 address

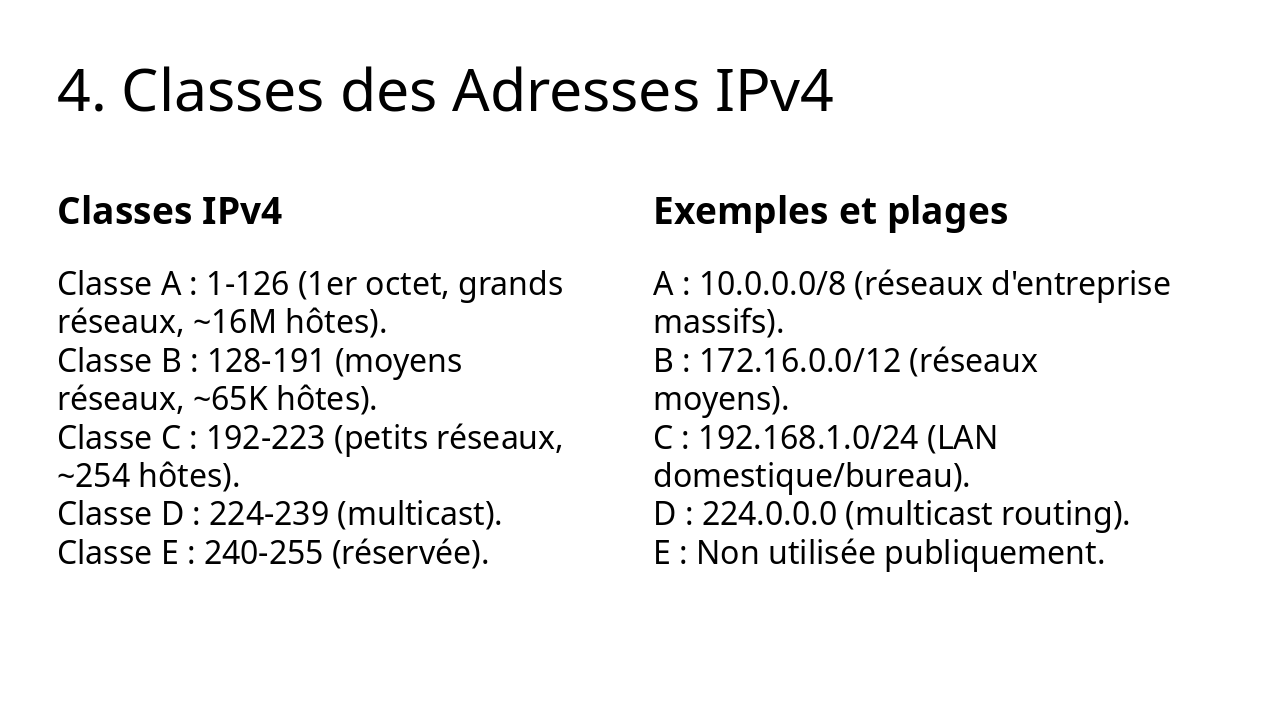

IPv4 address classes are defined by the first octet range: Class A (1-126) for large networks (~16M hosts), B (128-191) for medium (~65K hosts), C (192-223) for small (~254 hosts), D (224-239) for multicast, and E (240-255) reserved. Examples include 10.0.0.0/8 for massive A networks, 172.16.0.0/12 for medium B, 192.168.1.0/24 for home/office C LANs, 224.0.0.0 for D multicast, and E not publicly used.
| Classes IPv4 | Exemples et plages |
|---|
| Classe A : 1-126 (1er octet, grands réseaux, ~16M hôtes). Classe B : 128-191 (moyens réseaux, ~65K hôtes). Classe C : 192-223 (petits réseaux, ~254 hôtes). Classe D : 224-239 (multicast). Classe E : 240-255 (réservée). | A : 10.0.0.0/8 (réseaux d'entreprise massifs). B : 172.16.0.0/12 (réseaux moyens). C : 192.168.1.0/24 (LAN domestique/bureau). D : 224.0.0.0 (multicast routing). E : Non utilisée publiquement. |

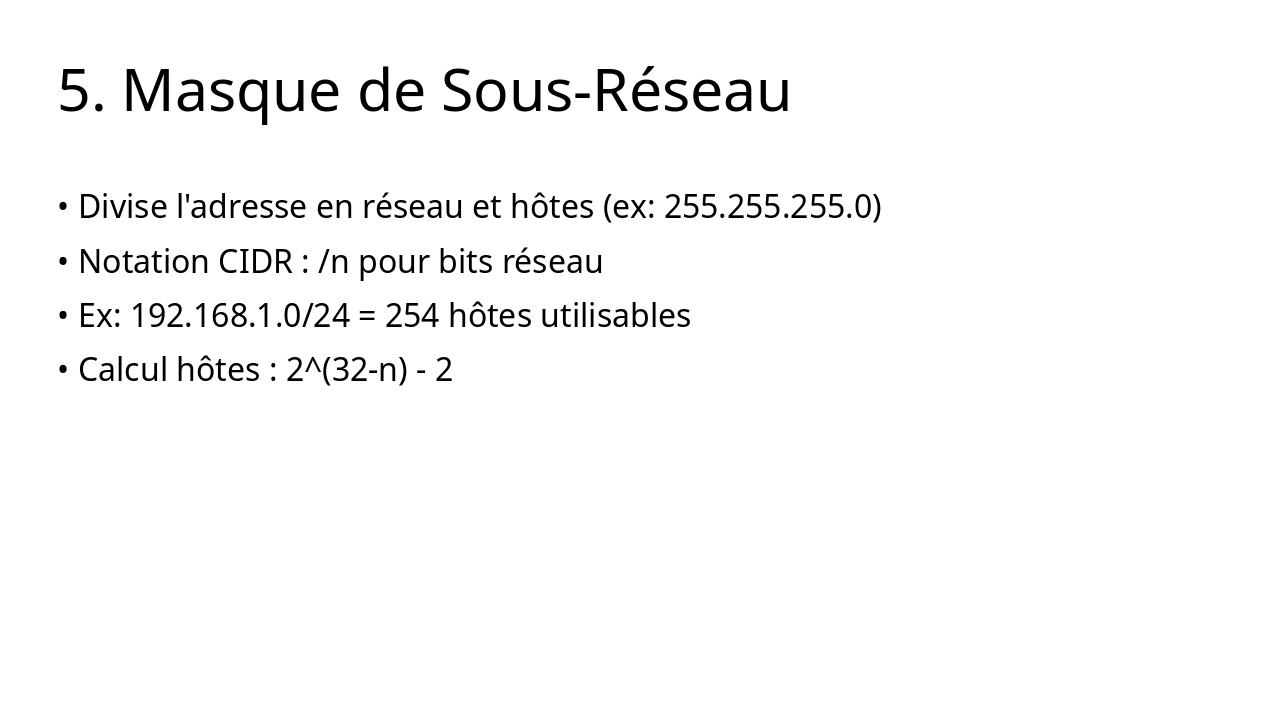

The slide on "Masque de Sous-Réseau" (Subnet Mask) explains how it divides an IP address into network and host parts, such as 255.255.255.0, using CIDR notation like /n for network bits. It includes the example 192.168.1.0/24 with 254 usable hosts, calculated via the formula 2^(32-n) - 2.
This slide on special IPv4 addresses lists 16.8 million loopback addresses (127.0.0.0/8) and 18 million in private ranges (10/8 + 172.16/12 + 192.168/16). It also covers the single universal broadcast address (255.255.255.255) and the unspecified address (0.0.0.0).
127.0.0.0/8 for localhost
10/8 + 172.16/12 + 192.168/16
255.255.255.255 universal broadcast
Default or any interface
IPv6 remains essential despite challenges, advocating progressive migration via dual-stack. The future ends IPv4 exhaustion for an unlimited network—start your dual-stack migration today.
IPv6 essentiel malgré défis.
Migration progressive via dual-stack.
Futur : fin épuisement IPv4.
Vers un réseau illimité !
Lancez votre migration dual-stack dès aujourd'hui.
