The slide welcomes participants to the LC-MS Series, presenting an overview of a six-lecture course on liquid chromatography-mass spectrometry (LC-MS). It spans topics from fundamentals to practical applications, drawing inspiration from Watson and Sparkman's work.

Overview of 6-Lecture Course on LC-MS

Fundamentals to Applications, Inspired by Watson & Sparkman

The Course Agenda slide outlines a six-lecture series on Liquid Chromatography-Mass Spectrometry (LC-MS), starting with fundamentals including an overview, architecture, and importance. Subsequent lectures cover LC-MS interfaces from historical developments to thermospray, atmospheric pressure ionization techniques like ESI, APCI, and APPI, chromatographic considerations such as mobile phase effects and optimization, quantitative methods with calibration and data interpretation, and applications in drug discovery, proteomics, environmental analysis, plus future trends.

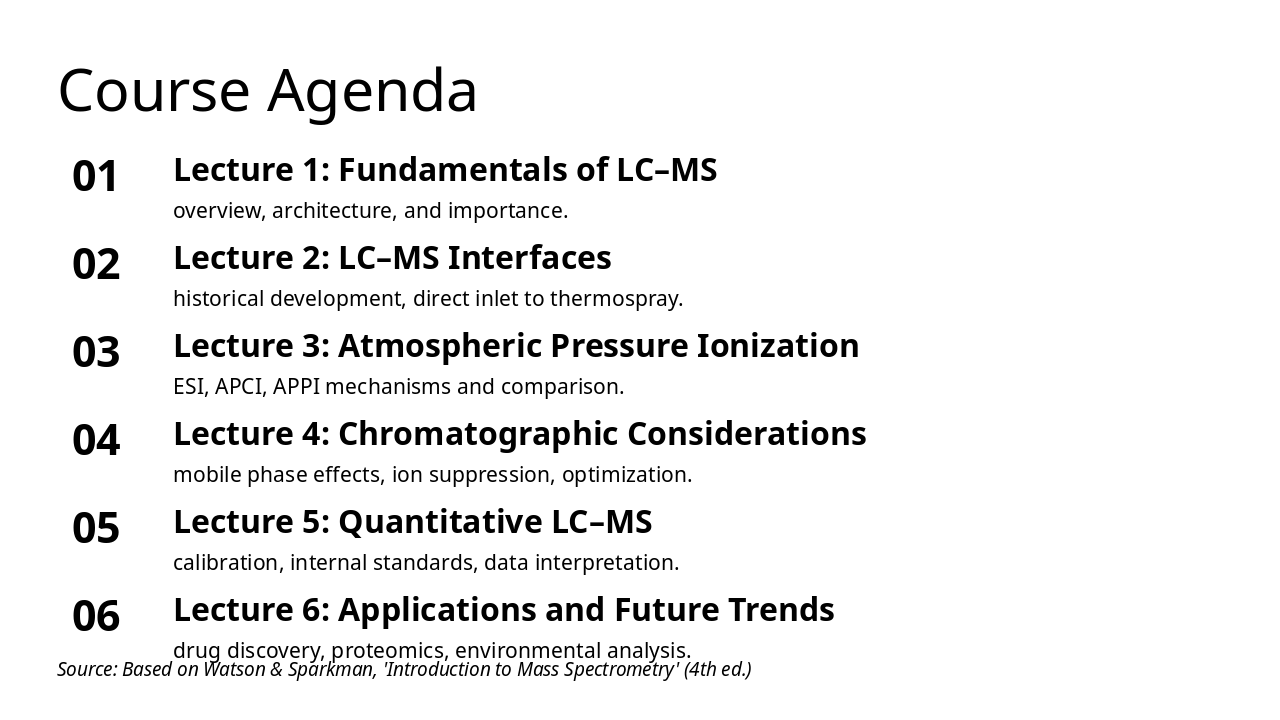

Course Agenda

1. Lecture 1: Fundamentals of LC–MS

overview, architecture, and importance.

2. Lecture 2: LC–MS Interfaces

historical development, direct inlet to thermospray.

3. Lecture 3: Atmospheric Pressure Ionization

ESI, APCI, APPI mechanisms and comparison.

4. Lecture 4: Chromatographic Considerations

mobile phase effects, ion suppression, optimization.

5. Lecture 5: Quantitative LC–MS

calibration, internal standards, data interpretation.

6. Lecture 6: Applications and Future Trends

drug discovery, proteomics, environmental analysis. Source: Based on Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

This section header slide introduces Lecture 1 on the Fundamentals of LC-MS, marked as section 01. It provides an overview of the technique's architecture and highlights its importance in analytical chemistry.

Lecture 1: Fundamentals of LC-MS

01

Lecture 1: Fundamentals of LC-MS

Introduce overview, architecture, and importance of LC-MS in analytical chemistry.

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

Liquid chromatography (LC) separates compounds based on their physical properties, while mass spectrometry (MS) identifies analytes by their mass-to-charge ratio. LC-MS combines these techniques to enable highly sensitive detection and trace analysis in complex mixtures.

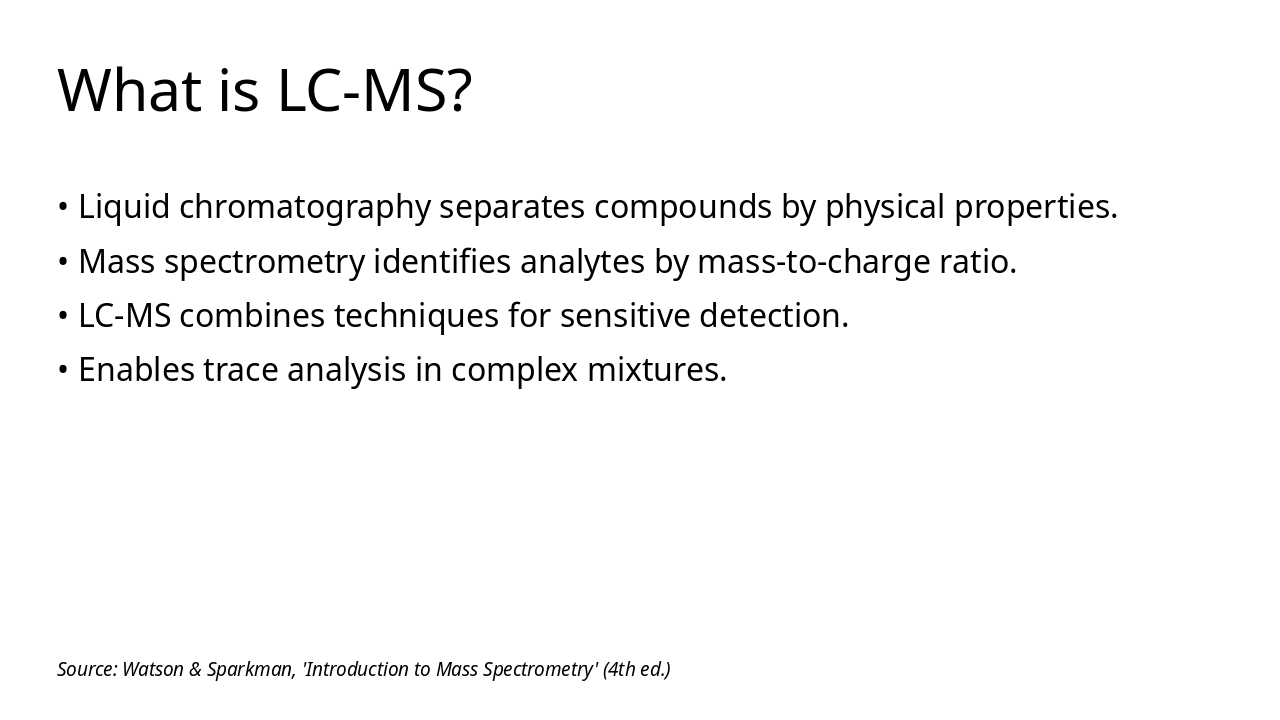

What is LC-MS?

• Liquid chromatography separates compounds by physical properties.
• Mass spectrometry identifies analytes by mass-to-charge ratio.
• LC-MS combines techniques for sensitive detection.
• Enables trace analysis in complex mixtures.

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

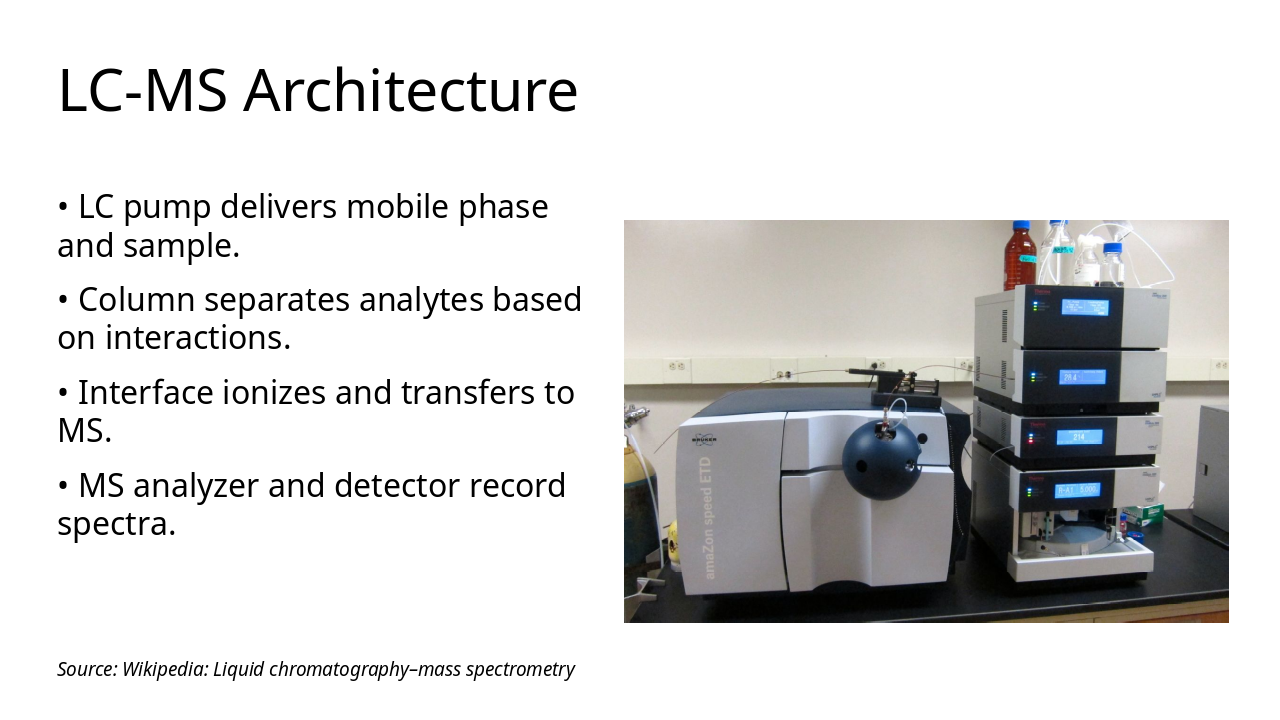

The LC-MS architecture slide outlines the key components of liquid chromatography-mass spectrometry, starting with the LC pump that delivers the mobile phase and sample. It then describes the column's role in separating analytes, the interface's function in ionizing and transferring them to the mass spectrometer, and the MS analyzer and detector that record the resulting spectra.

LC-MS Architecture

!Image

• LC pump delivers mobile phase and sample.
• Column separates analytes based on interactions.
• Interface ionizes and transfers to MS.
• MS analyzer and detector record spectra.

Source: Wikipedia: Liquid chromatography–mass spectrometry

This slide highlights the importance of a technique in research for enhancing sensitivity and specificity in detecting analytes, while overcoming limitations of GC-MS for non-volatile compounds and enabling trace-level analysis in complex matrices. It serves as a key method across pharmaceuticals, environmental science, and biology, supporting applications from drug discovery to proteomics.

Importance in Research

• 🔬 Enhances sensitivity and specificity in analyte detection
• 💊 Key technique in pharma, environmental, and biology research
• 🌿 Overcomes GC-MS limitations for non-volatile compounds
• 📈 Enables trace-level analysis in complex matrices
• 🔄 Supports diverse applications from drug discovery to proteomics

Source: Based on Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

This conclusion slide summarizes Lecture 1 by highlighting LC-MS as a powerful integration of chromatography and mass spectrometry that unlocks molecular insights. It previews the historical development of LC-MS interfaces in Lecture 2 and invites questions.

Lecture 1 Summary

LC-MS: Powerful Integration of Separation and Detection

Key Takeaway: Unlocking molecular insights through combined chromatography and mass spectrometry.

Preview: Dive into LC-MS interfaces in Lecture 2.

Q&A: Questions?

Prepare for historical development of interfaces next lecture.

Source: Based on Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

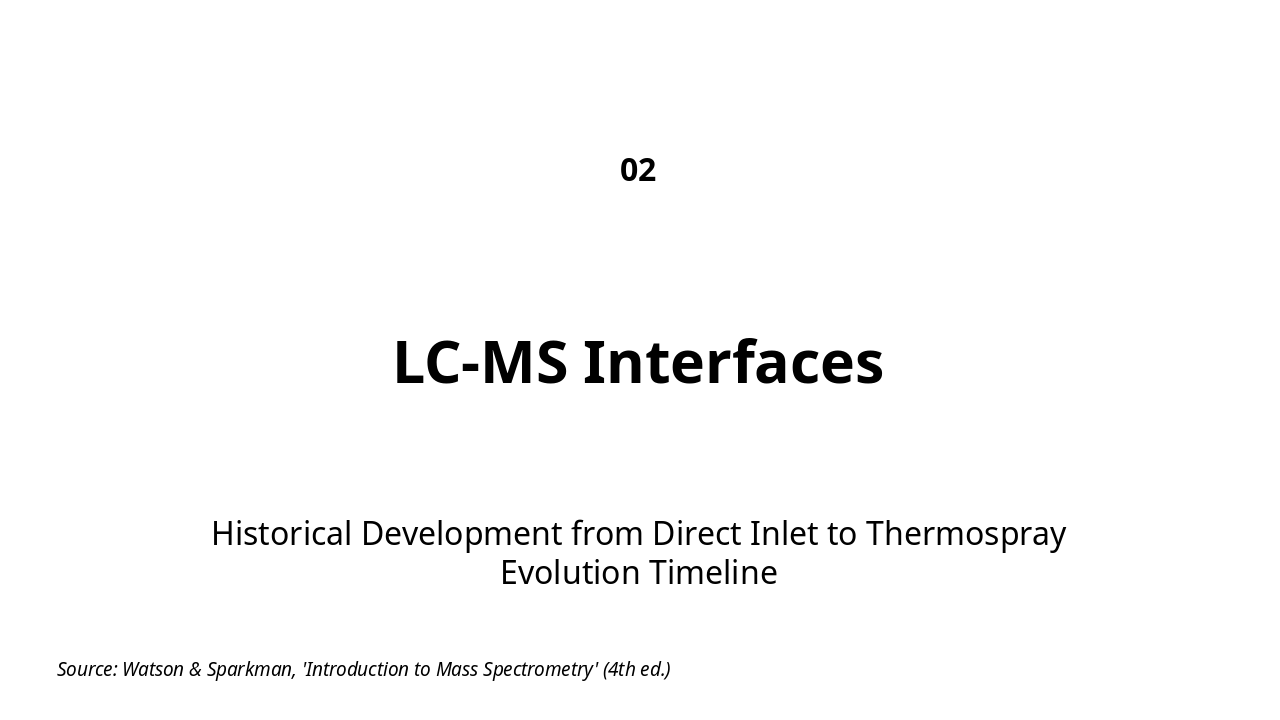

This section header slide introduces Lecture 2 on LC-MS Interfaces, marking it as section 02. It features a subtitle outlining the historical development from direct inlet methods to the evolution of thermospray, presented as a timeline.

Lecture 2: LC-MS Interfaces

02

LC-MS Interfaces

Historical Development from Direct Inlet to Thermospray Evolution Timeline

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

The timeline slide outlines key milestones in the historical development of LC-MS interfaces, starting with the 1960s direct inlet interface by Baldwin and McLafferty, which enabled early coupling but was limited by low solvent flow rates. It progresses to the 1970s moving belt interface by McFadden for better flow compatibility through analyte evaporation, and the 1980s thermospray interface by Vestal, which used heat and vacuum to effectively bridge liquid chromatography with mass spectrometry.

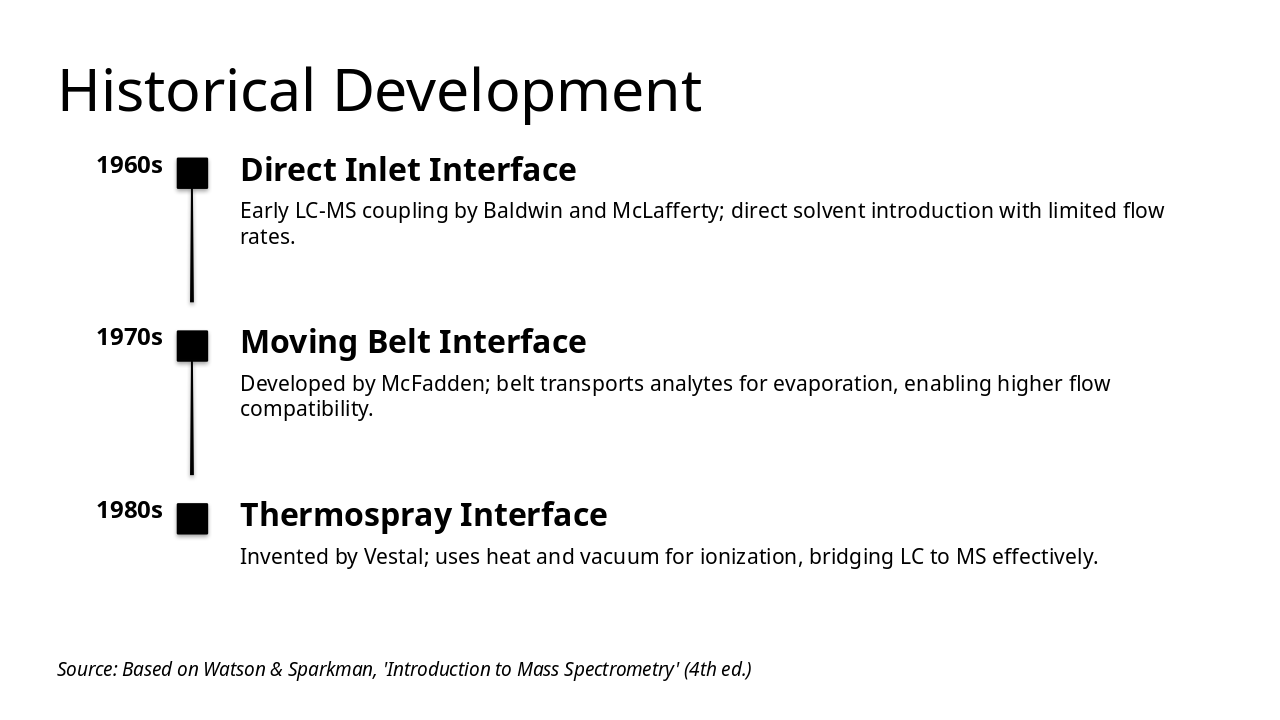

Historical Development

1960s: Direct Inlet Interface Early LC-MS coupling by Baldwin and McLafferty; direct solvent introduction with limited flow rates. 1970s: Moving Belt Interface Developed by McFadden; belt transports analytes for evaporation, enabling higher flow compatibility. 1980s: Thermospray Interface Invented by Vestal; uses heat and vacuum for ionization, bridging LC to MS effectively.

Source: Based on Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

The Direct Inlet Interface represents an early method for transferring liquid chromatography (LC) effluent directly into the mass spectrometry (MS) vacuum. However, it faces challenges from the high pressure mismatch between LC and MS systems, limiting its use to simple mixtures at low flow rates.

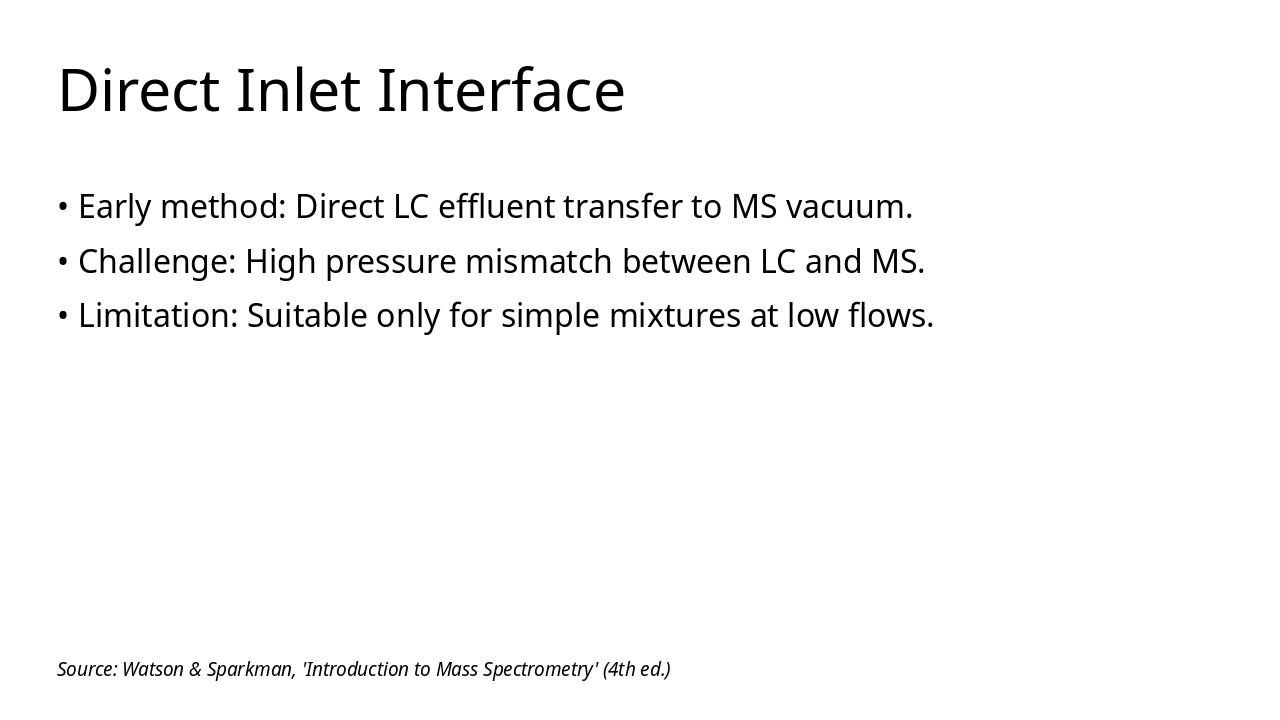

Direct Inlet Interface

• Early method: Direct LC effluent transfer to MS vacuum.
• Challenge: High pressure mismatch between LC and MS.
• Limitation: Suitable only for simple mixtures at low flows.

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

The Thermospray Interface slide illustrates a key early technique for coupling liquid chromatography with mass spectrometry (LC-MS). It features a heated nebulizer that vaporizes the LC eluent, leading to solvent evaporation into the gas phase and ionization through thermal desolvation.

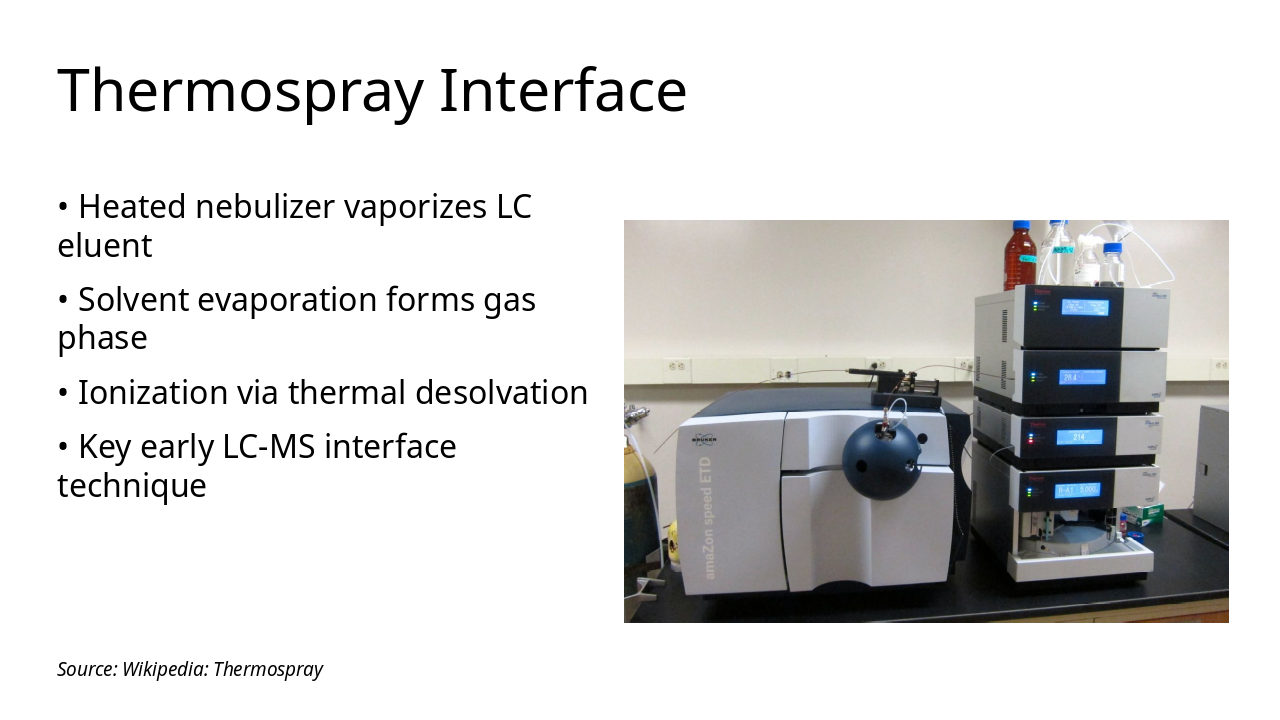

Thermospray Interface

!Image

• Heated nebulizer vaporizes LC eluent
• Solvent evaporation forms gas phase
• Ionization via thermal desolvation
• Key early LC-MS interface technique

Source: Wikipedia: Thermospray

The slide discusses interface challenges in LC-MS systems, focusing on vacuum/atmospheric pressure issues and solvent removal needs. Early solutions like direct inlets and moving belts offered simplicity but suffered from low flow rates, clogging, complexity, and contamination, while modern approaches such as ESI and thermospray enable higher flows, efficient desolvation, and versatility, though they face drawbacks like ion suppression and sensitivity to salts.

Interface Challenges

| Early Solutions (e.g., Direct Inlet, 1960s-70s):

• Low flow rates (<10 µL/min) to match vacuum.
• Pros: Simple coupling.
• Cons: Limited LC utility, clogging risks.

Modern Solutions (e.g., ESI, 1980s+):

• Atm pressure ionization, no vacuum interface needed.
• Pros: High flows (up to 1 mL/min), versatile.
• Cons: Ion suppression at high flows. | Early Solutions (e.g., Moving Belt, 1970s):
• Mechanical evaporation of solvent before MS.
• Pros: Handles organic solvents.
• Cons: Complex mechanics, contamination, low throughput.

Modern Solutions (e.g., Thermospray to ESI):

• Nebulization/electrospray for efficient desolvation.
• Pros: Rapid, minimal residue, compatible with aqueous phases.
• Cons: Sensitivity to buffer salts, maintenance. |

Source: Based on Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.); Images from NIST and Waters Corp.

The slide wraps up Lecture 2 by highlighting how the evolution from basic inlets to thermospray interfaces laid the foundation for robust liquid chromatography-mass spectrometry (LC-MS). It previews Atmospheric Pressure Ionization in Lecture 3, discusses challenges and advancements in interfaces, and notes the key takeaway that these interfaces sparked the LC-MS revolution, while inviting questions.

Lecture 2 Wrap-Up

• Evolution from basic inlets to thermospray paved the way for robust LC-MS.

• Next: Atmospheric Pressure Ionization (Lecture 3).
• Discussion: Challenges and advancements in interfaces.

Key Takeaway: Interfaces enabled LC-MS revolution. Questions?

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

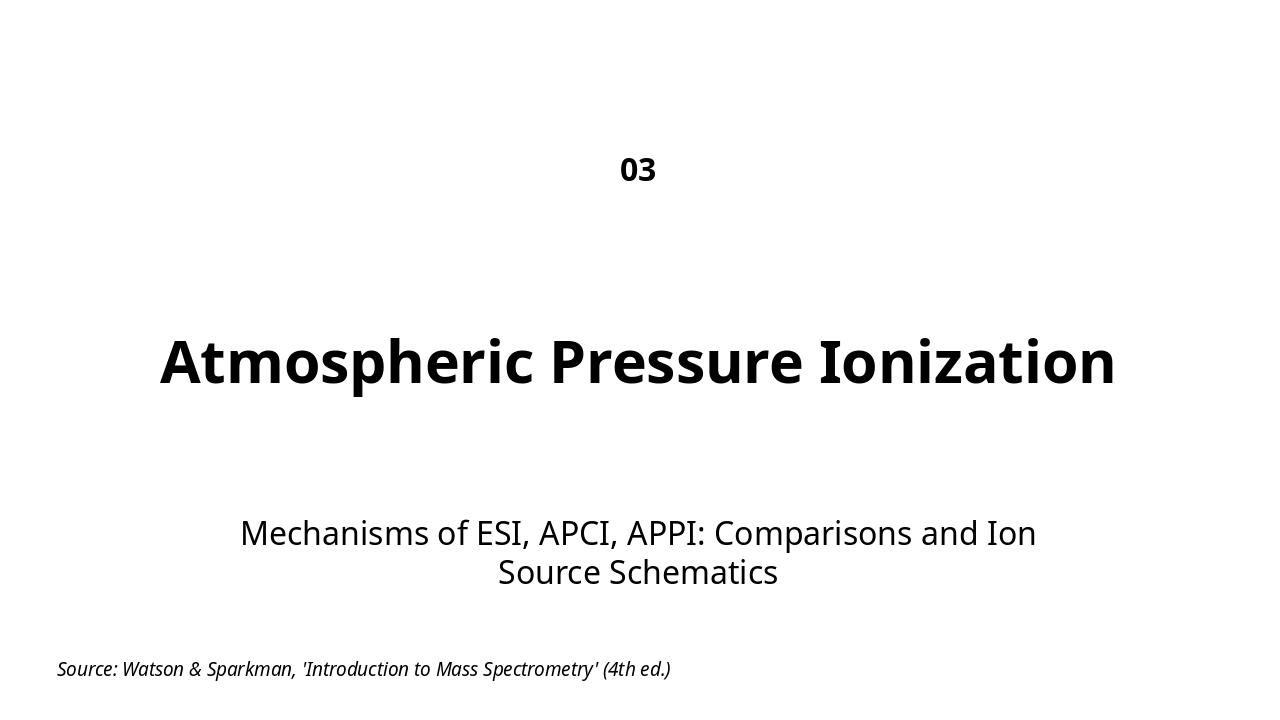

This section header slide introduces Lecture 3 on Atmospheric Pressure Ionization, focusing on the core mechanisms of ESI, APCI, and APPI techniques. It highlights comparisons between these methods alongside schematics of their ion sources.

Lecture 3: Atmospheric Pressure Ionization

03

Atmospheric Pressure Ionization

Mechanisms of ESI, APCI, APPI: Comparisons and Ion Source Schematics

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

Electrospray Ionization (ESI) is a soft ionization technique particularly suited for analyzing biomolecules. It works by forming charged droplets that evaporate, with multiple charging allowing the examination of large molecules.

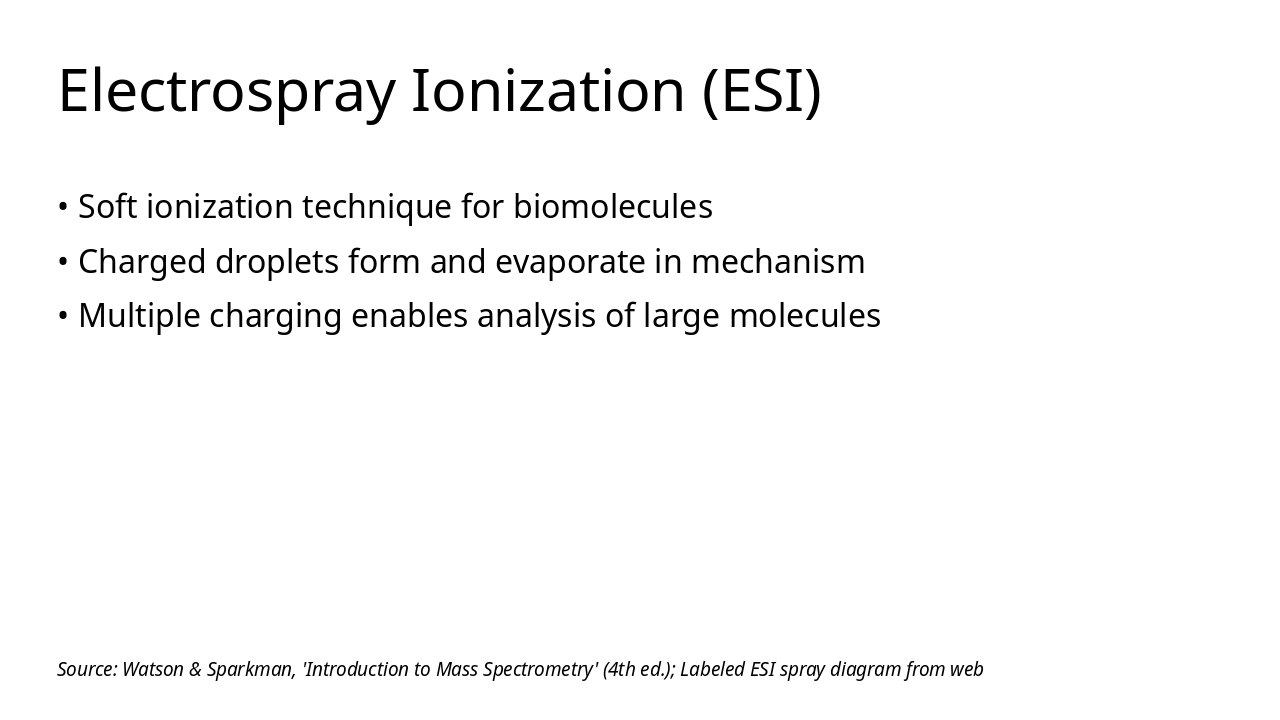

Electrospray Ionization (ESI)

• Soft ionization technique for biomolecules
• Charged droplets form and evaporate in mechanism
• Multiple charging enables analysis of large molecules

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.); Labeled ESI spray diagram from web

The APCI Mechanism slide explains how corona discharge generates primary ions from nitrogen, which then protonate or charge analytes in the gas phase, making it ideal for non-polar and thermally stable compounds. It outlines the step-by-step process, including nebulization, vaporization, and ionization.

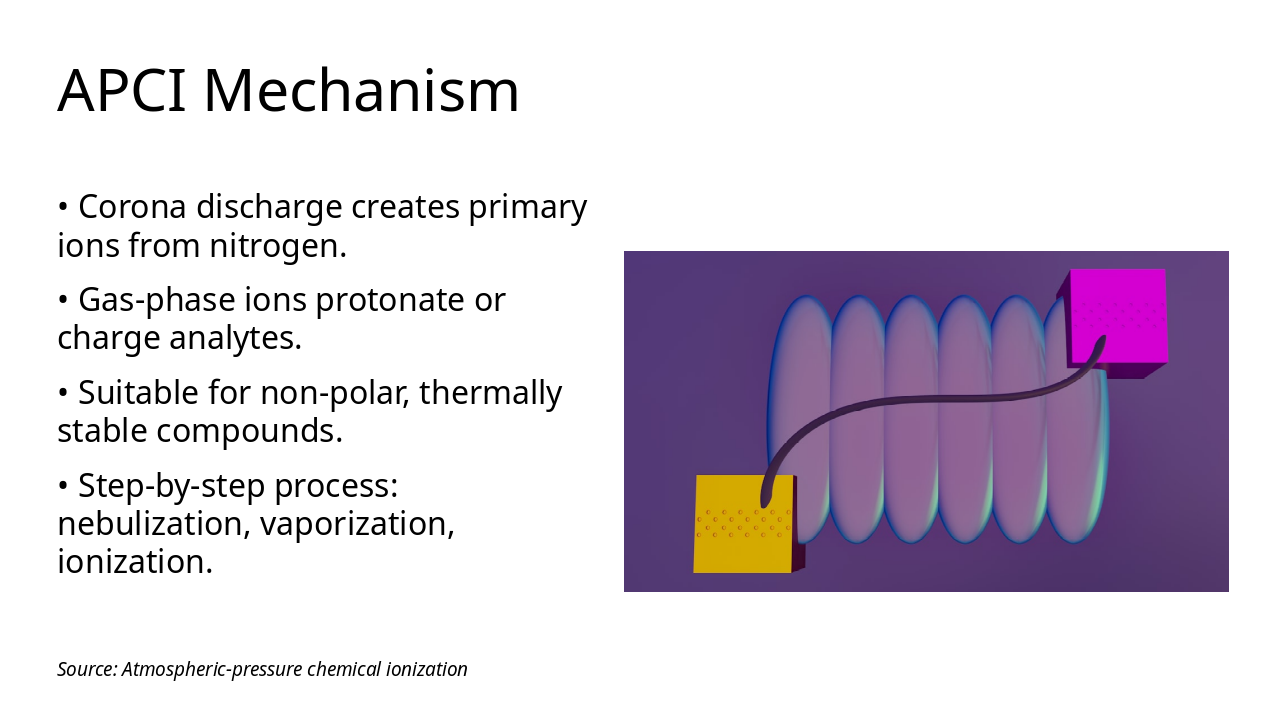

APCI Mechanism

!Image

• Corona discharge creates primary ions from nitrogen.
• Gas-phase ions protonate or charge analytes.
• Suitable for non-polar, thermally stable compounds.
• Step-by-step process: nebulization, vaporization, ionization.

Source: Atmospheric-pressure chemical ionization

The API Techniques Comparison slide highlights key statistics for three ionization methods in mass spectrometry. ESI dominates with 80% usage for polar analytes, APCI offers 1 pg sensitivity and robustness for non-polar compounds, while APPI provides 90% selectivity through photon-based ionization for specific ions.

API Techniques Comparison

• 80%: ESI Dominance

Primary for polar analytes

• 1 pg: APCI Sensitivity

Robust for non-polar compounds

• 90%: APPI Selectivity

Photon-based for specific ions Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

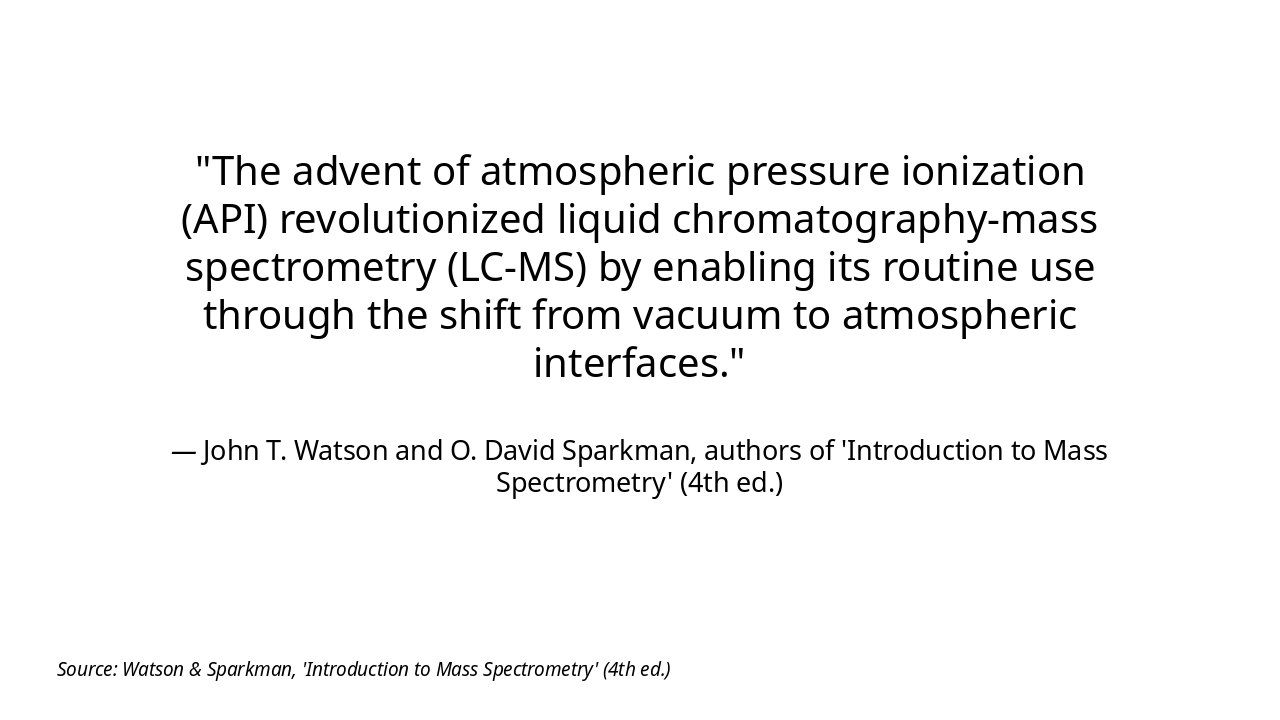

The slide features a key quote on the impact of atmospheric pressure ionization (API) in mass spectrometry. It states that API transformed liquid chromatography-mass spectrometry (LC-MS) by allowing routine use through the transition from vacuum to atmospheric interfaces, as noted by John T. Watson and O. David Sparkman in the 4th edition of Introduction to Mass Spectrometry.

Key Insight on API

> The advent of atmospheric pressure ionization (API) revolutionized liquid chromatography-mass spectrometry (LC-MS) by enabling its routine use through the shift from vacuum to atmospheric interfaces.

— John T. Watson and O. David Sparkman, authors of 'Introduction to Mass Spectrometry' (4th ed.)

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

The slide highlights key points from Lecture 3, emphasizing the selection of ESI, APCI, or APPI ionization methods based on analyte properties, using comparisons to determine the optimal approach, and preparing for chromatographic factors in LC-MS. It closes by stating that mastering ionization unlocks the full potential of LC-MS, with the next topic focusing on chromatographic optimizations.

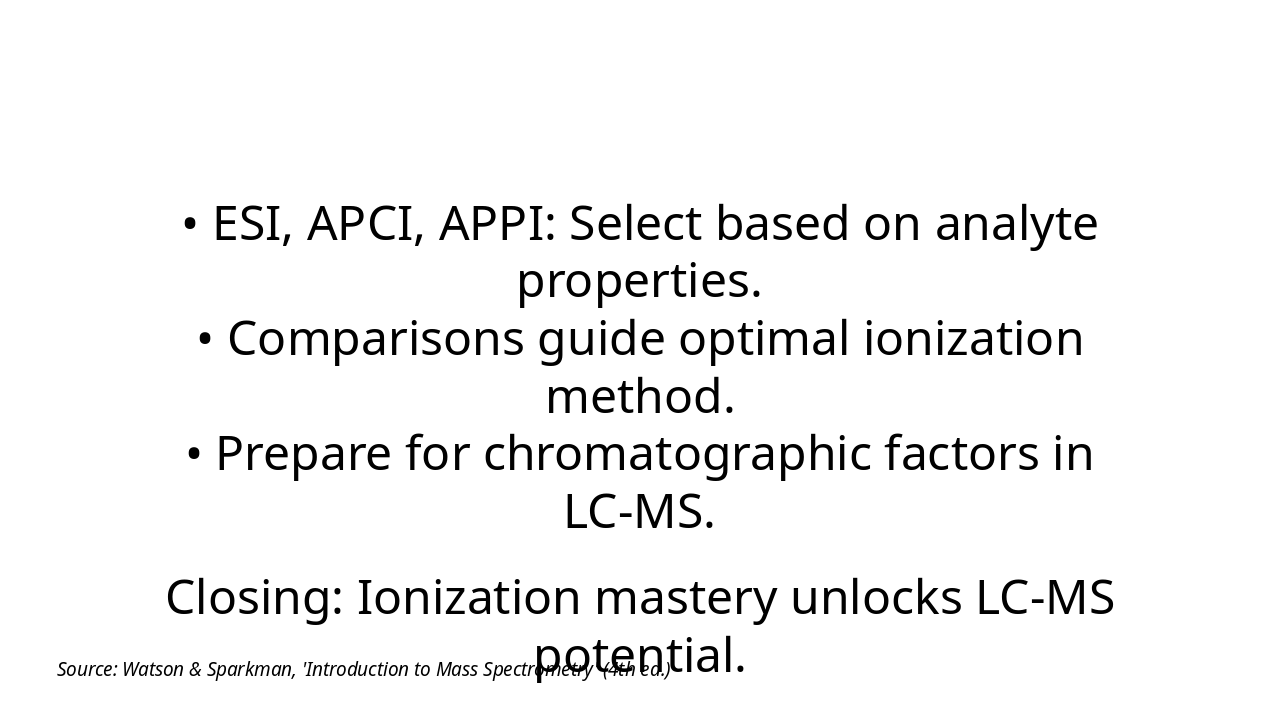

Lecture 3 Key Points

• ESI, APCI, APPI: Select based on analyte properties.

• Comparisons guide optimal ionization method.
• Prepare for chromatographic factors in LC-MS.

Closing: Ionization mastery unlocks LC-MS potential.

Next: Dive into chromatographic optimizations.

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

Lecture 4 focuses on Chromatographic Considerations, highlighting key aspects such as mobile phase effects, ion suppression, and optimization strategies. The slide includes a flowchart to illustrate these concepts in section 04.

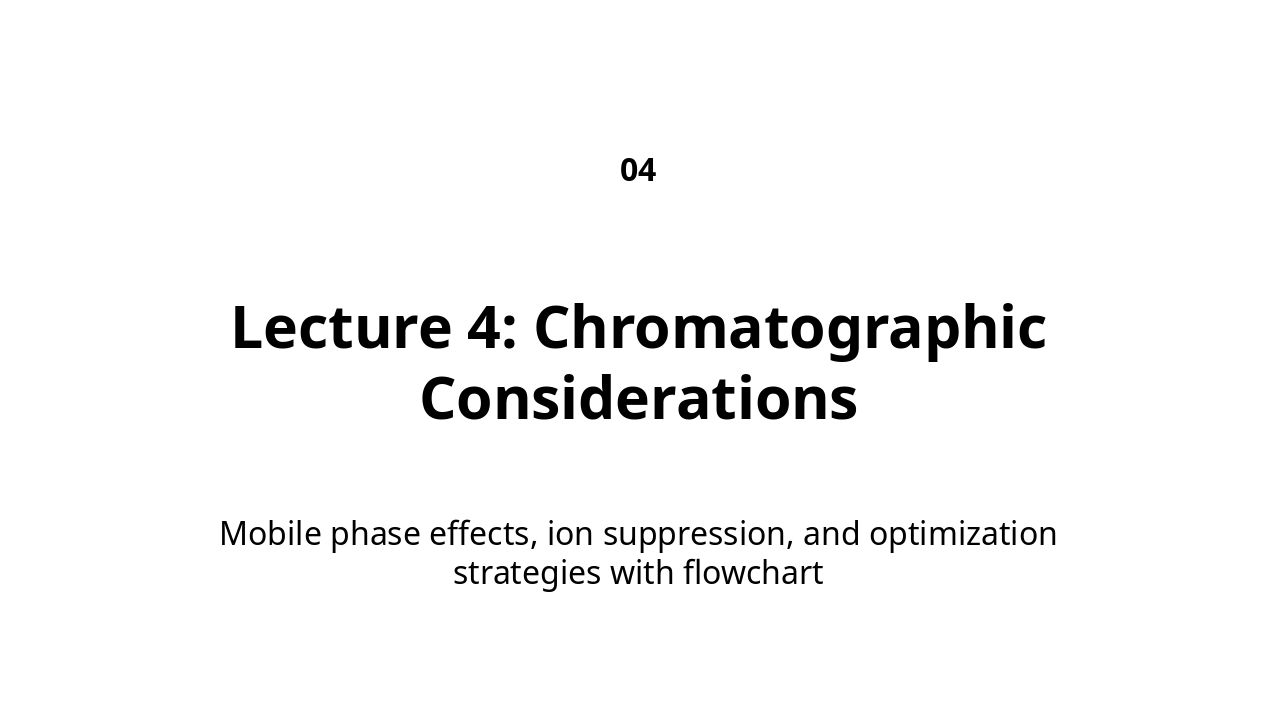

Lecture 4: Chromatographic Considerations

04

Lecture 4: Chromatographic Considerations

Mobile phase effects, ion suppression, and optimization strategies with flowchart

The volatility of the mobile phase influences ionization efficiency in mass spectrometry (MS), while buffers help minimize ion suppression during liquid chromatography-MS (LC-MS) analysis. Gradient elution improves chromatographic separation and peak resolution.

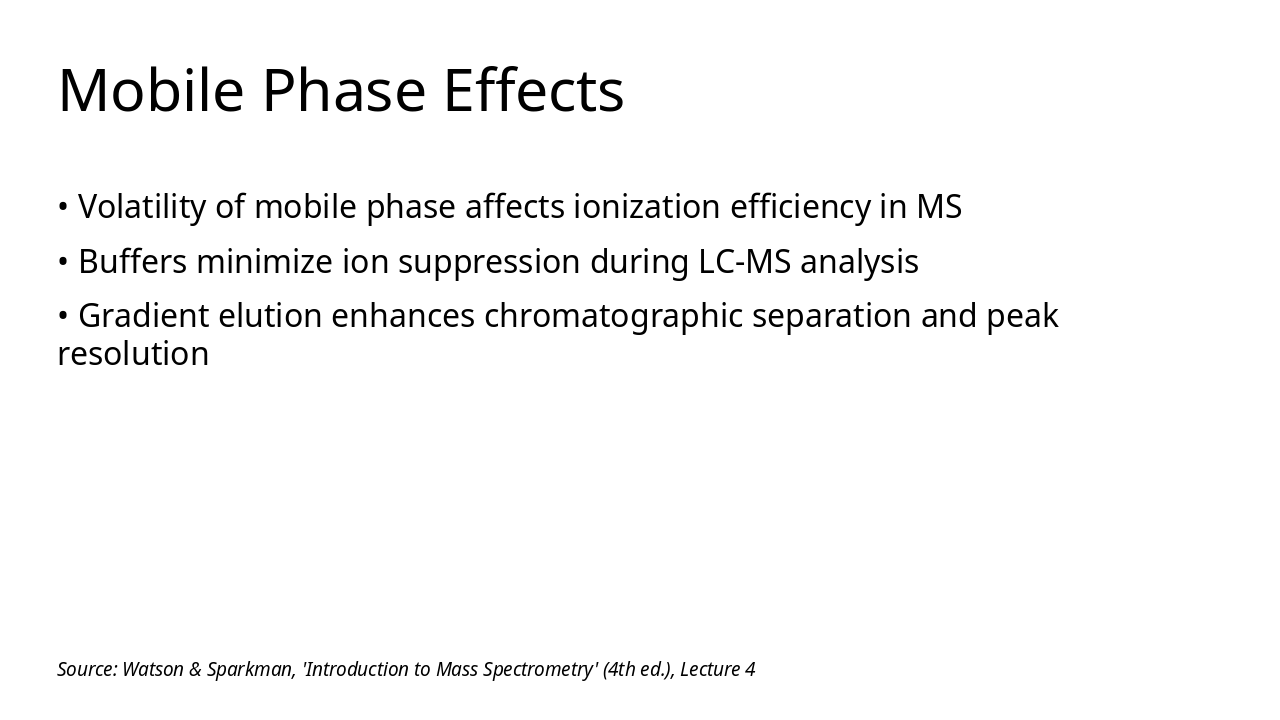

Mobile Phase Effects

• Volatility of mobile phase affects ionization efficiency in MS
• Buffers minimize ion suppression during LC-MS analysis
• Gradient elution enhances chromatographic separation and peak resolution

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.), Lecture 4

The slide illustrates ion suppression in mass spectrometry, where complex matrices reduce analyte signals by competing for ionization sites in electrospray ionization (ESI). A chromatogram example shows a drop in peak height after matrix addition, highlighting the need for optimization to minimize these effects.

Ion Suppression Illustration

!Image

• Ion suppression reduces analyte signal in complex matrices.
• Matrix components compete for ionization sites in ESI.
• Chromatogram shows peak height drop post-matrix addition.
• Optimization needed to minimize suppression effects.

Source: Wikipedia: Matrix effect (analytical chemistry)

The slide's left column, titled "Column Choice and Flow Rates," advises selecting columns based on analyte polarity and resolution requirements, such as C18 for non-polar compounds, optimizing flow rates between 0.2-1 mL/min for balanced speed and peak sharpness, and ensuring compatibility with MS interfaces for stable ionization. The right column, "Avoiding Ion Suppression," recommends diluting samples to reduce matrix interference, employing isotopically labeled internal standards for precise quantification, and validating methods with spiked standards to identify suppression effects.

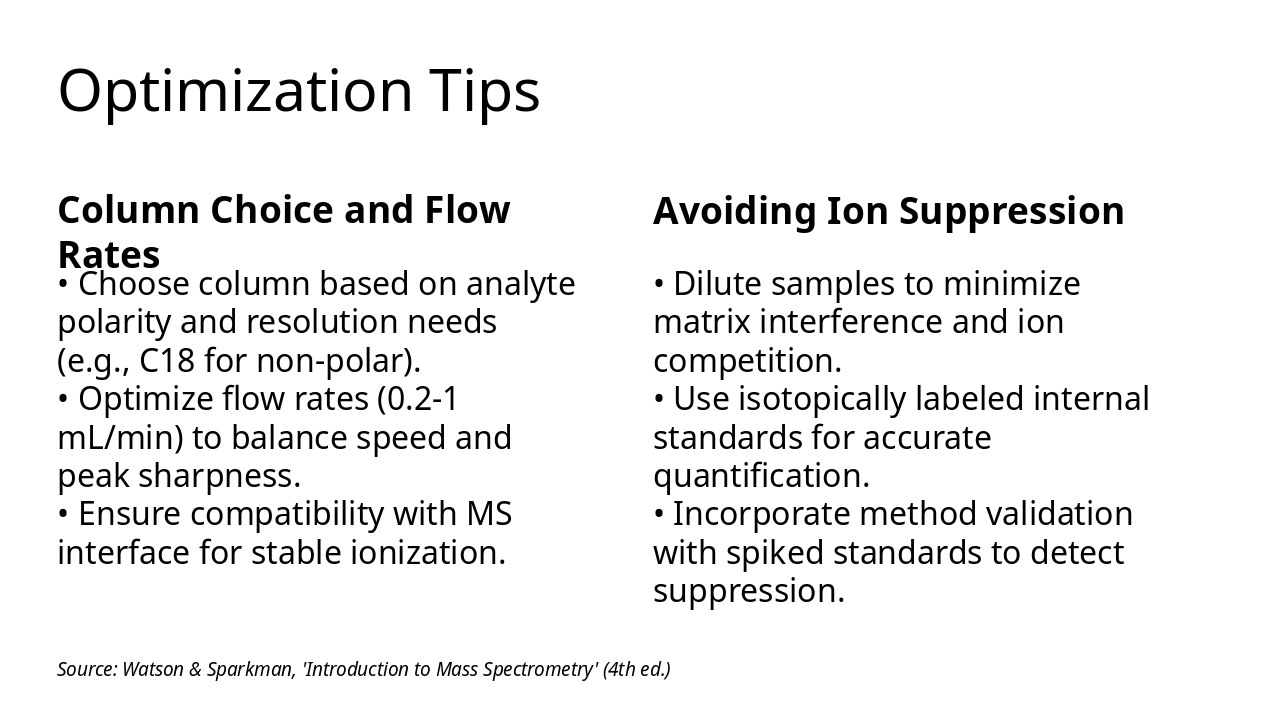

Optimization Tips

| • Choose column based on analyte polarity and resolution needs (e.g., C18 for non-polar).

• Optimize flow rates (0.2-1 mL/min) to balance speed and peak sharpness.
• Ensure compatibility with MS interface for stable ionization. | • Dilute samples to minimize matrix interference and ion competition.
• Use isotopically labeled internal standards for accurate quantification.
• Incorporate method validation with spiked standards to detect suppression. |

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

This slide summarizes Lecture 4 by emphasizing the need to balance liquid chromatography (LC) and mass spectrometry (MS) requirements to achieve reliable data, with optimization playing a key role in ensuring accuracy and reducing problems like ion suppression. It concludes by previewing Lecture 5, which will cover quantitative LC-MS methods.

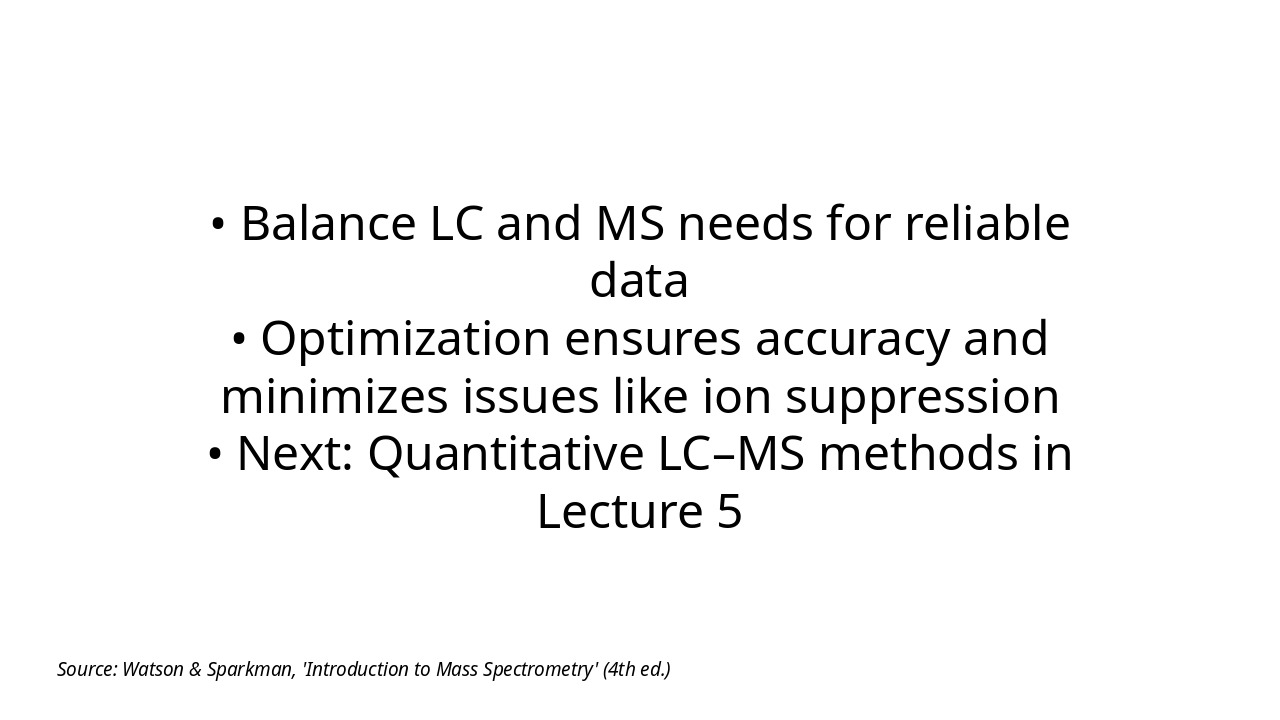

Lecture 4 Summary

• Balance LC and MS needs for reliable data

• Optimization ensures accuracy and minimizes issues like ion suppression
• Next: Quantitative LC–MS methods in Lecture 5

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

Lecture 5 introduces Quantitative LC-MS, a key technique in analytical chemistry for measuring compound concentrations. It covers essential topics including calibration curves, internal standards, data interpretation, and practical example workflows.

Lecture 5: Quantitative LC-MS

05

Lecture 5: Quantitative LC-MS

Calibration curves, internal standards, data interpretation, example workflows

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

The slide on Calibration Methods outlines four key approaches: external standard, which is simple yet sensitive to matrix effects; internal standard using deuterated analogs to correct for variability; standard addition, ideal for complex samples; and calibration curve, which plots response against concentration. These methods provide options for accurate quantitative analysis in various analytical scenarios.

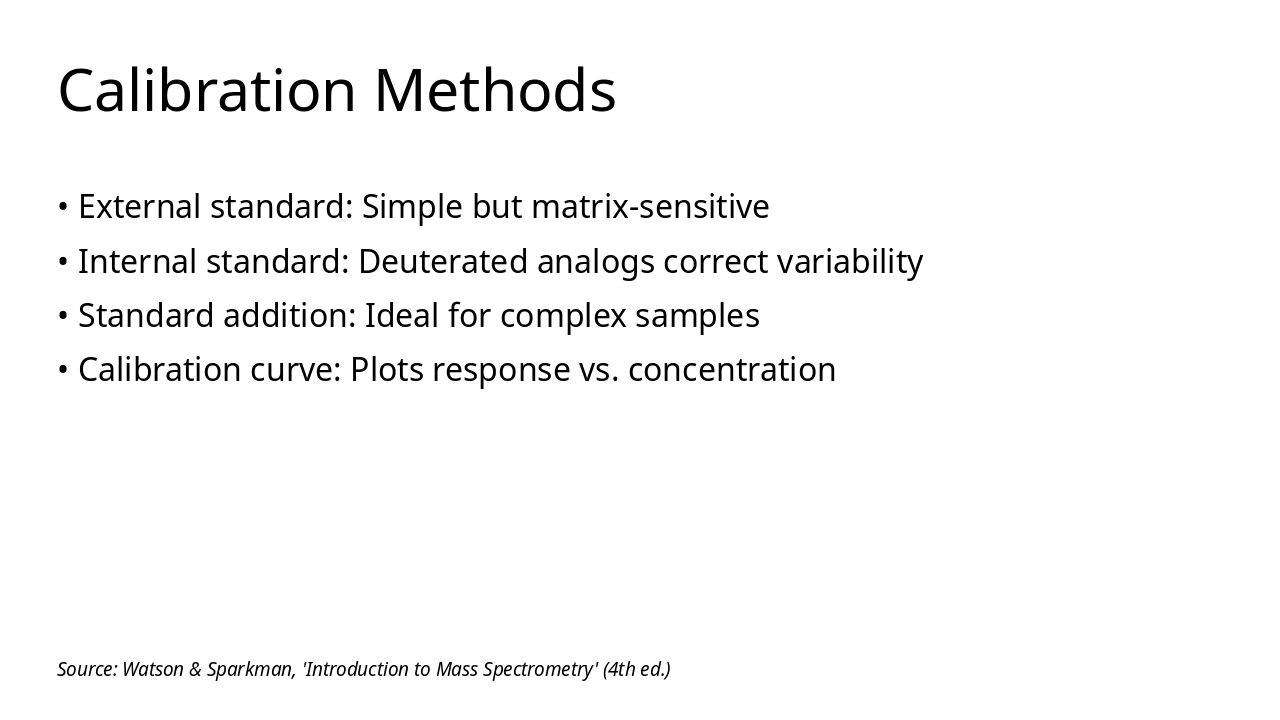

Calibration Methods

• External standard: Simple but matrix-sensitive
• Internal standard: Deuterated analogs correct variability
• Standard addition: Ideal for complex samples
• Calibration curve: Plots response vs. concentration

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

Internal standards help compensate for variability in sample preparation and improve the precision and reliability of quantitative analysis in techniques like LC-MS. Isotopically labeled internal standards mimic the behavior of analytes, allowing accurate quantification through peak area ratios.

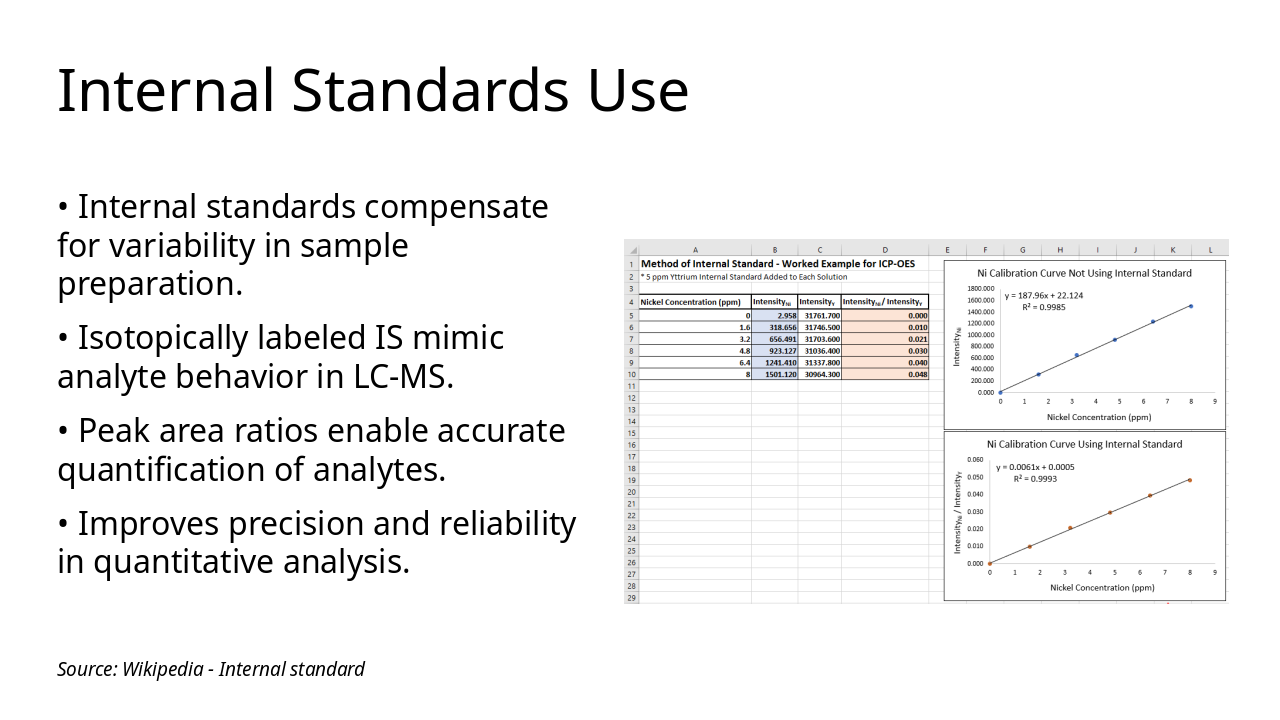

Internal Standards Use

!Image

• Internal standards compensate for variability in sample preparation.
• Isotopically labeled IS mimic analyte behavior in LC-MS.
• Peak area ratios enable accurate quantification of analytes.
• Improves precision and reliability in quantitative analysis.

Source: Wikipedia - Internal standard

The slide presents key data interpretation metrics for analytical assays, including a limit of detection at 0.1 ng/mL for typical analytes and a limit of quantification at 0.5 ng/mL as the standard in assays. It also highlights a high linearity R² value of 0.99 for calibration correlation and precision with less than 5% coefficient of variation, indicating acceptable variability in replicates.

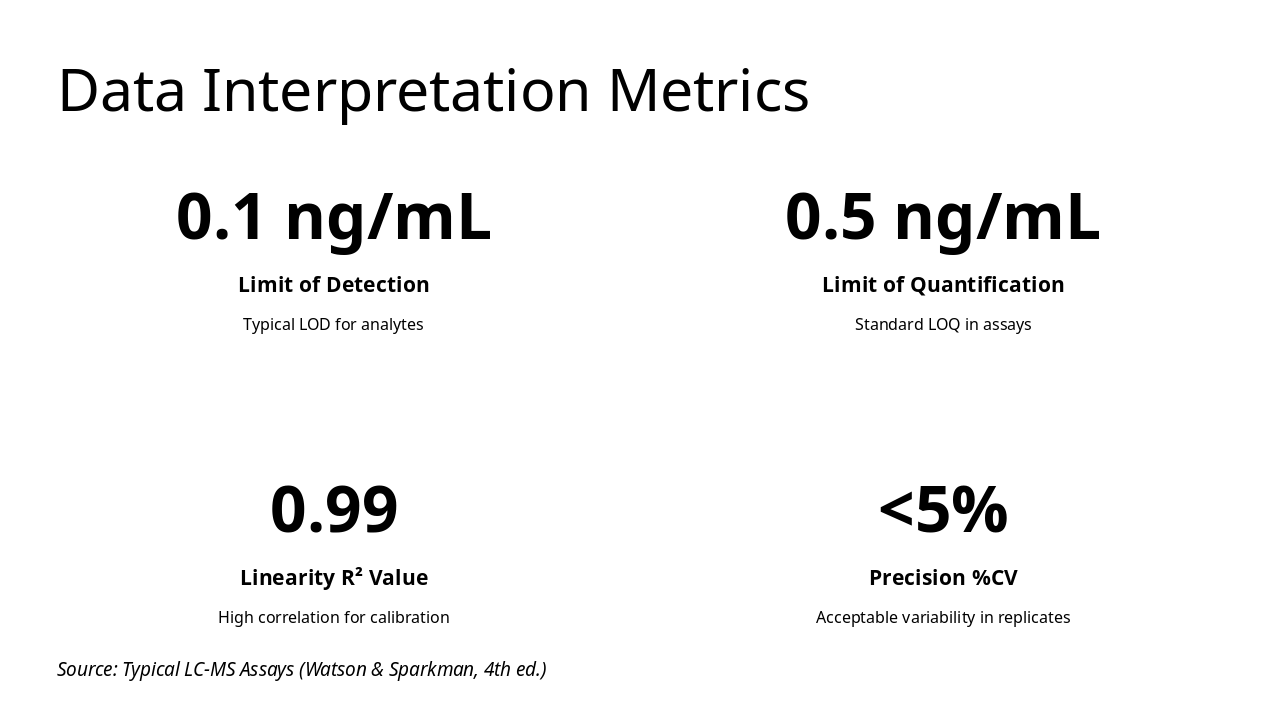

Data Interpretation Metrics

• 0.1 ng/mL: Limit of Detection

Typical LOD for analytes

• 0.5 ng/mL: Limit of Quantification

Standard LOQ in assays

• 0.99: Linearity R² Value

High correlation for calibration

• <5%: Precision %CV

Acceptable variability in replicates Source: Typical LC-MS Assays (Watson & Sparkman, 4th ed.)

The slide emphasizes robust quantification in LC-MS through the use of standards and calibration, urging viewers to interpret results with statistical considerations in mind. It teases upcoming applications and poses the question of whether one has mastered LC-MS quantification for real-world use.

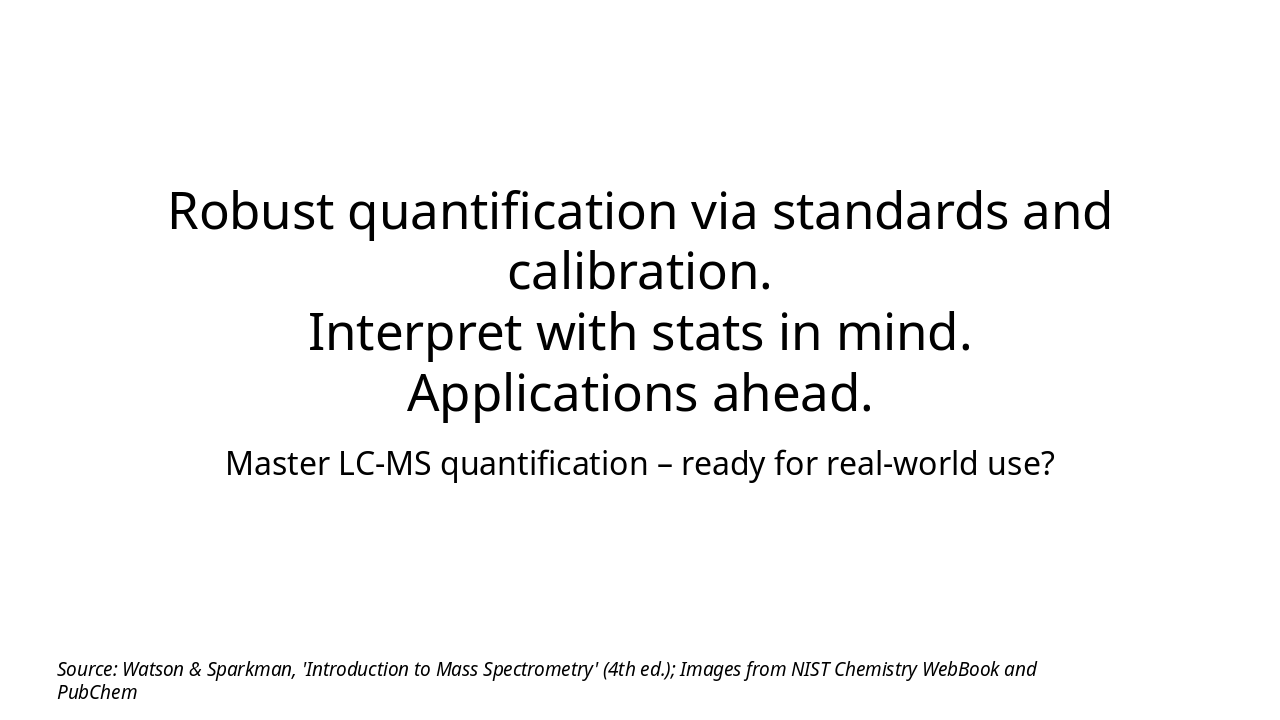

Lecture 5 Essentials

Robust quantification via standards and calibration. Interpret with stats in mind. Applications ahead.

Master LC-MS quantification – ready for real-world use?

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.); Images from NIST Chemistry WebBook and PubChem

This section header slide introduces Lecture 6, titled "Applications and Future Trends," marking it as the sixth segment of the presentation. It highlights key topics including drug discovery, proteomics, environmental analysis, case studies, and emerging trends in the field.

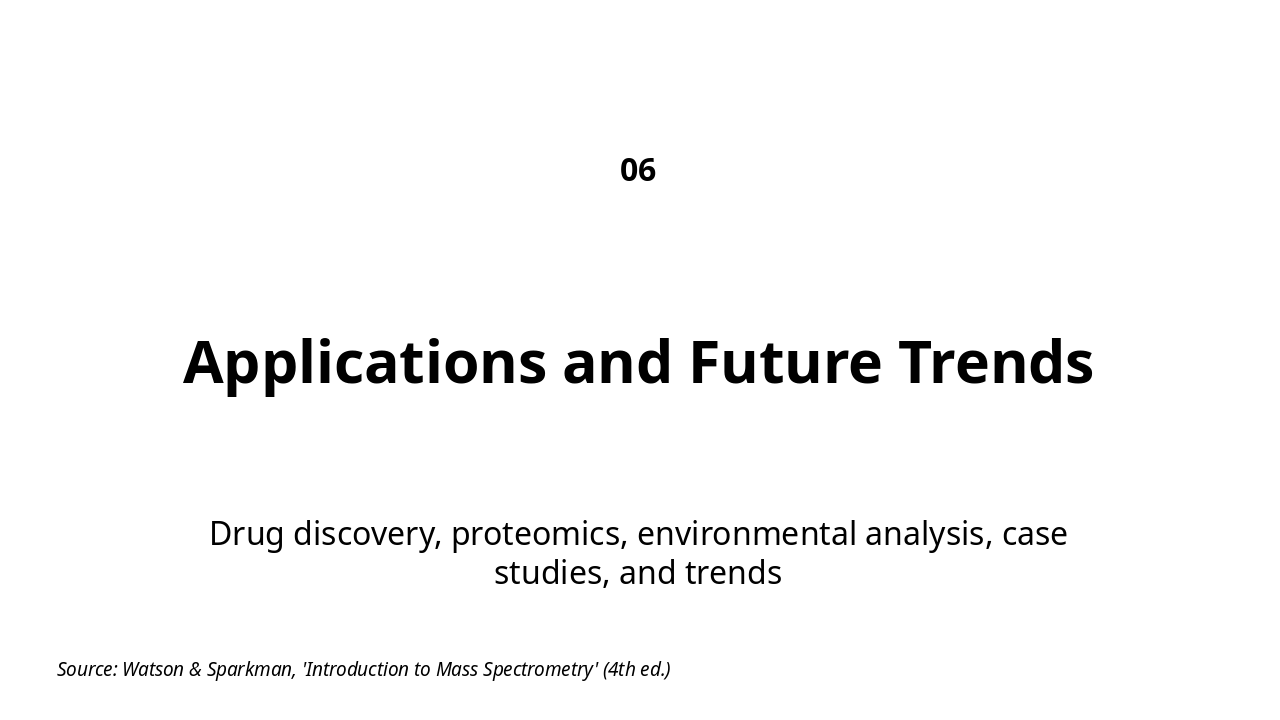

Lecture 6: Applications and Future Trends

06

Applications and Future Trends

Drug discovery, proteomics, environmental analysis, case studies, and trends

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)

The slide on Drug Discovery Applications outlines key uses in pharmaceutical research, including PK/PD studies for understanding drug pharmacokinetics and pharmacodynamics, as well as metabolite identification. It also covers high-throughput screening to identify lead compounds and ADME profiling to optimize drug candidates for better absorption, distribution, metabolism, and excretion.

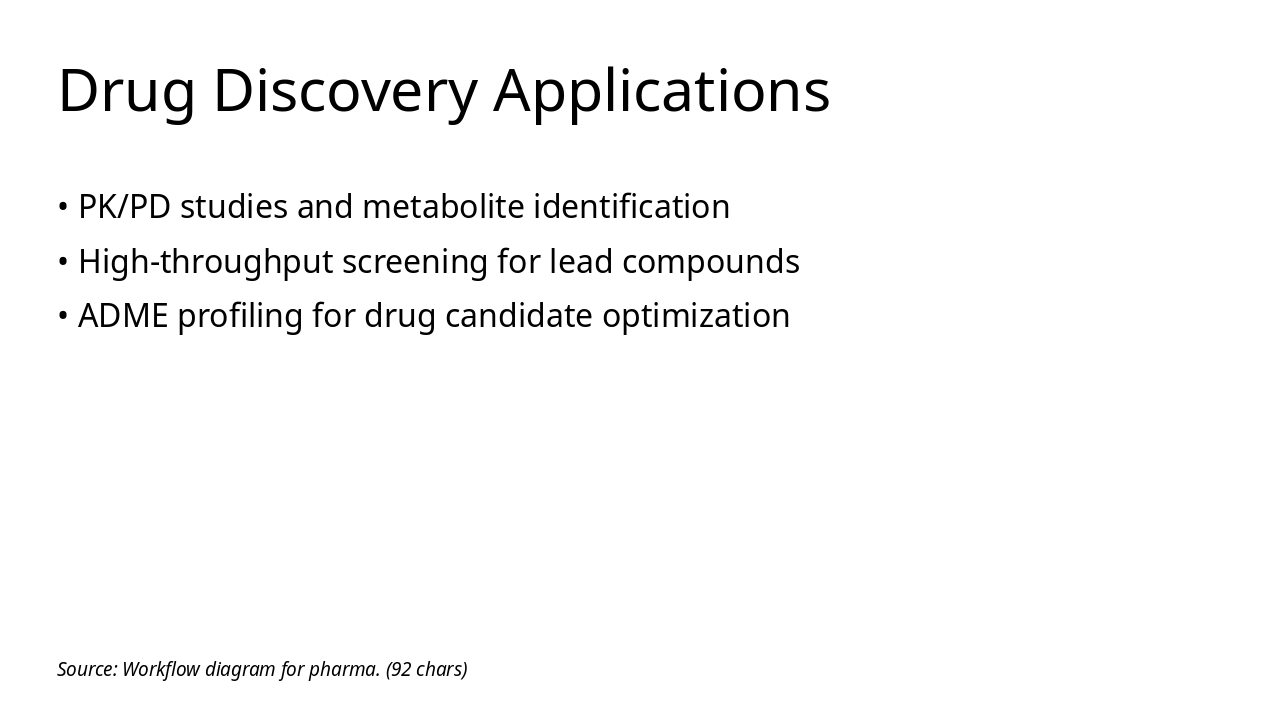

Drug Discovery Applications

• PK/PD studies and metabolite identification
• High-throughput screening for lead compounds
• ADME profiling for drug candidate optimization

Source: Workflow diagram for pharma. (92 chars)

Liquid Chromatography-Mass Spectrometry (LC-MS) in proteomics identifies peptides through mass-to-charge (m/z) peaks in spectra, with labeled fragments supporting de novo protein sequencing. Bottom-up approaches digest proteins for analysis, and high-resolution spectra enhance identification accuracy.

Proteomics in LC-MS

!Image

• LC-MS identifies peptides by m/z peaks in spectra.
• Labeled fragments enable de novo protein sequencing.
• Bottom-up proteomics digests proteins for analysis.
• High-resolution spectra improve identification accuracy.

Source: Web-sourced proteomics example

The slide on Environmental Analysis highlights the use of LC-MS for detecting pesticides like glyphosate in agricultural runoff, organic pollutants such as PCBs in sediments, and pharmaceuticals in wastewater to support monitoring and remediation efforts. It also addresses challenges in water and soil monitoring, including ion suppression from complex matrices that requires sample preparation, the need for trace-level sensitivity for pollutants like PFAS, and robust validation to handle sample variability.

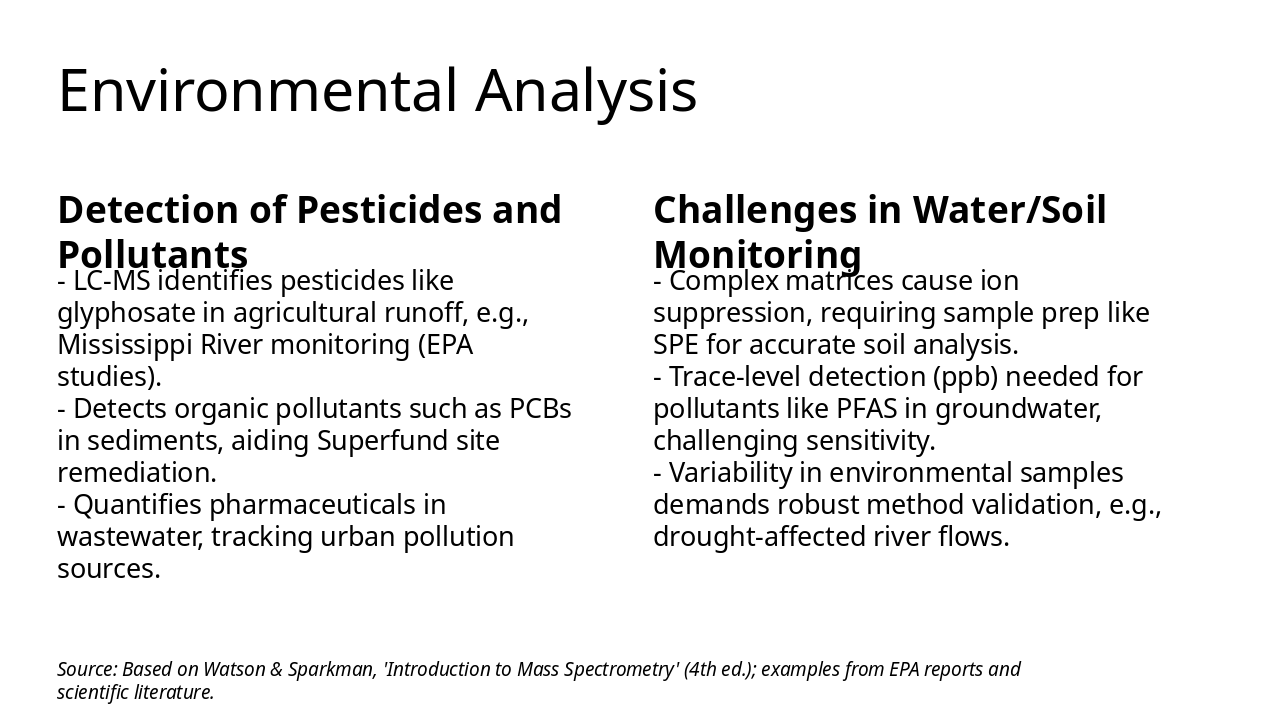

Environmental Analysis

| - LC-MS identifies pesticides like glyphosate in agricultural runoff, e.g., Mississippi River monitoring (EPA studies).

• Detects organic pollutants such as PCBs in sediments, aiding Superfund site remediation.
• Quantifies pharmaceuticals in wastewater, tracking urban pollution sources. | - Complex matrices cause ion suppression, requiring sample prep like SPE for accurate soil analysis.
• Trace-level detection (ppb) needed for pollutants like PFAS in groundwater, challenging sensitivity.
• Variability in environmental samples demands robust method validation, e.g., drought-affected river flows. |

Source: Based on Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.); examples from EPA reports and scientific literature.

Future trends in LC-MS technology include miniaturized systems for portable, high-sensitivity analysis and AI-driven tools that enhance data accuracy and speed up interpretation. Additionally, hyphenated techniques integrate multiple methods to handle complex samples, while sustainable approaches minimize solvent use and environmental impact.

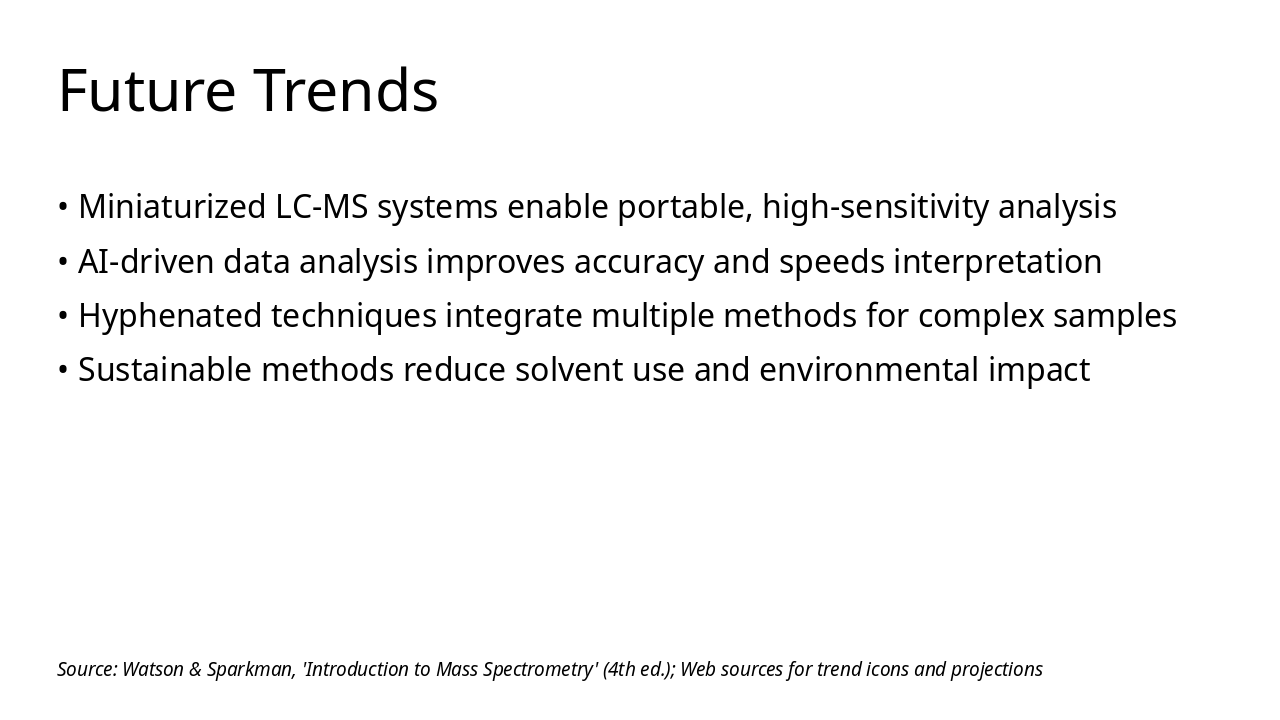

Future Trends

• Miniaturized LC-MS systems enable portable, high-sensitivity analysis
• AI-driven data analysis improves accuracy and speeds interpretation
• Hyphenated techniques integrate multiple methods for complex samples
• Sustainable methods reduce solvent use and environmental impact

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.); Web sources for trend icons and projections

The slide recaps the course's journey from LC-MS fundamentals to advanced applications in drug discovery, proteomics, and environmental analysis, emphasizing how this knowledge equips learners to address real-world analytical challenges with cutting-edge techniques. It closes with a motivational message on mastering LC-MS for innovation, a call to review resources, join Q&A, and apply insights in research, followed by thanks and an invitation for questions.

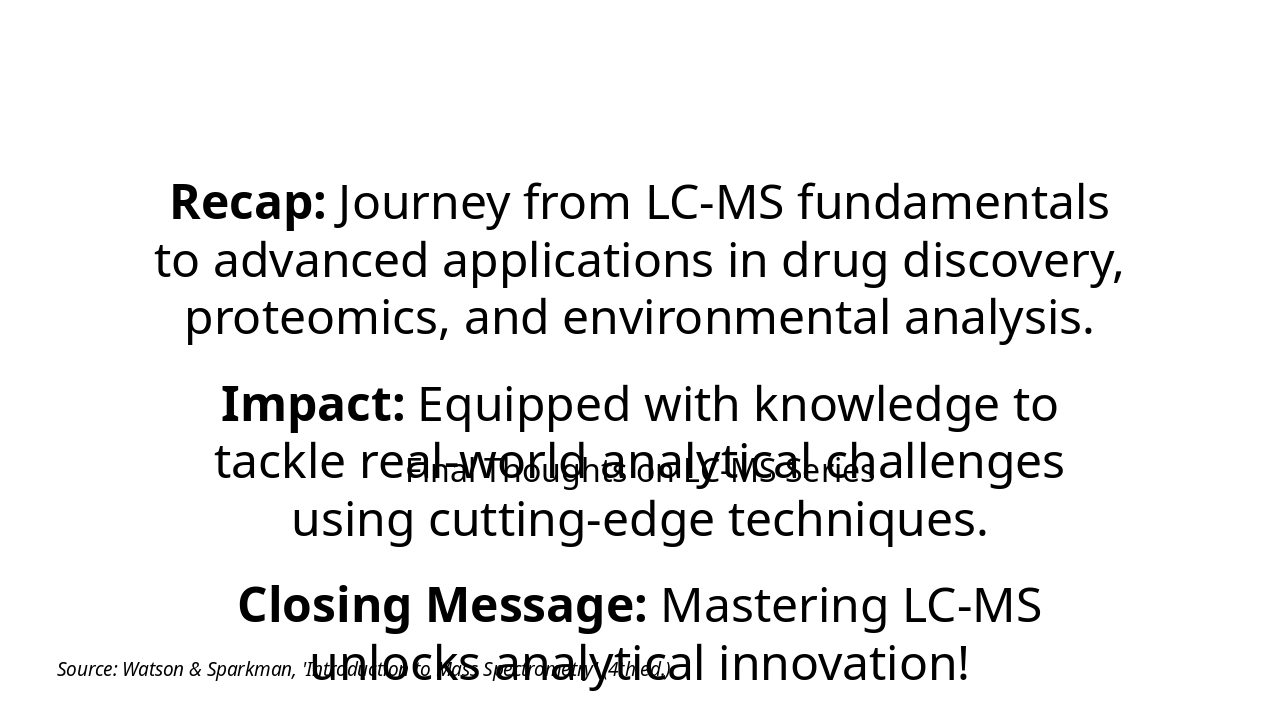

Course Conclusion

**Recap: Journey from LC-MS fundamentals to advanced applications in drug discovery, proteomics, and environmental analysis.

Impact: Equipped with knowledge to tackle real-world analytical challenges using cutting-edge techniques.

Closing Message: Mastering LC-MS unlocks analytical innovation!

Call-to-Action: Review resources, join Q&A, and apply these insights in your research.

Thank you! Questions?**

Final Thoughts on LC-MS Series

Source: Watson & Sparkman, 'Introduction to Mass Spectrometry' (4th ed.)
